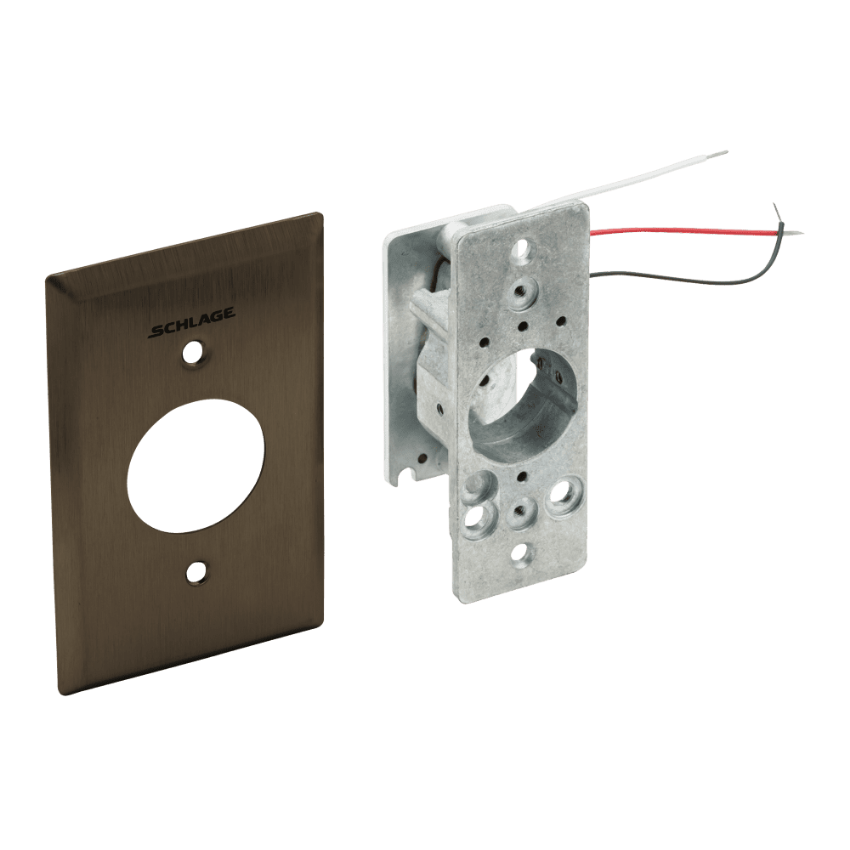

Schlage 653-05 SPDT Momentary Keyswitch SF-613 Oil Rubbed Bronze

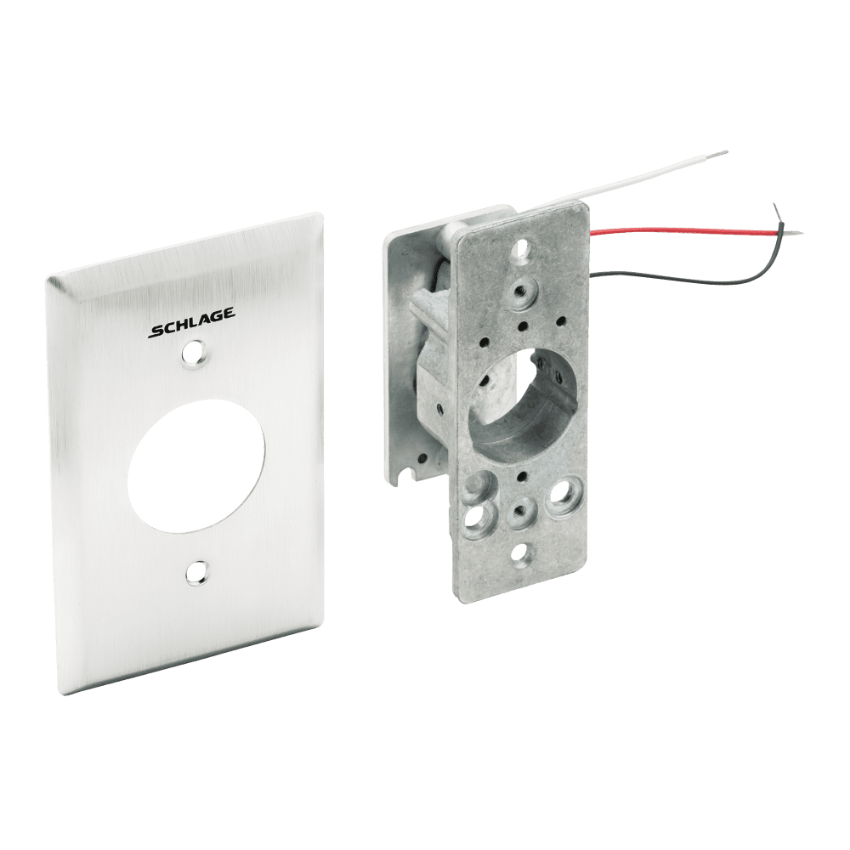

Schlage 653-05 SPDT Momentary Keyswitch SF-625 Bright Chrome
Schlage 653-05 SPDT Momentary Keyswitch SF-626 Satin Chrome

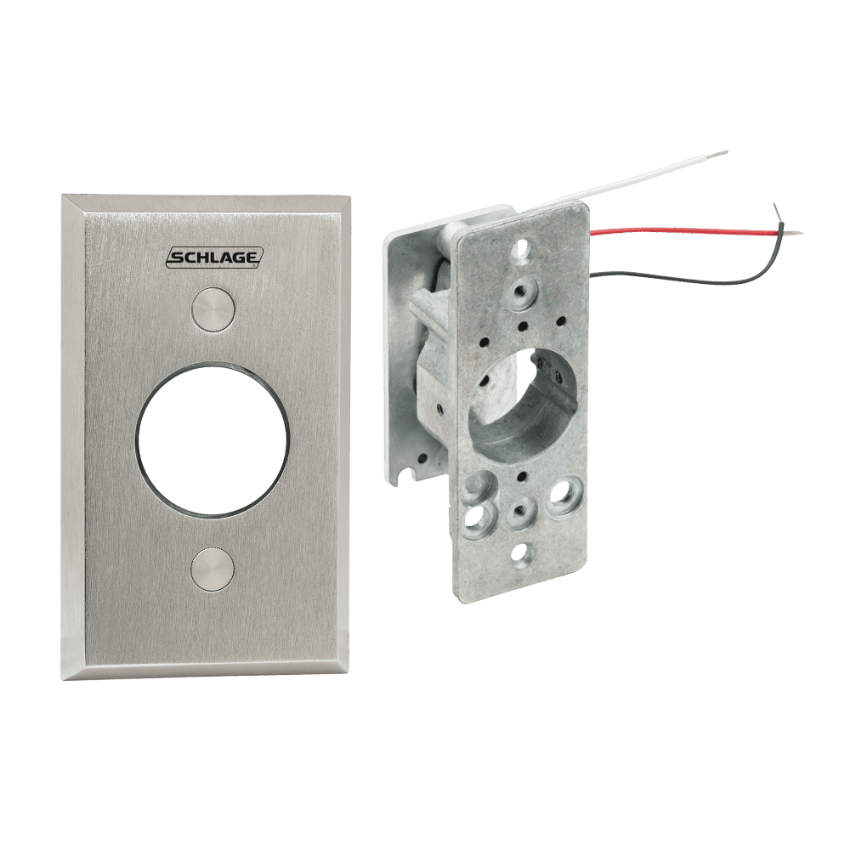

Schlage 653-05 SPDT Momentary Keyswitch ATS Anti-Tamper Switch

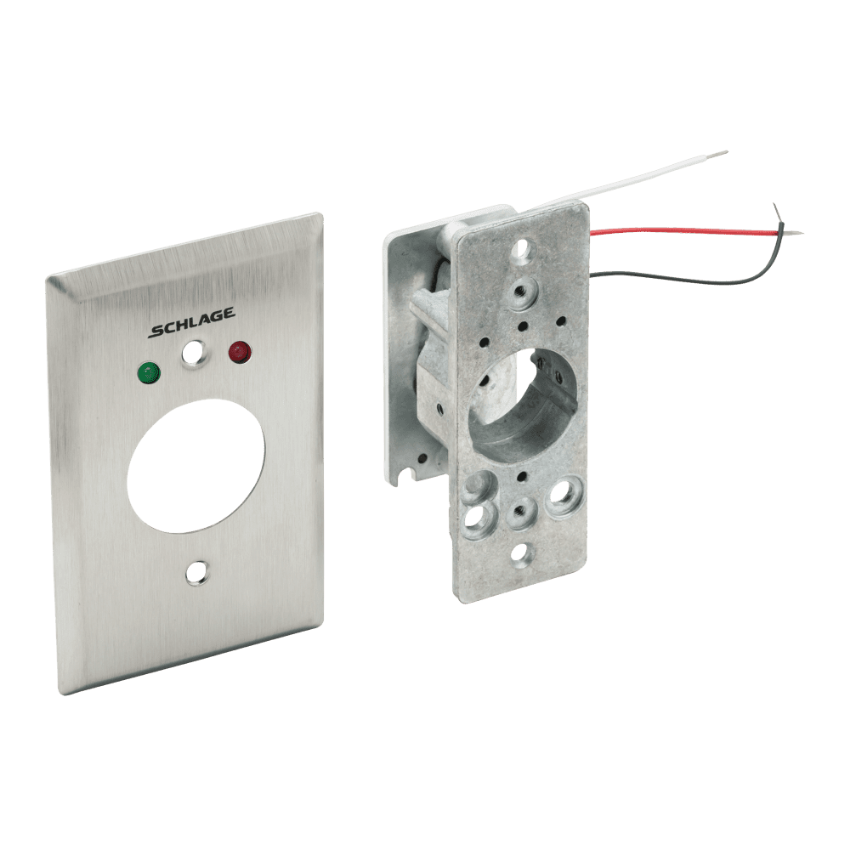

Schlage 653-05 SPDT Momentary Keyswitch with L2 LEDs

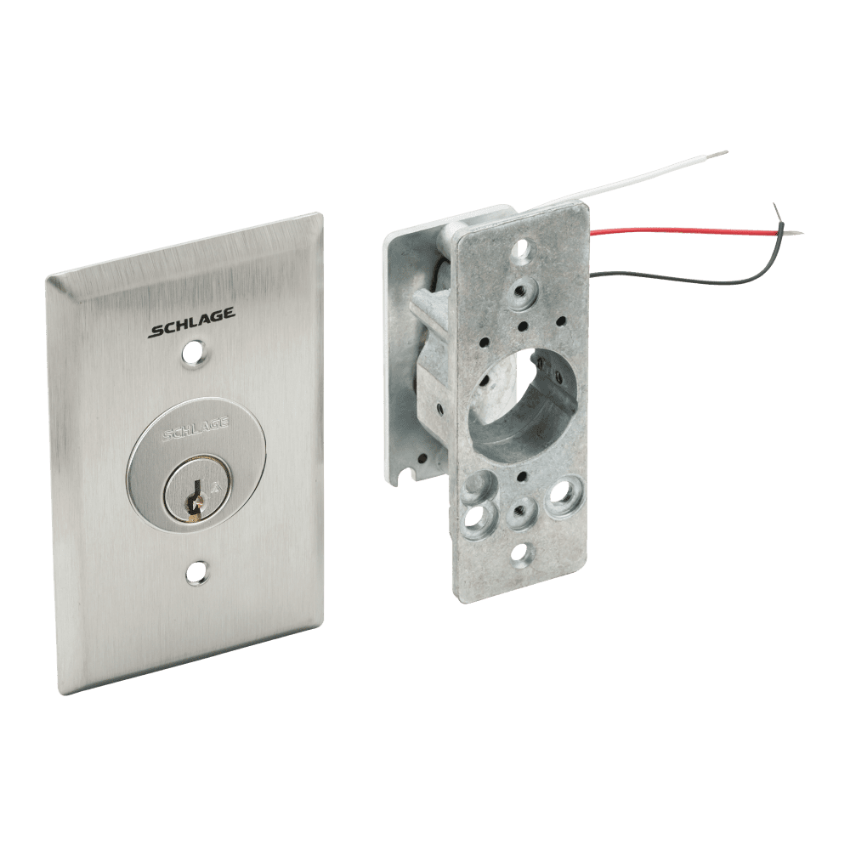

Schlage 653-05 SPDT momentary keyswitch with cylinder
Dynamic Image
Schlage 653-05 SPDT momentary keyswitch
Schlage 653-05 SPDT Momentary Keyswitch SF-613 Oil Rubbed Bronze
Schlage 653-05 SPDT Momentary Keyswitch SF-625 Bright Chrome
Schlage 653-05 SPDT Momentary Keyswitch SF-626 Satin Chrome
Schlage 653-05 SPDT Momentary Keyswitch ATS Anti-Tamper Switch
Schlage 653-05 SPDT Momentary Keyswitch with L2 LEDs
Schlage 653-05 SPDT momentary keyswitch with cylinder

Schlage

SKU: 653-05

Schlage 653-05 SPDT Momentary Keyswitch

In stock

The Schlage 653-05 is a 650 Series SPDT momentary single-direction keyswitch for commercial electronic access control applications.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

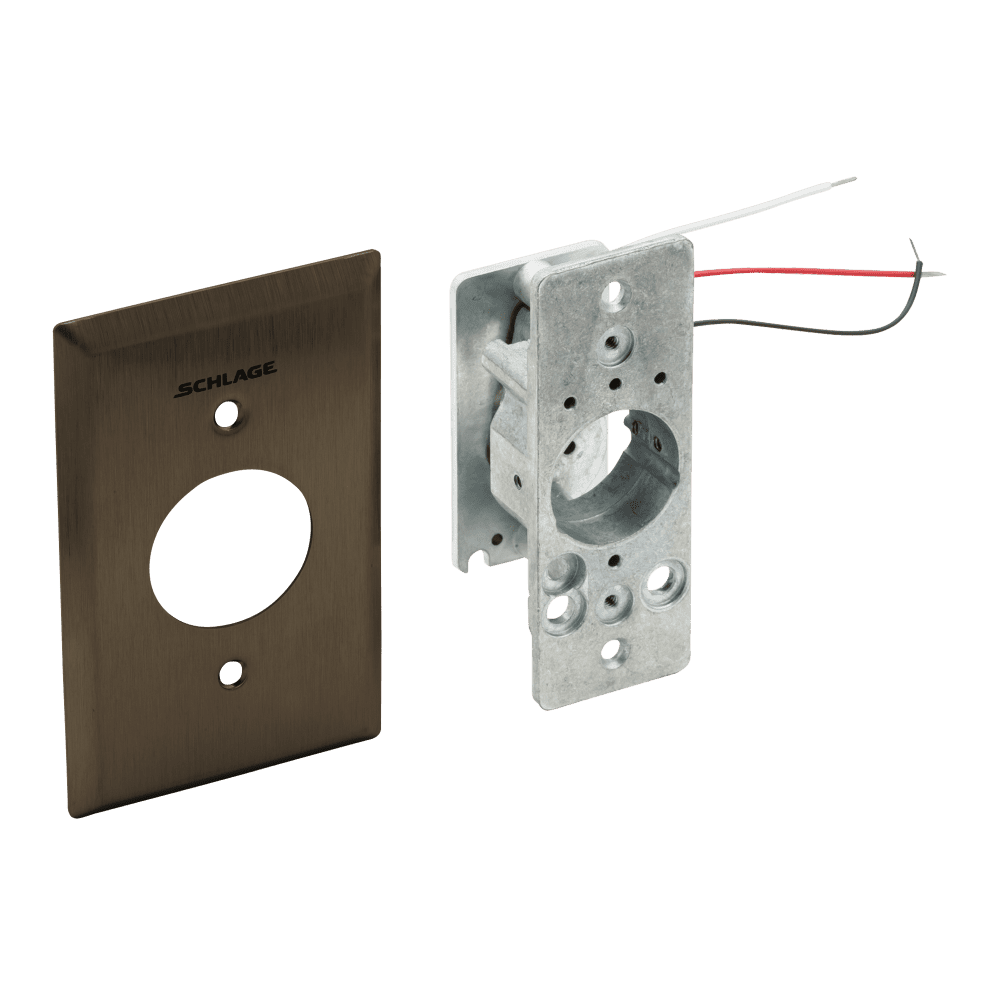

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

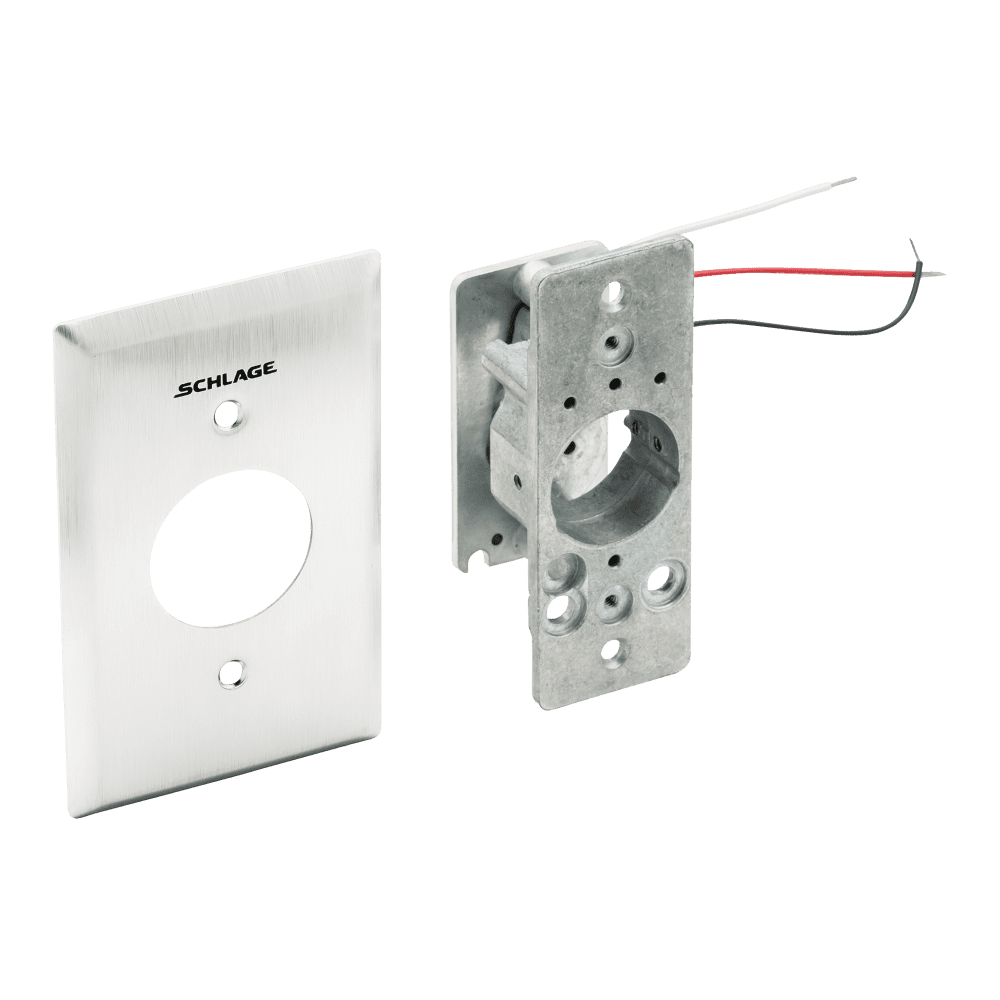

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

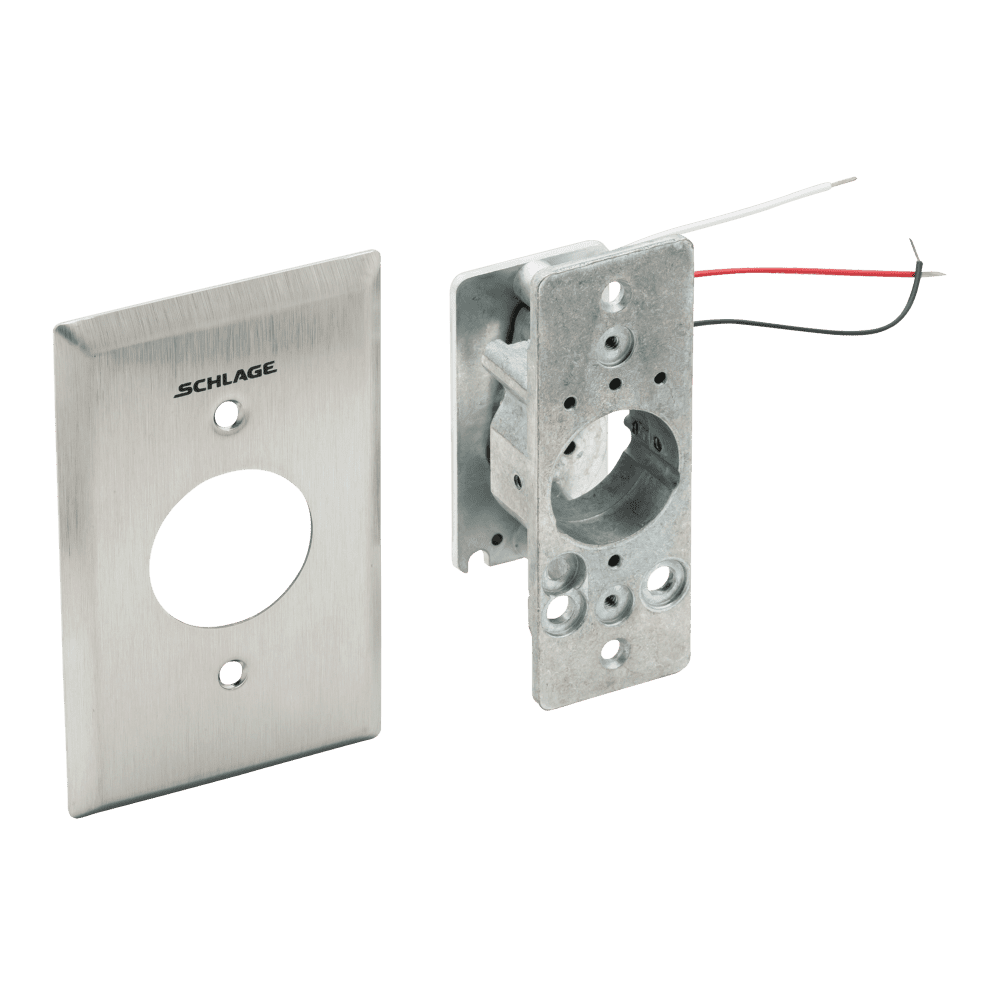

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

This keyswitch provides momentary switching action for applications requiring a single-direction SPDT configuration. The 653-05 uses Schlage's magnetic-spring design and is configured for clockwise operation. It is part of the 650 Series and is designed for use with compatible mortise cylinders having a straight-type cam.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-05
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Momentary Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: SPDT maintained single-direction switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$406.00
$284.20
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-05?
The Schlage 653-05 is a 650 Series SPDT momentary single-direction keyswitch.
What type of switch contacts does the 653-05 use?
The standard 650 Series keyswitch uses SPDT contacts rated at 5 amps at 30 VDC.
What cylinders can the 653-05 use?
The 650 Series accepts 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders with a straight-type cam.
Does the 653-05 include a cylinder?
The standard keyswitch is shipped without a cylinder.
Is Schlage 653-05 an OEM replacement part?
Yes. Schlage 653-05 is an OEM Schlage part.
