Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch

Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile Oil Rubbed Bronze
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile Satin Chrome
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile Bright Chrome
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile with Cylinder
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile with Red and Green LEDs
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile with Anti-Tamper Switch
Dynamic Image
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile

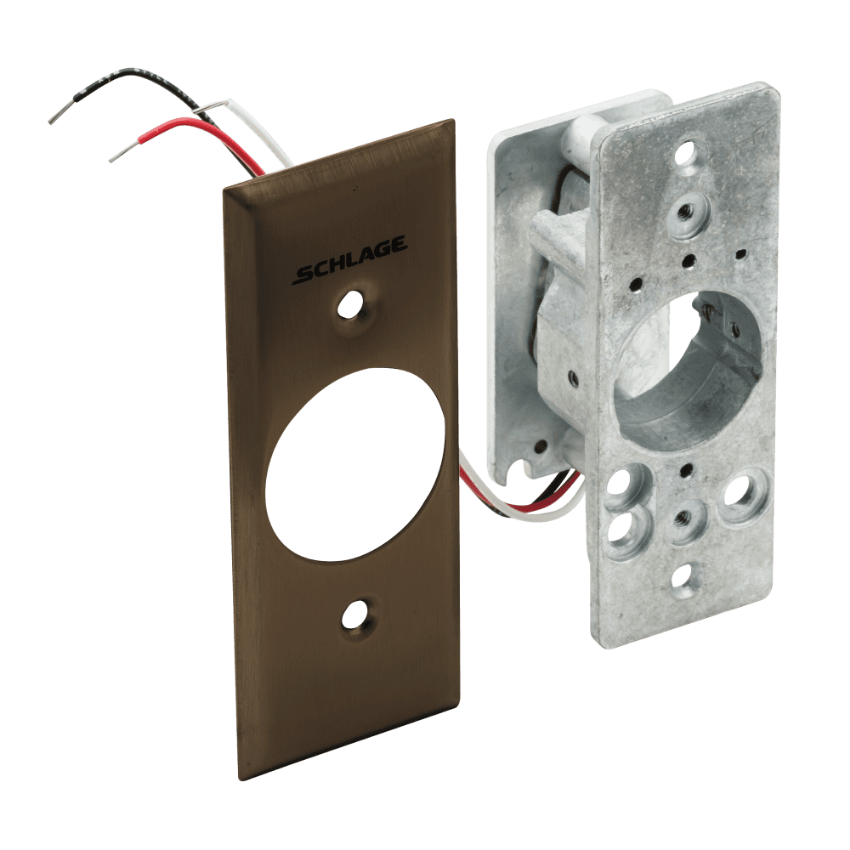

Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile Oil Rubbed Bronze
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile Satin Chrome
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile Bright Chrome

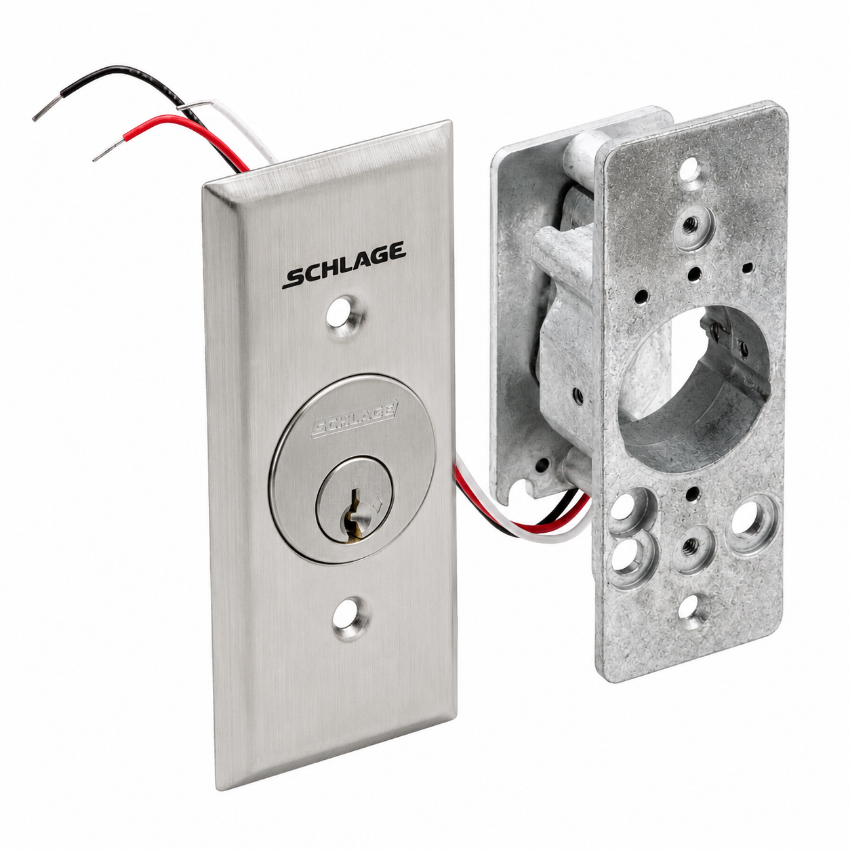

Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile with Cylinder
Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile with Red and Green LEDs

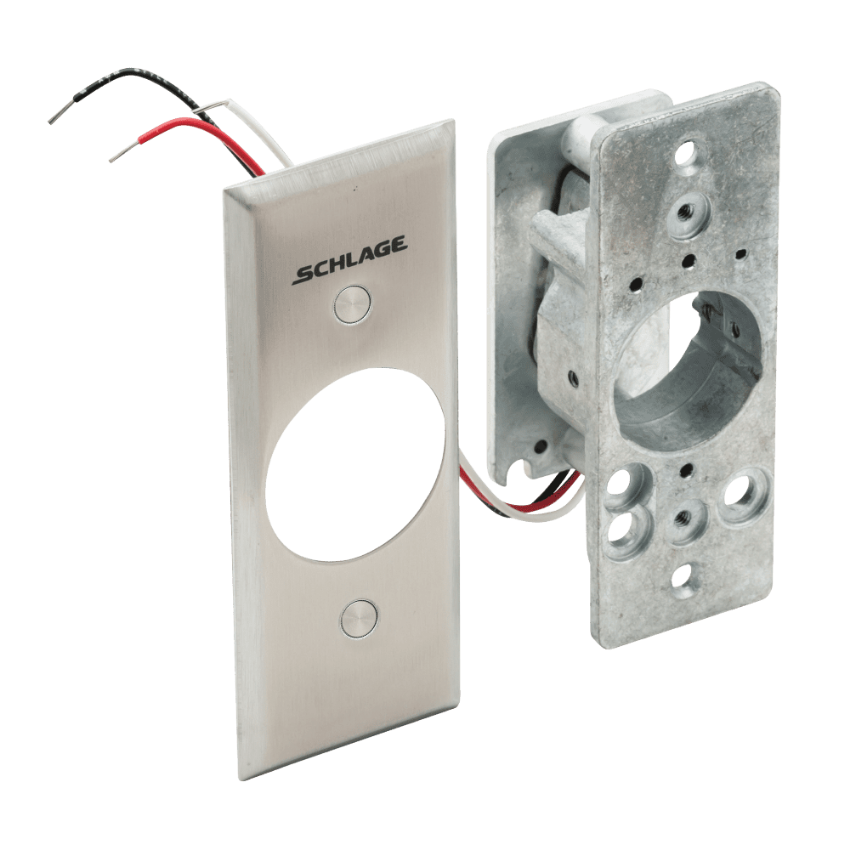

Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch, Narrow Stile with Anti-Tamper Switch

Schlage

SKU: 653-0505-NS

Schlage 653-0505-NS SPDT Momentary Bi-Directional Keyswitch

Available (3 - 4 Weeks)

The Schlage 653-0505-NS is a 650 Series SPDT momentary bi-directional keyswitch with a narrow-stile stainless steel plate for keyed switching applications.
*

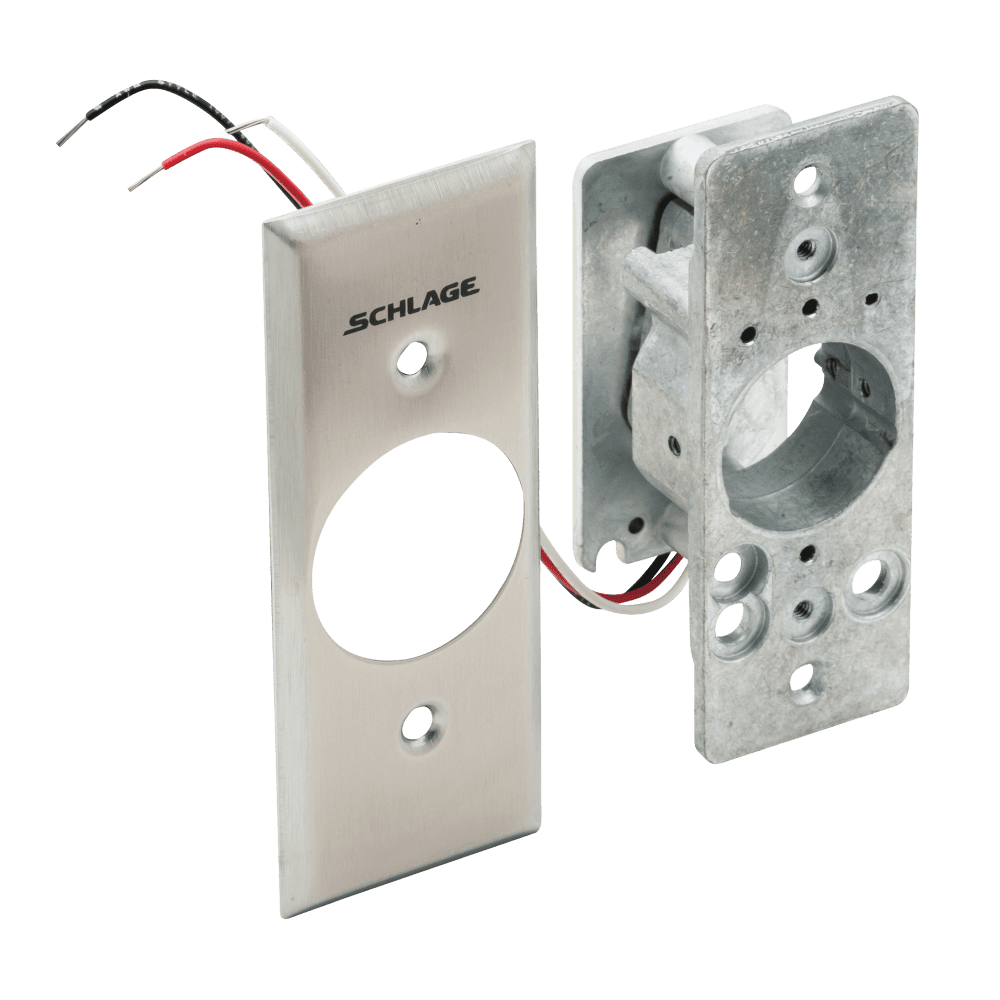

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

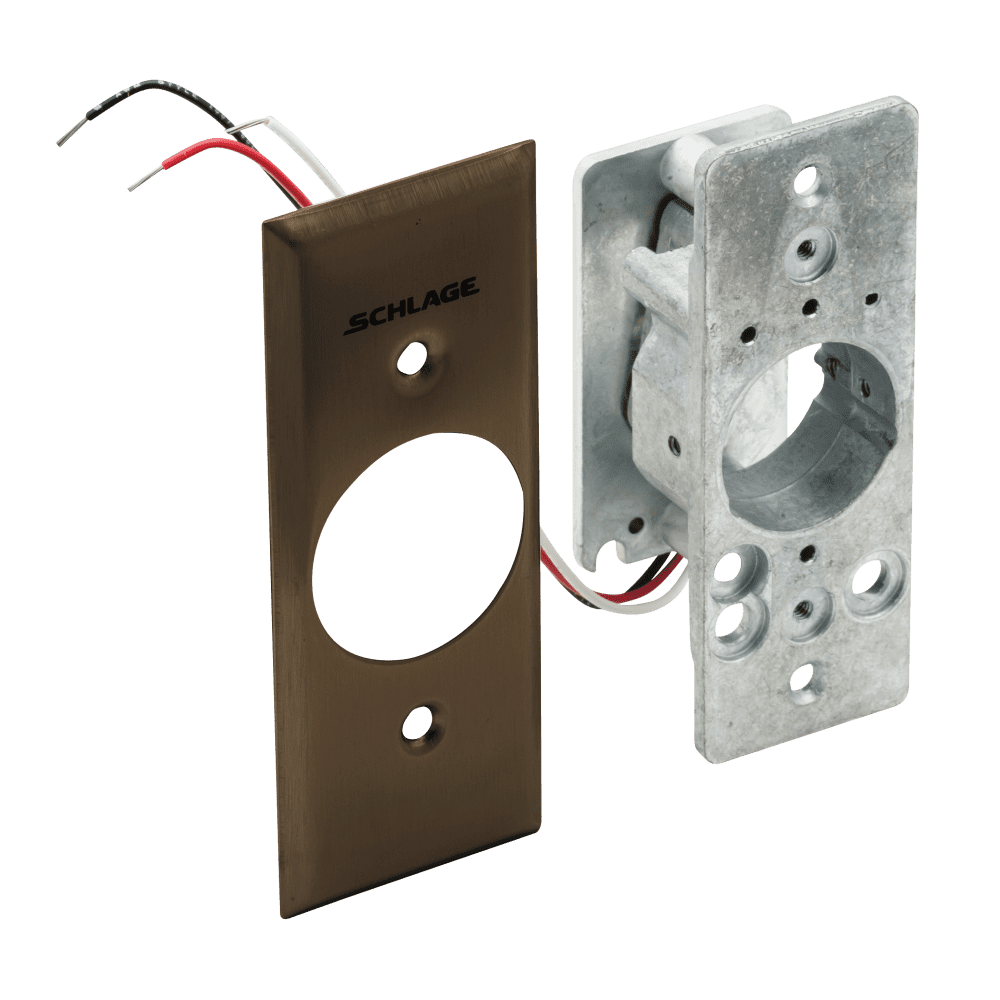

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

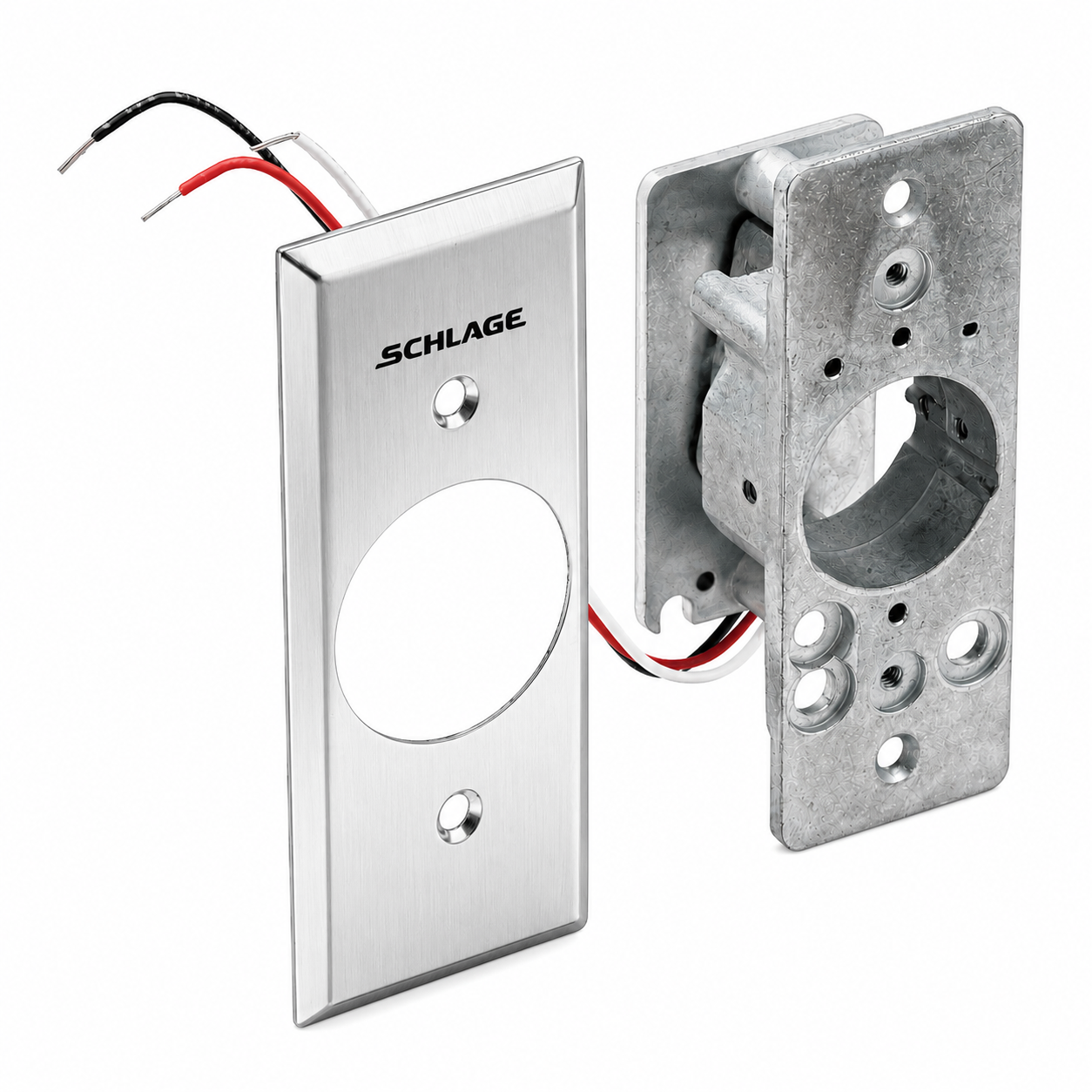

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

The Schlage 653-0505-NS is a 650 Series SPDT momentary bi-directional keyswitch configured with two SPDT switches for momentary switching in both key-turn directions. The 650 Series uses magnetic spring technology to configure momentary or maintained action.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-0505-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Momentary Bi-Directional Keyswitch, Narrow Stile
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 1-3/4" x 4-1/2"
Faceplate Type: Narrow Stile
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow stile DPDT maintained switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$469.00
$328.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-0505-NS?
The Schlage 653-0505-NS is a 650 Series SPDT momentary bi-directional keyswitch with the narrow-stile NS option.
What is the switch configuration of the 653-0505-NS?
The switch configuration is CCW-SPDT-CW, Momentary Momentary.
What does the NS option mean?
NS means a narrow-stile stainless steel plate measuring 1-3/4" x 4-1/2".
What cylinder can the 650 Series keyswitch use?
The keyswitch operates with a 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinder having a straight type cam.
Is the Schlage 653-0505-NS an OEM Schlage part?
Yes. The Schlage 653-0505-NS is an OEM Schlage part.
