Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch

Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch

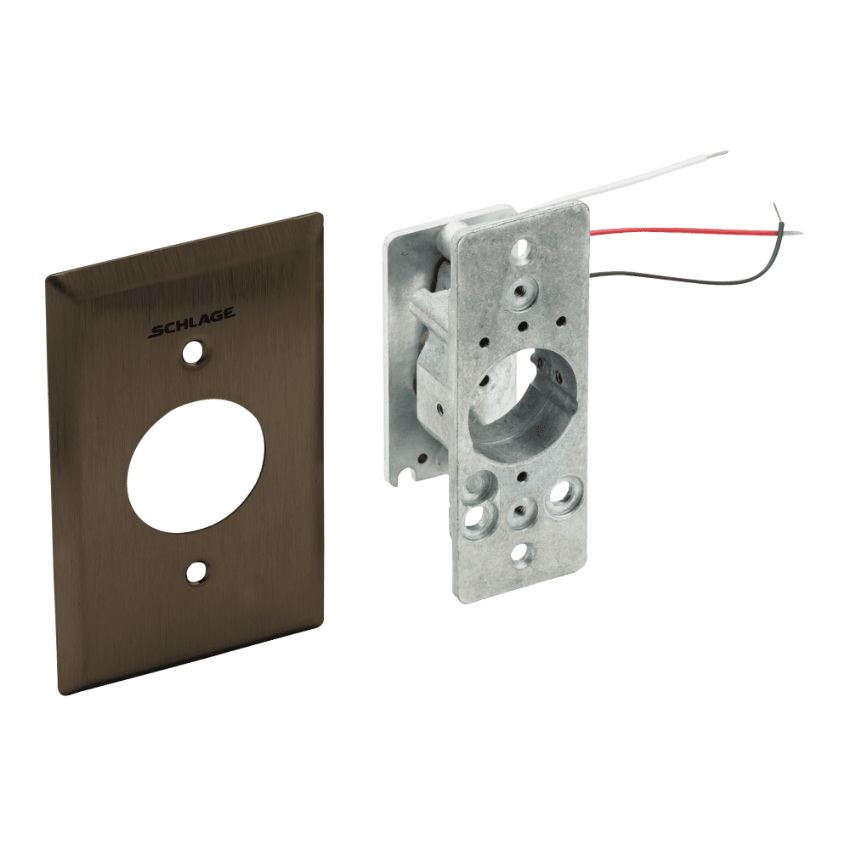

Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch SF-613 Oil Rubbed Bronze

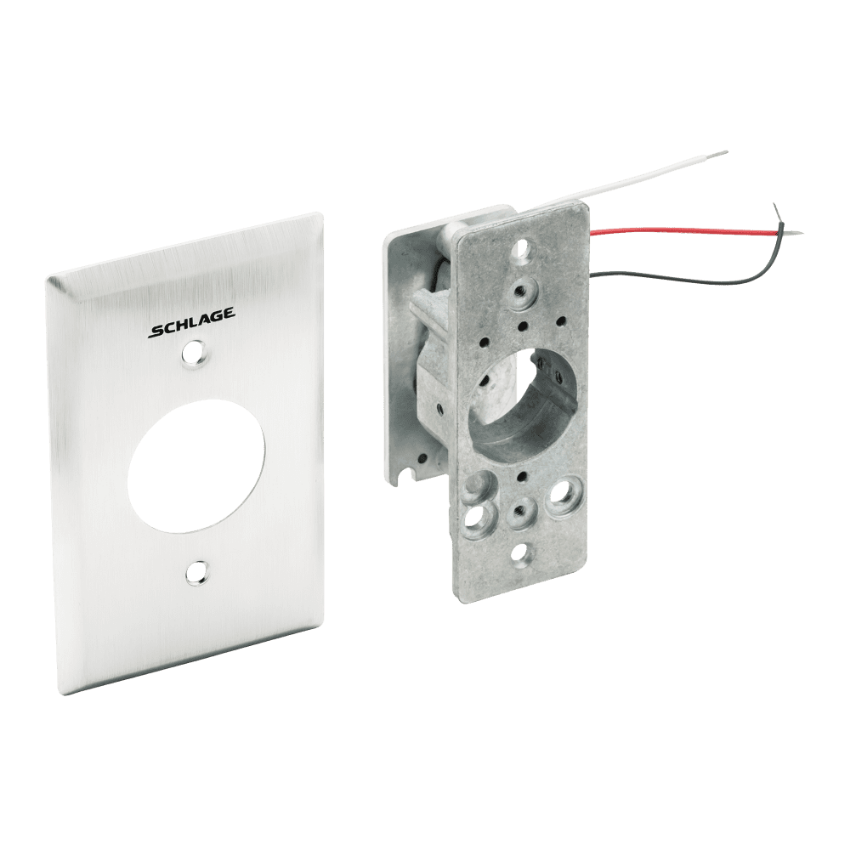

Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch SF-625 Bright Chrome

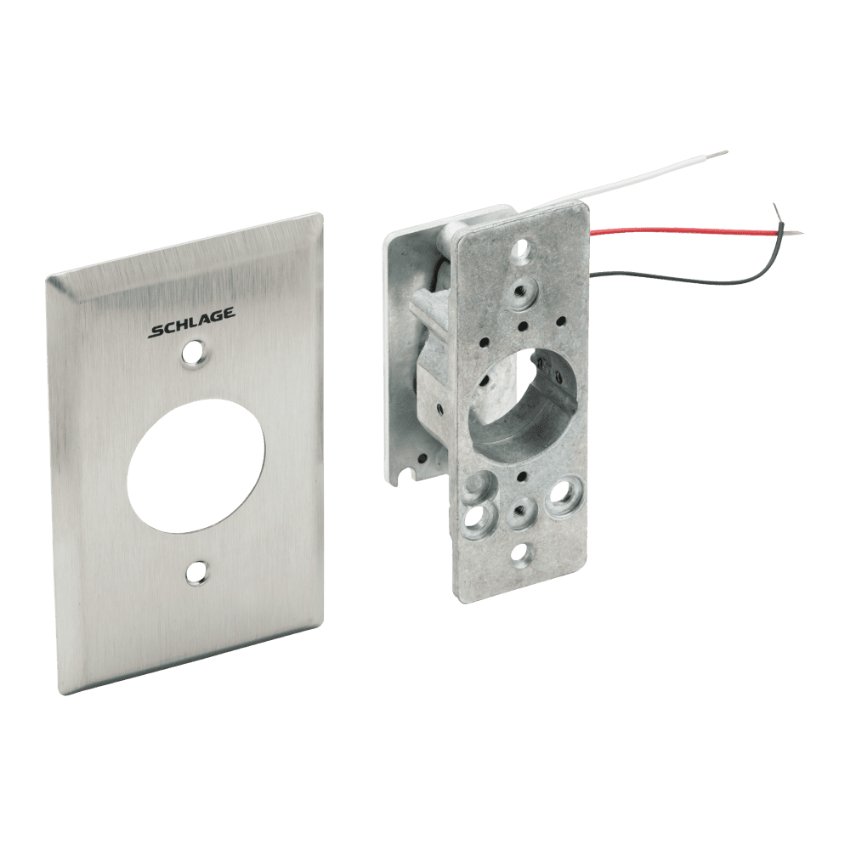

Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch SF-626 Satin Chrome

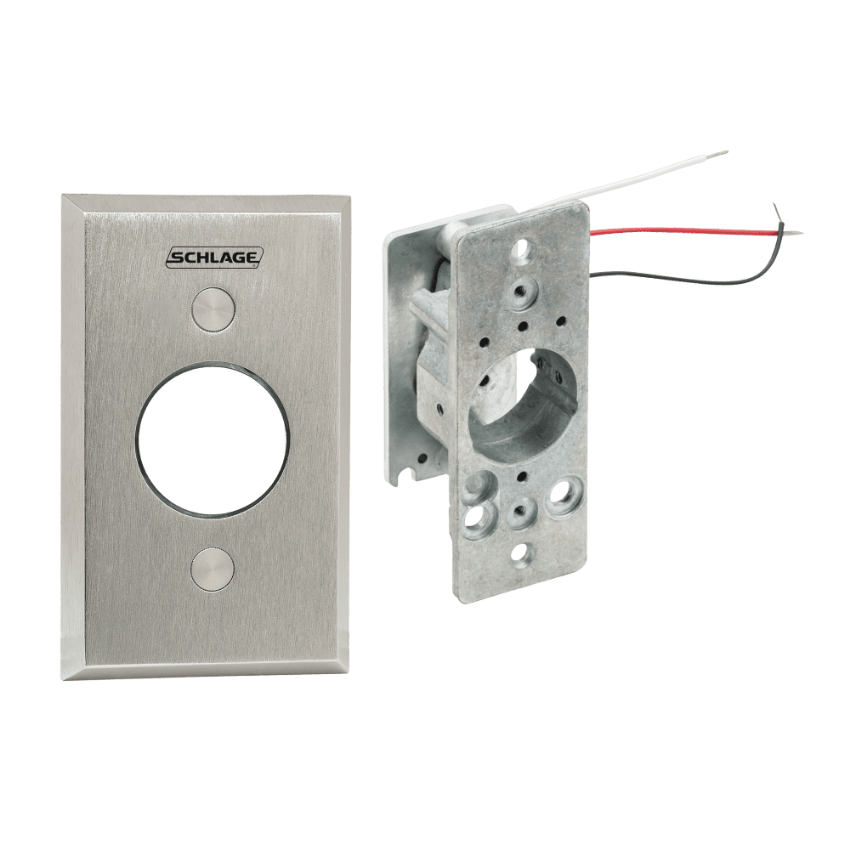

Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch ATS Anti-Tamper Switch
Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch with L2 LEDs

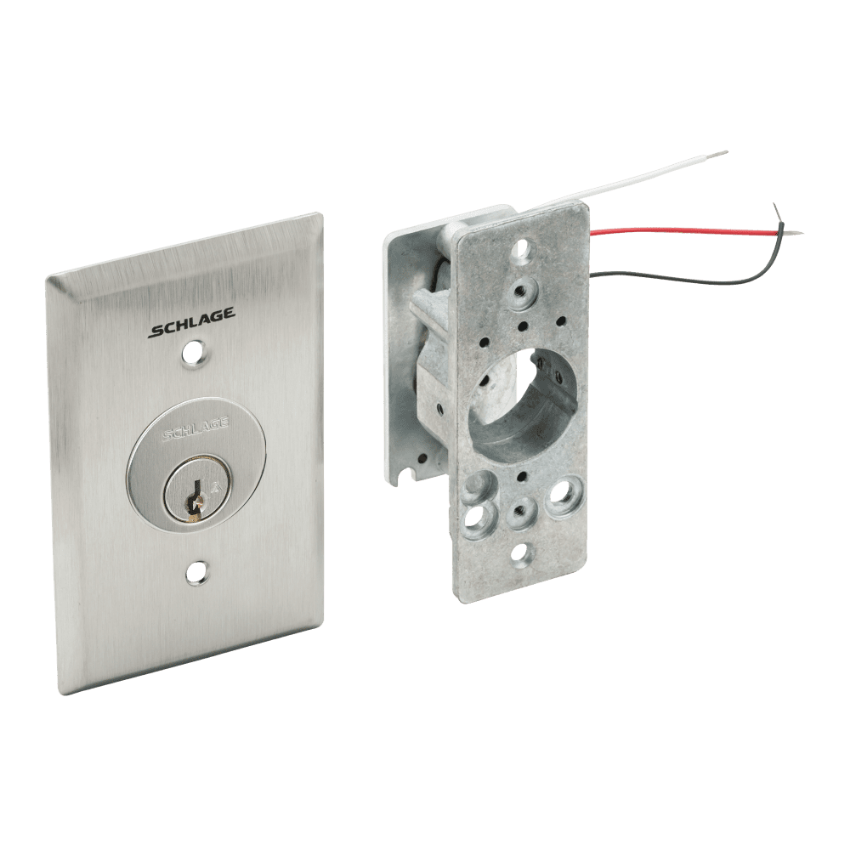

Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch with Cylinder
Dynamic Image
Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch
Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch SF-613 Oil Rubbed Bronze
Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch SF-625 Bright Chrome
Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch SF-626 Satin Chrome
Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch ATS Anti-Tamper Switch
Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch with L2 LEDs
Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch with Cylinder

Schlage

SKU: 653-0505

Schlage 653-0505 SPDT Momentary Bi-Direction Keyswitch

Available (3 - 4 Weeks)

Schlage 653-0505 is a 650 Series SPDT momentary bi-direction keyswitch that provides momentary switching when the key is turned counterclockwise or clockwise.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

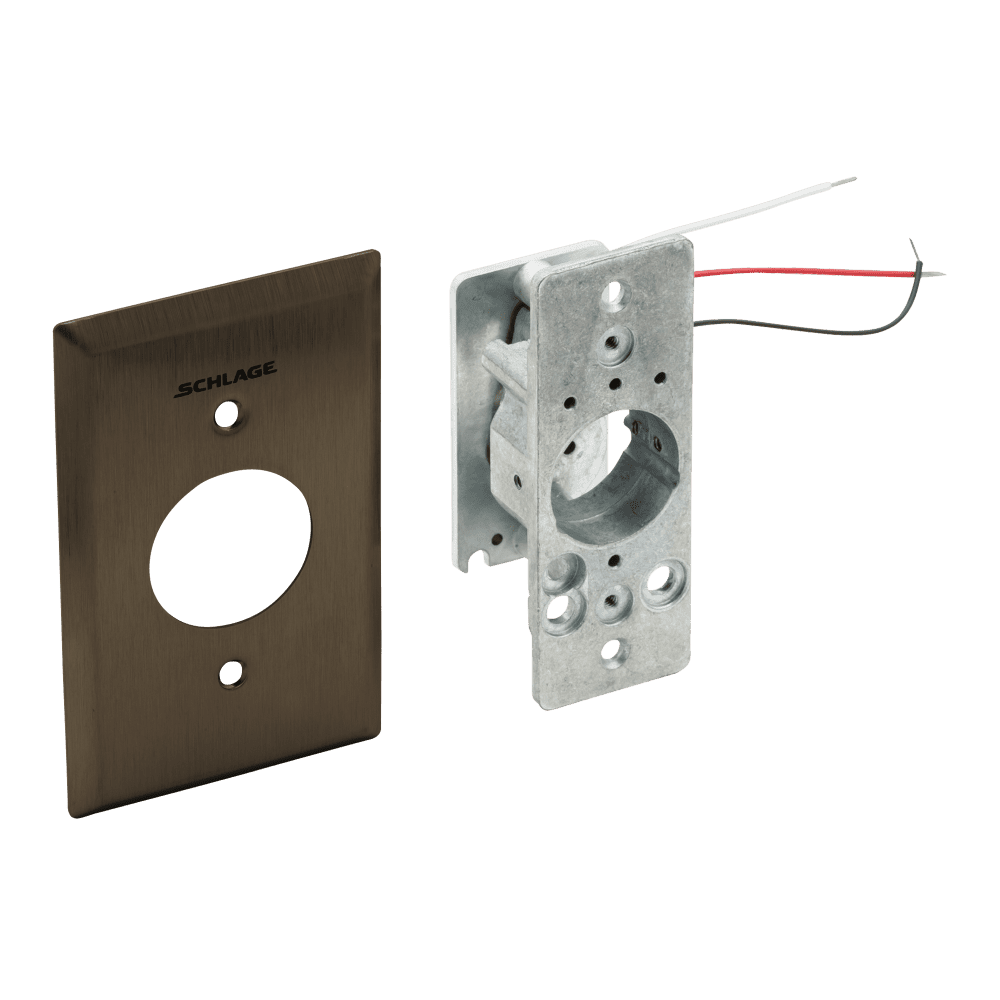

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

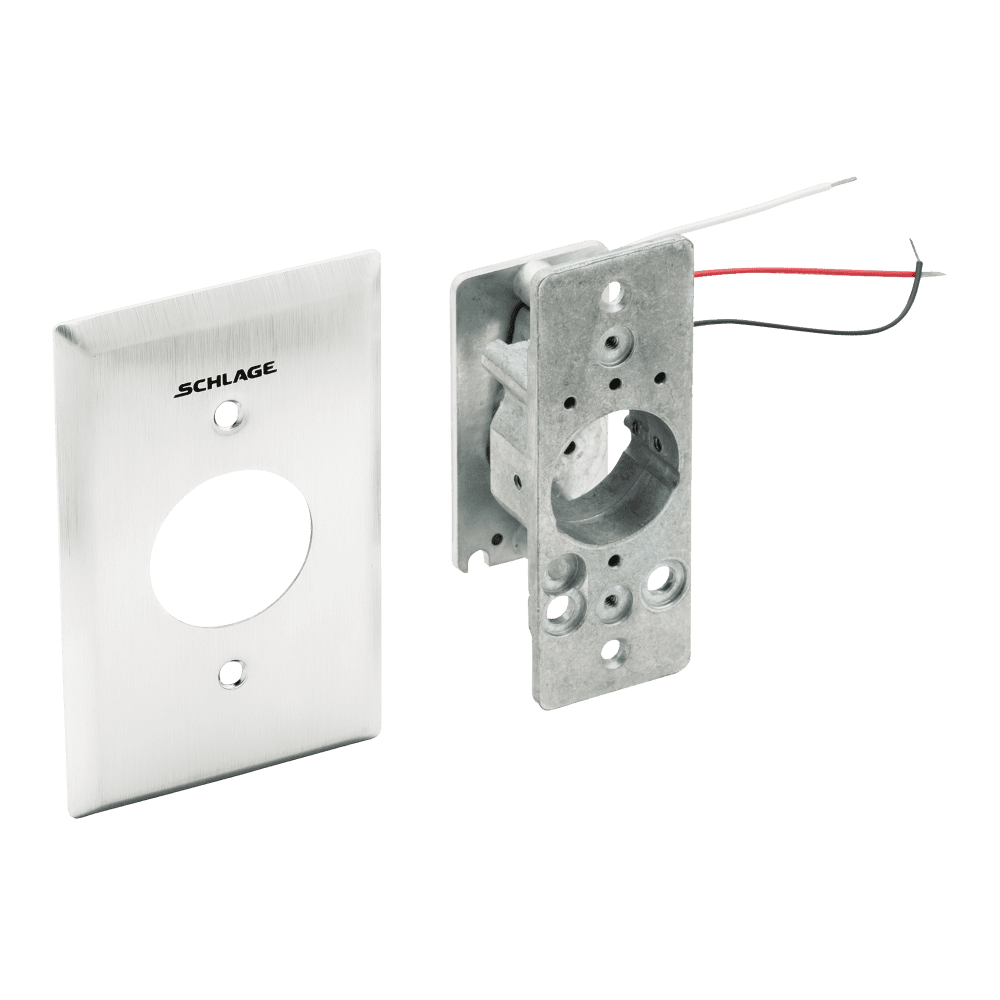

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

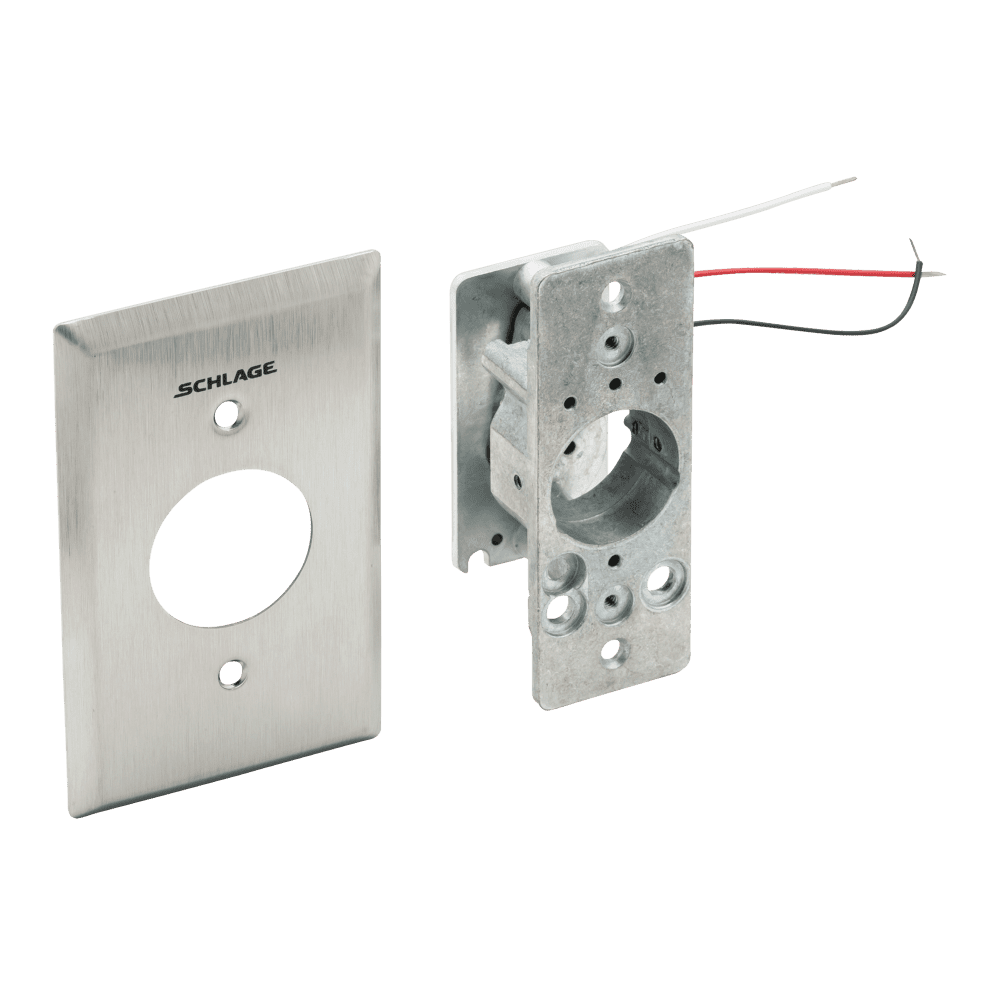

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-0505 is a 650 Series SPDT momentary bi-direction keyswitch configured for momentary switching in both key-turn directions. This configuration is intended for applications requiring a key-operated momentary switch in either direction. The 650 Series uses magnetic spring technology to provide maintained or momentary switching configurations.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-0505
Product Type: Keyswitch
Product Series: 650 Series
Product Name: SPDT Momentary Bi-Direction Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: SPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: SPDT momentary bi-direction switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$469.00
$328.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-0505?
The Schlage 653-0505 is a 650 Series keyswitch with two SPDT momentary switching positions.
What is the switch configuration of the 653-0505?
The switch configuration is CCW-SPDT-CW, Momentary Momentary.
Is the 653-0505 maintained or momentary?
It is configured for momentary operation in both key-turn directions.
What cylinder does the 653-0505 use?
The 650 Series operates with a 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinder having a straight-type cam.
Is the Schlage 653-0505 an OEM Schlage part?
Yes. The Schlage 653-0505 is an OEM Schlage part.
