Schlage

SKU: 653-14-NS

Schlage 653-14-NS DPDT Maintained Keyswitch, Narrow Stile

In stock

Schlage 653-14-NS is a narrow stile DPDT maintained single-direction keyswitch for 650 Series applications, using key activation to provide maintained switching for electronic access control and related equipment.
*

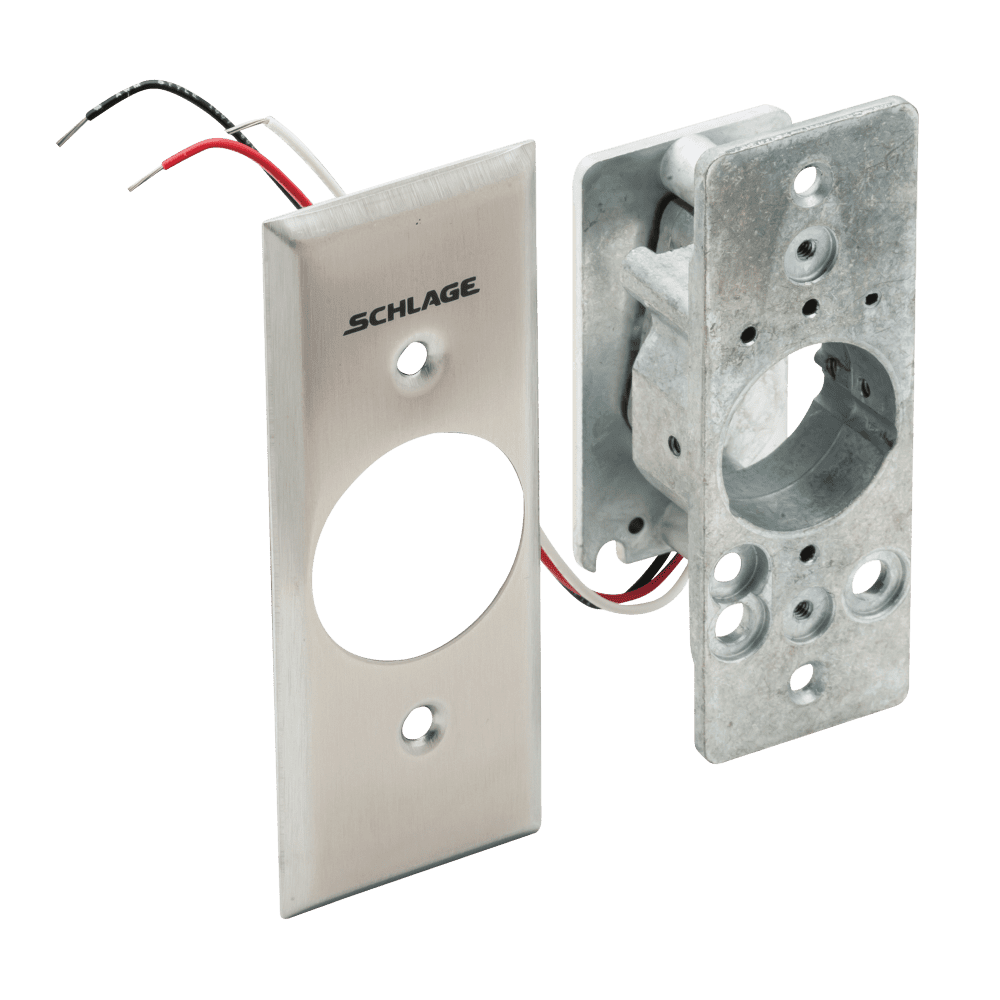

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

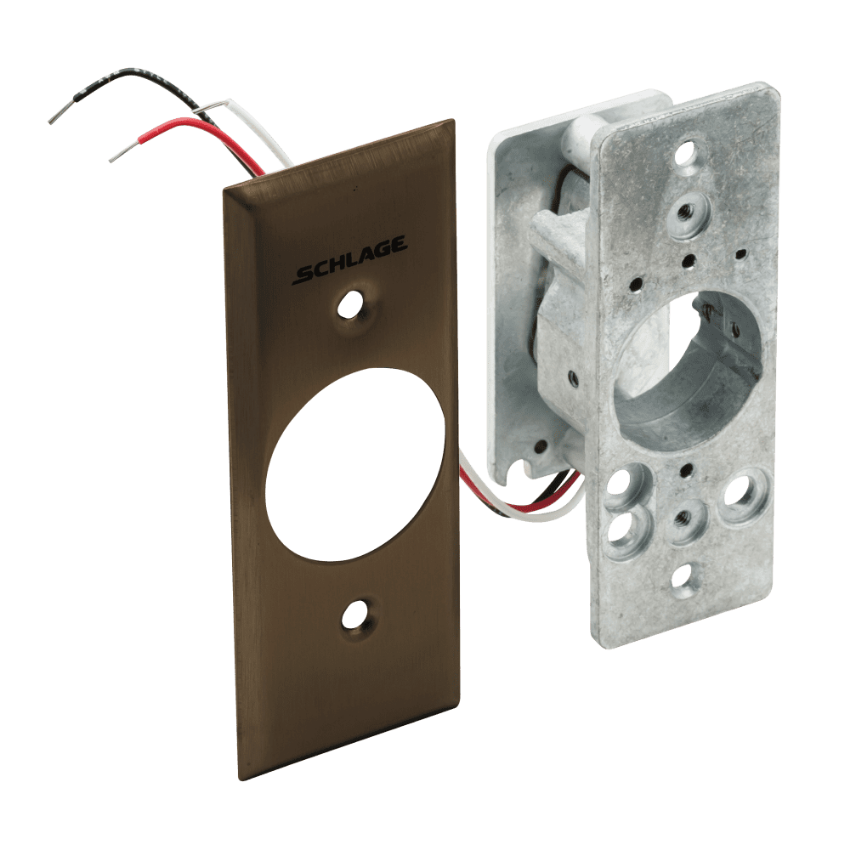

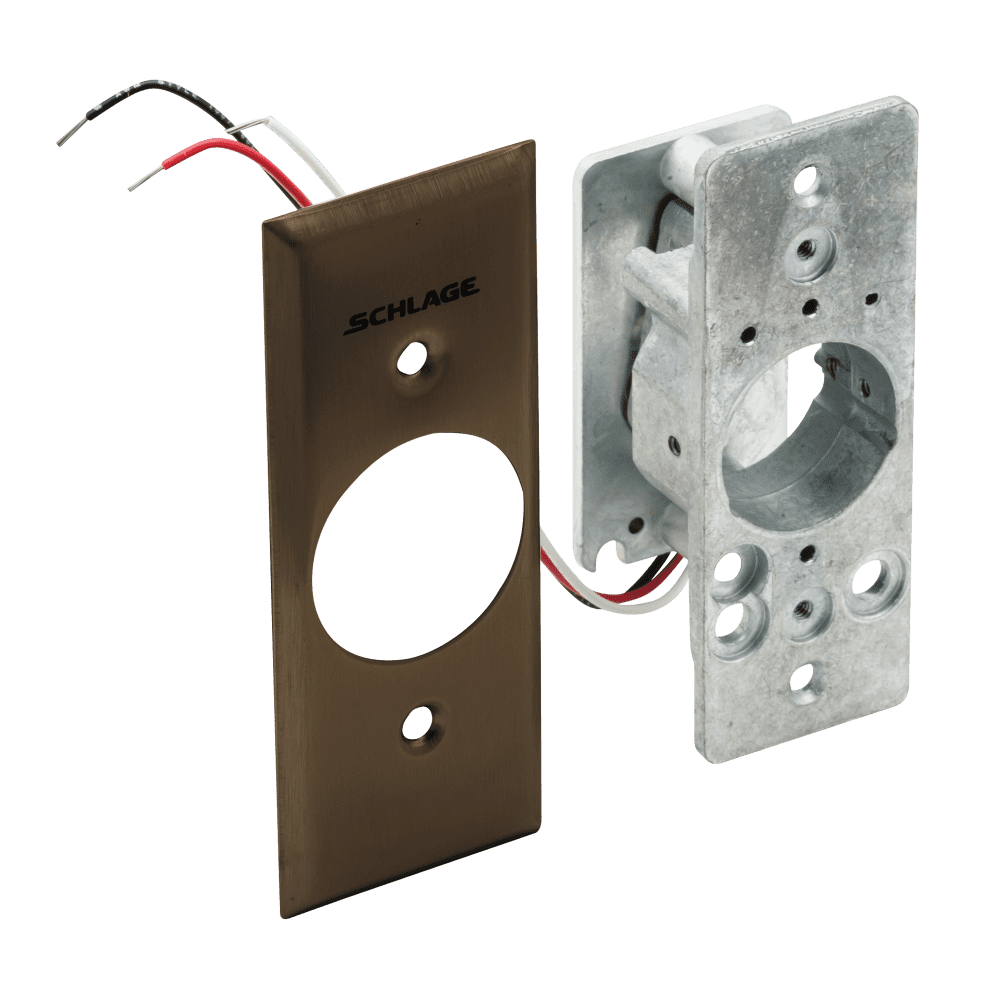

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

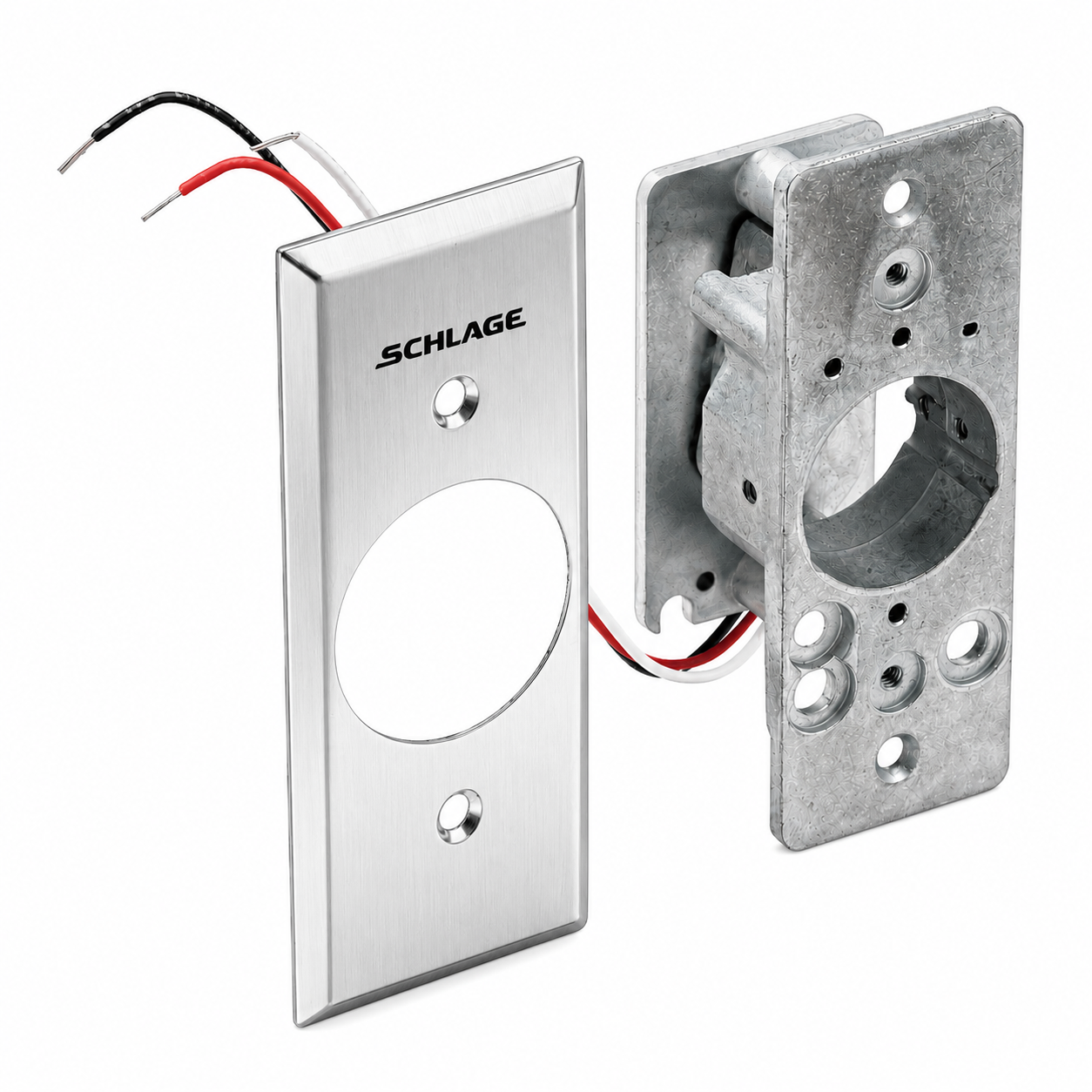

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

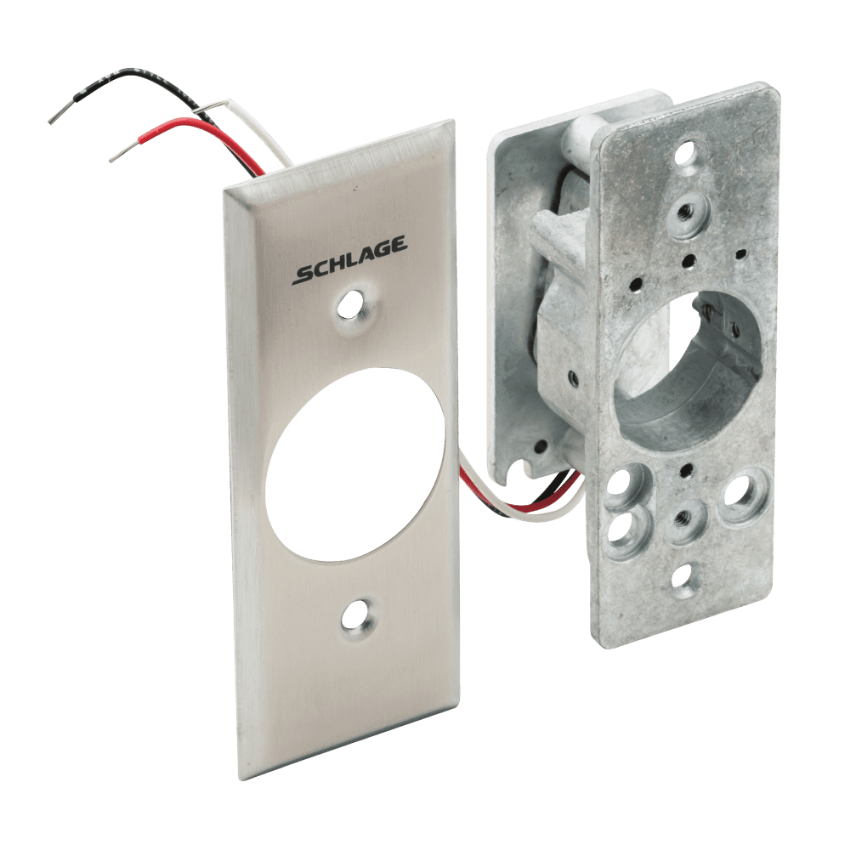

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-14-NS is a narrow stile DPDT maintained single-direction keyswitch in the Schlage 650 Series. It uses magnetic spring technology to provide maintained key-switch action and can be configured for clockwise operation. A blocking or spacer ring is required for applicable longer cylinders.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-14-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Maintained Keyswitch, Narrow Stile
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 1-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow stile DPDT maintained single-direction switching
Application: Electronic access control
OEM Part: Yes

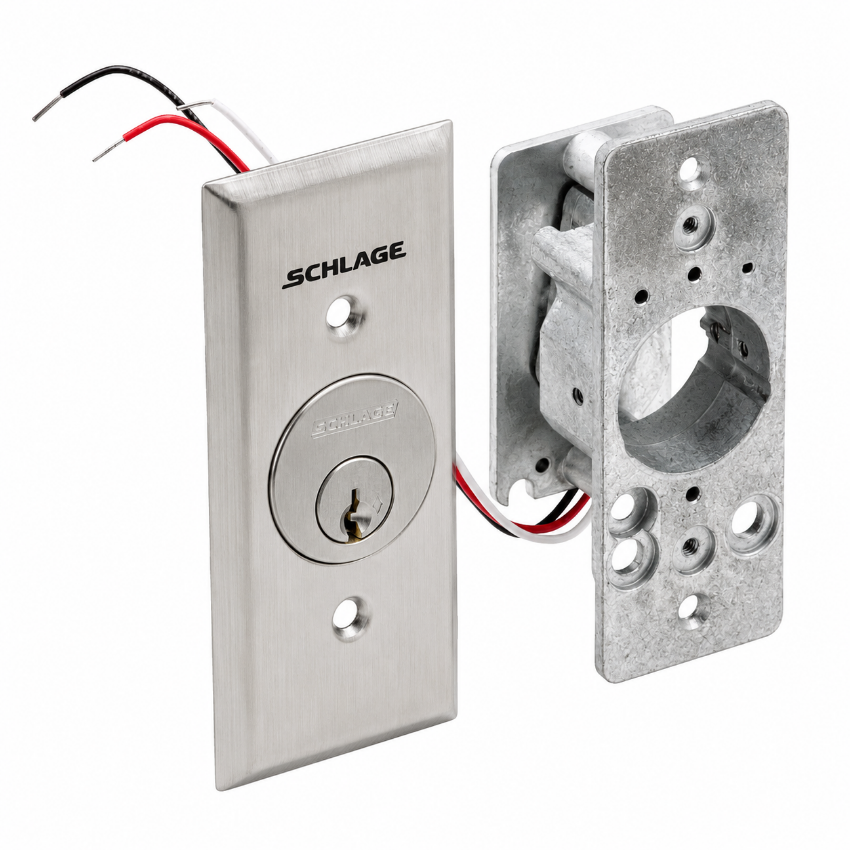

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$406.00
$284.20
minus minus

Catalogs

Frequently Asked Questions

What is Schlage 653-14-NS?
Schlage 653-14-NS is a narrow stile DPDT maintained single-direction keyswitch.
What does the 653-14-NS fit?
It is part of the Schlage 650 Series keyswitch family and operates with compatible straight-cam mortise cylinders.
Is the 653-14-NS momentary or maintained?
The 653-14-NS is a maintained-action keyswitch.
What cylinders can the 653-14-NS use?
The 650 Series accepts 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders with a straight type cam, with blocking rings required for applicable cylinder sizes.
Is the Schlage 653-14-NS an OEM replacement part?
Yes. The 653-14-NS is a Schlage OEM keyswitch part for 650 Series applications.
