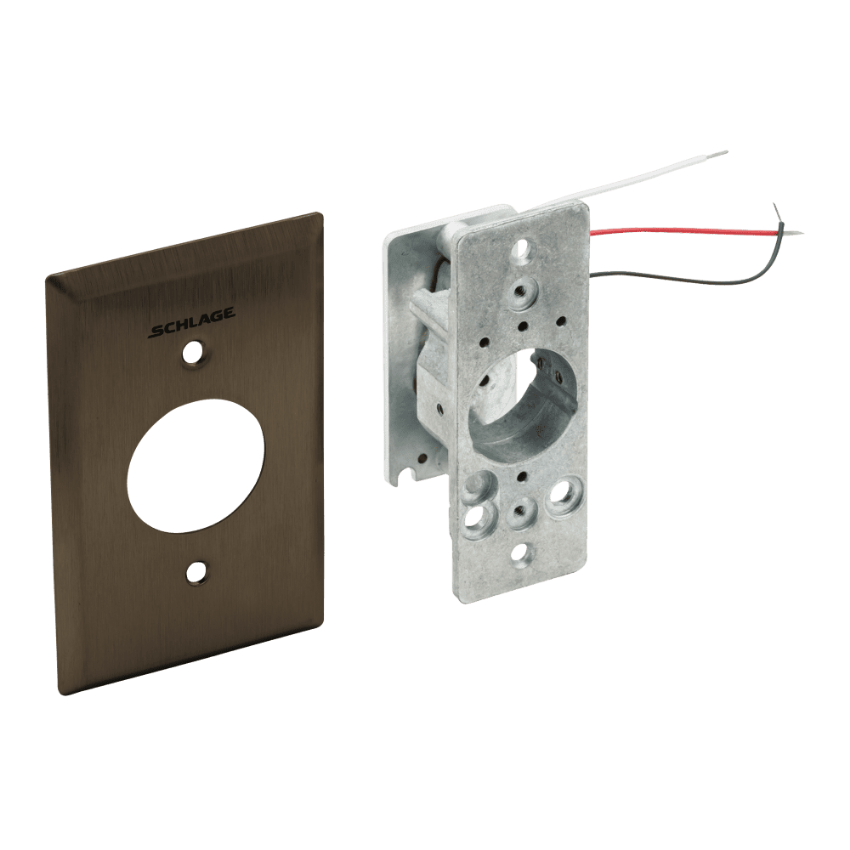

Schlage 653-141 DPDT Maintained Key Remove One Position Keyswitch SF-613 Oil Rubbed Bronze

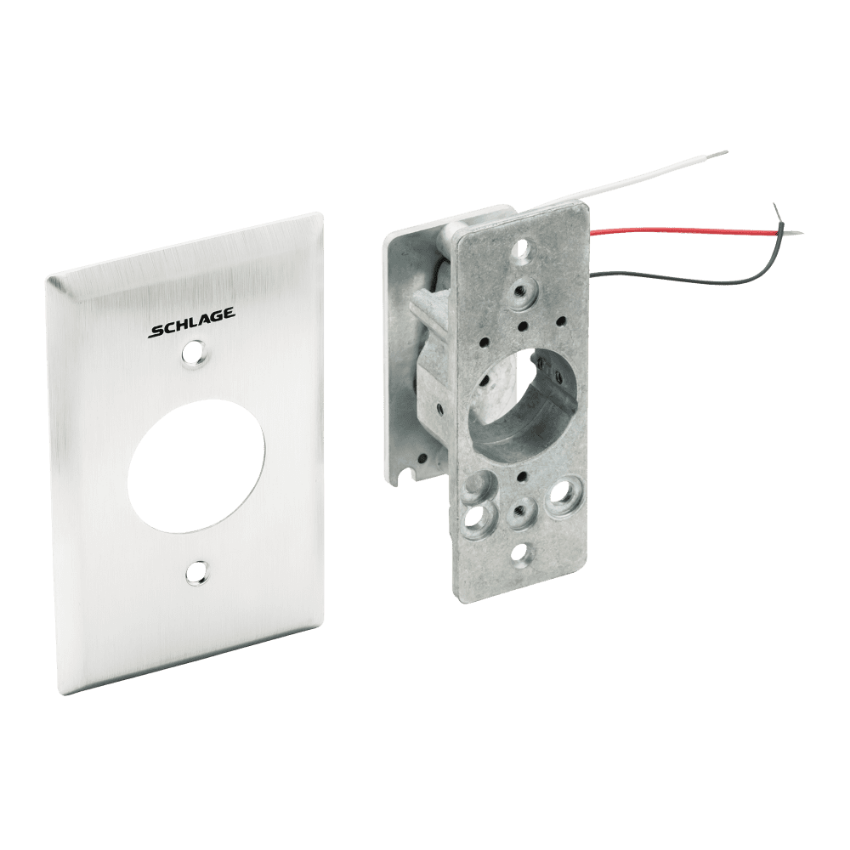

Schlage 653-141 DPDT Maintained Key Remove One Position Keyswitch SF-625 Bright Chrome

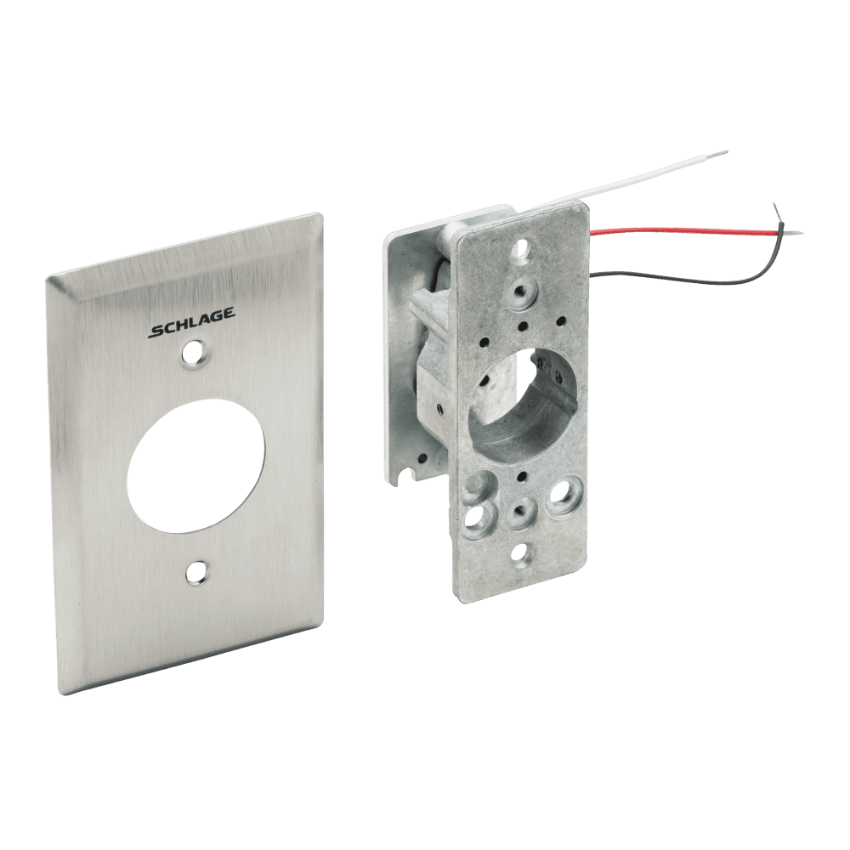

Schlage 653-141 DPDT Maintained Key Remove One Position Keyswitch SF-626 Satin Chrome

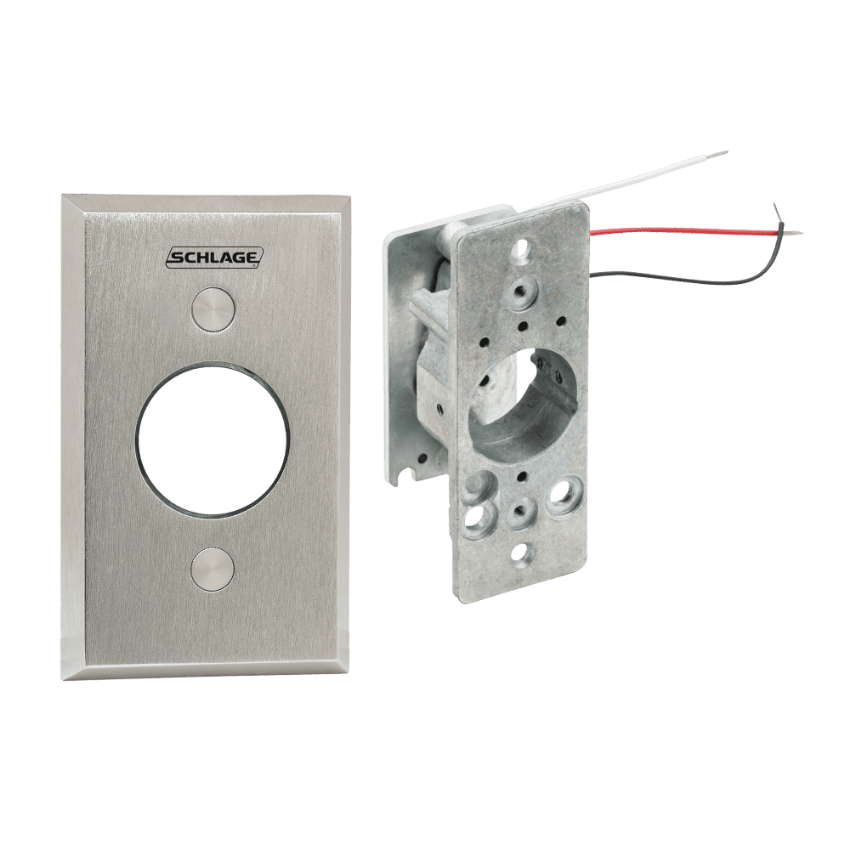

Schlage 653-141 DPDT Maintained Key Remove One Position Keyswitch ATS Anti-Tamper Switch
Schlage 653-141 DPDT Maintained Key Remove One Position Keyswitch with L2 LEDs

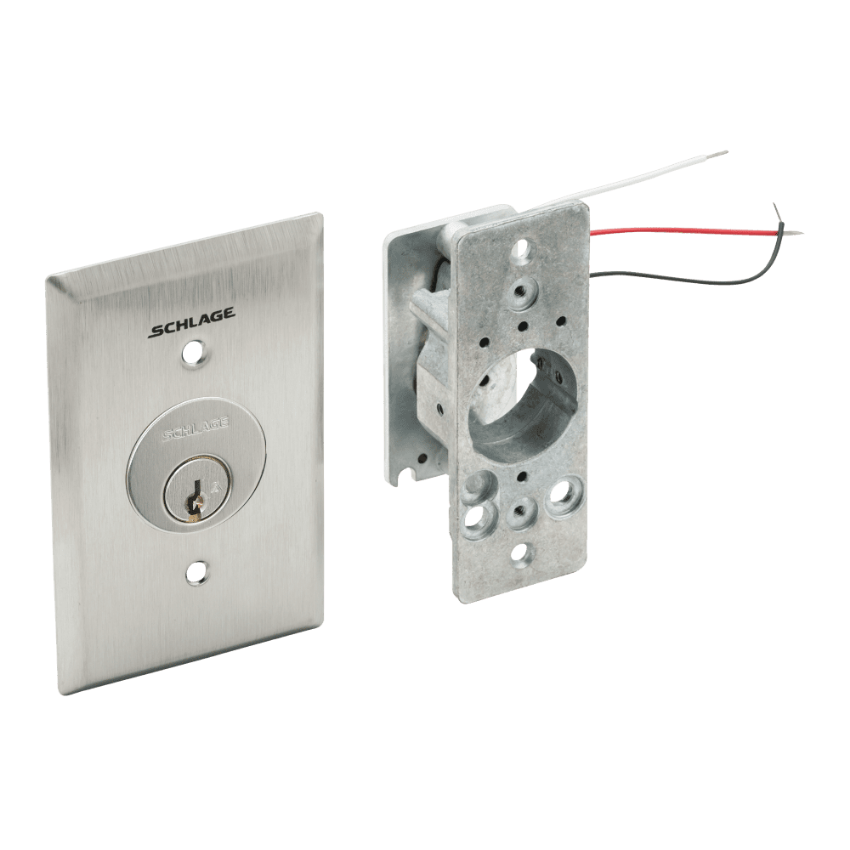

Schlage 653-141 DPDT Maintained Key Remove One Position Keyswitch with Cylinder

Schlage

SKU: 653-141

Schlage 653-141 DPDT Maintained Keyswitch

Available (3 - 4 Weeks)

Schlage 653-141 is a 650 Series DPDT maintained keyswitch configured for key removal in one position. It is used for key-operated switching in commercial electronic access control applications.
*

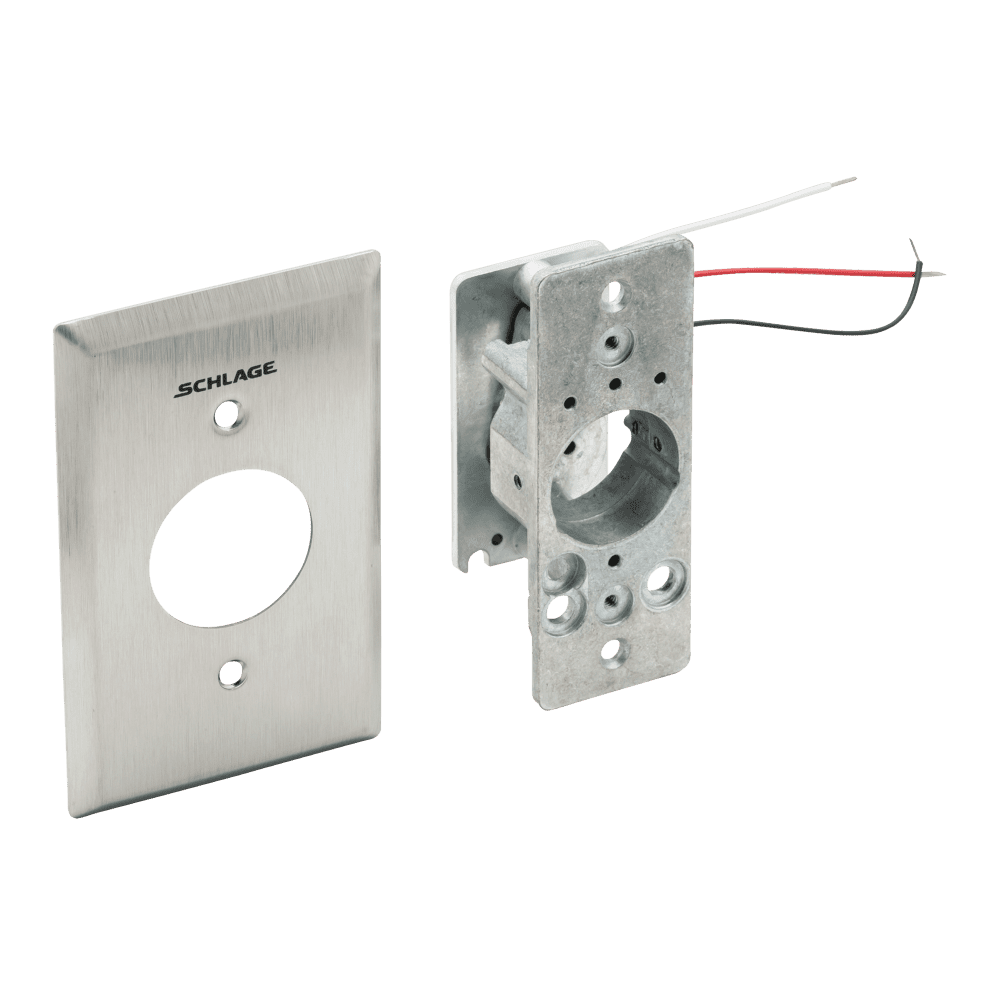

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

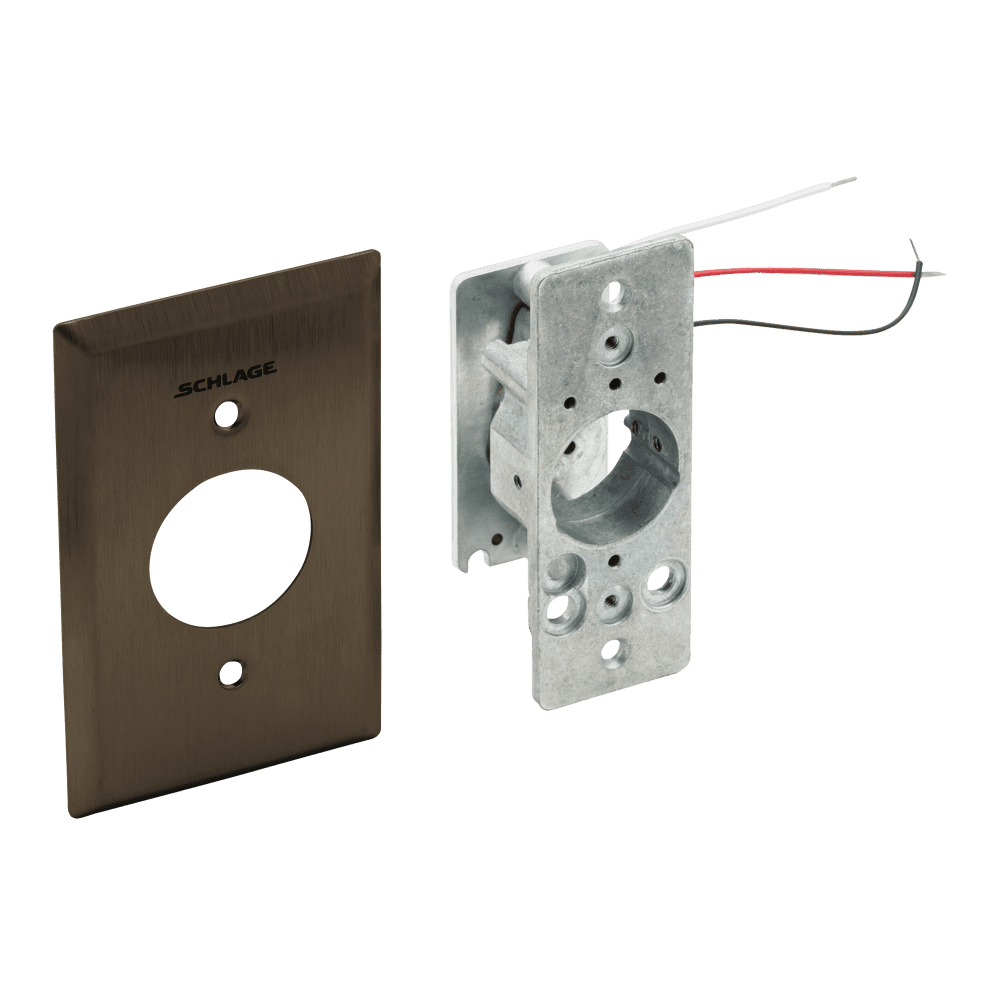

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

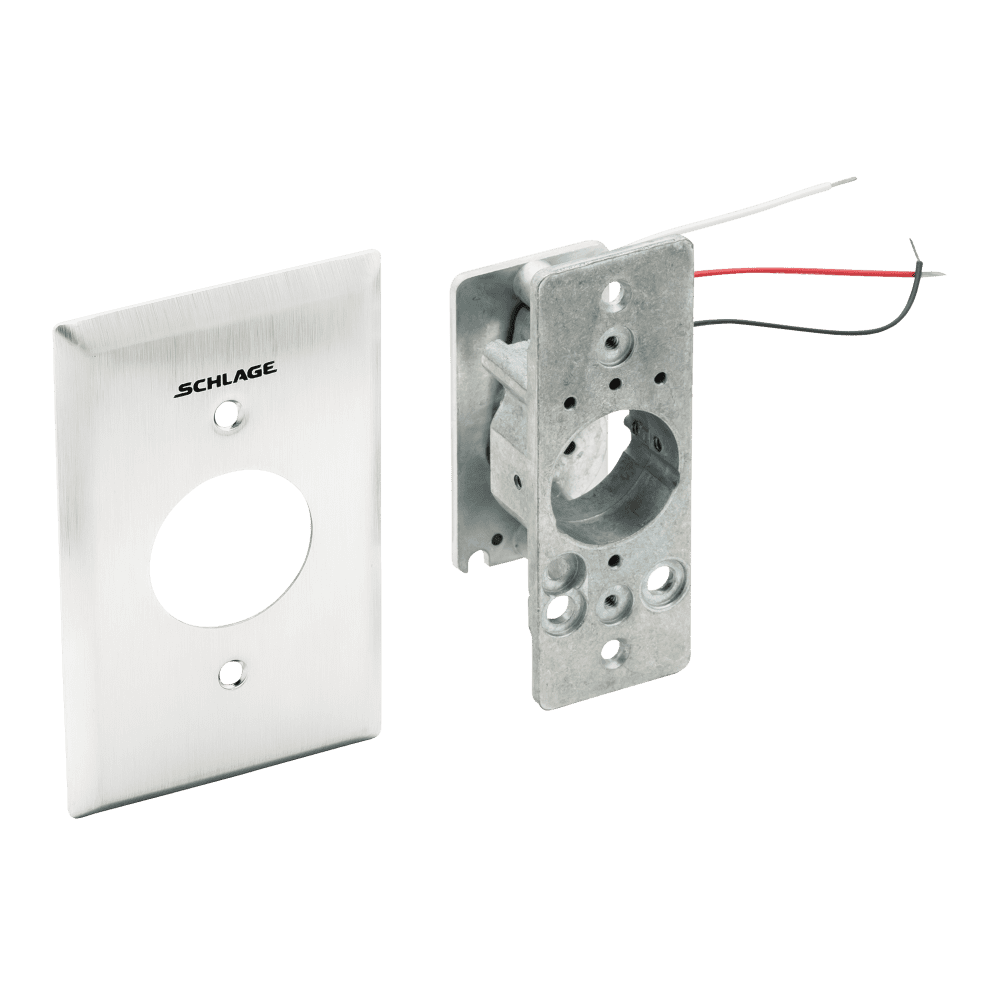

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-141 is a 650 Series DPDT maintained keyswitch with a CCW-DPDT maintained configuration and key removal in one position. The 653-141 is a CCW-DPDT maintained keyswitch in which the key cannot be removed when the switch is activated. The 650 Series uses magnetic spring technology for maintained or momentary switching configurations.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-141
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Maintained Keyswitch
Key Function: Key remove one position
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: DPDT maintained switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$469.00
$328.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-141?
The Schlage 653-141 is a 650 Series DPDT maintained key remove one position keyswitch.
What type of switch configuration does the 653-141 use?
It uses a CCW-DPDT maintained configuration.
Can the key be removed when the switch is activated?
No. The key cannot be removed when the 653-141 switch is activated.
What cylinders can the 650 Series keyswitch use?
The keyswitch operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders having a straight-type cam.
Is the Schlage 653-141 an OEM Schlage part?
Yes. The Schlage 653-141 is an OEM Schlage part.
