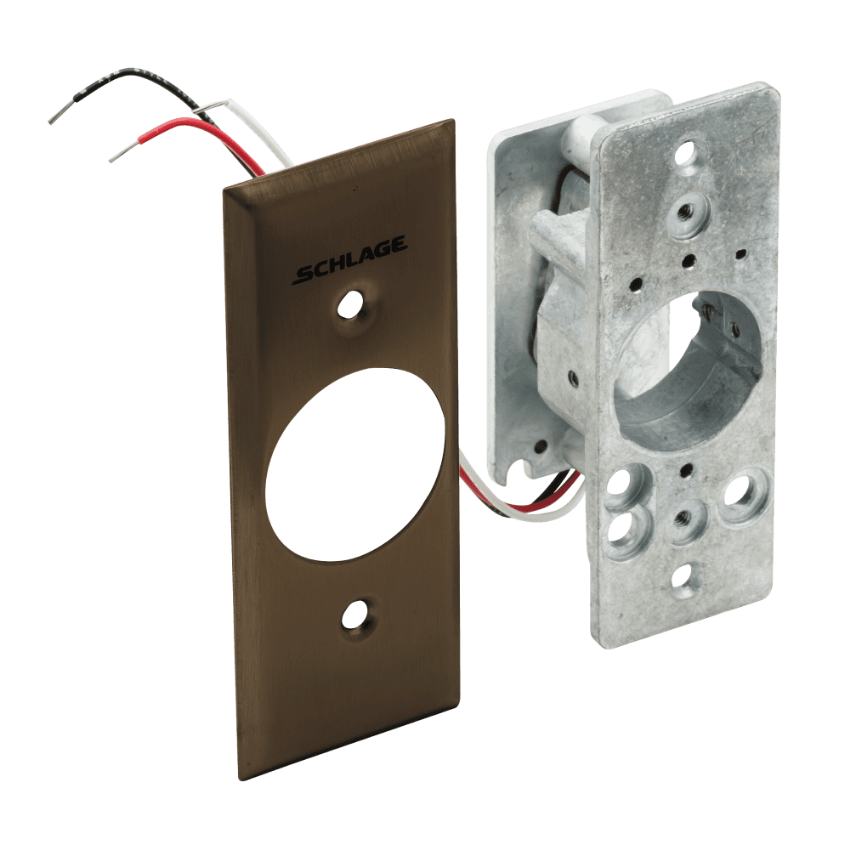

Schlage 653-141-NS DPDT Maintained Key Remove One Position Keyswitch, Narrow Stile Oil Rubbed Bronze

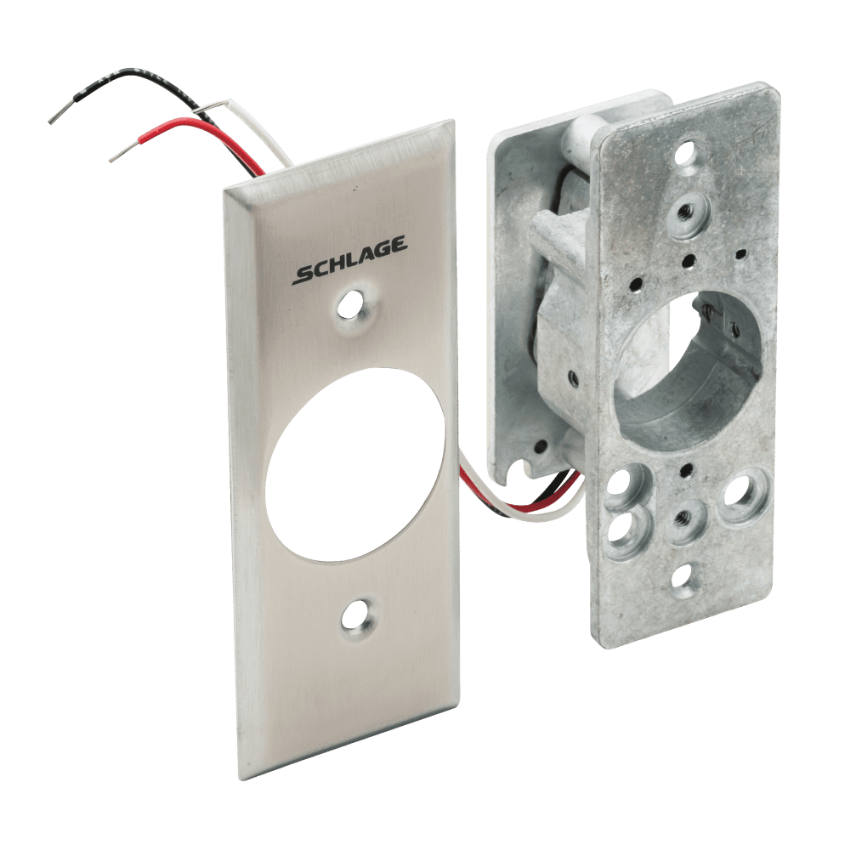

Schlage 653-141-NS DPDT Maintained Key Remove One Position Keyswitch, Narrow Stile Satin Chrome
Schlage 653-141-NS DPDT Maintained Key Remove One Position Keyswitch, Narrow Stile Bright Chrome

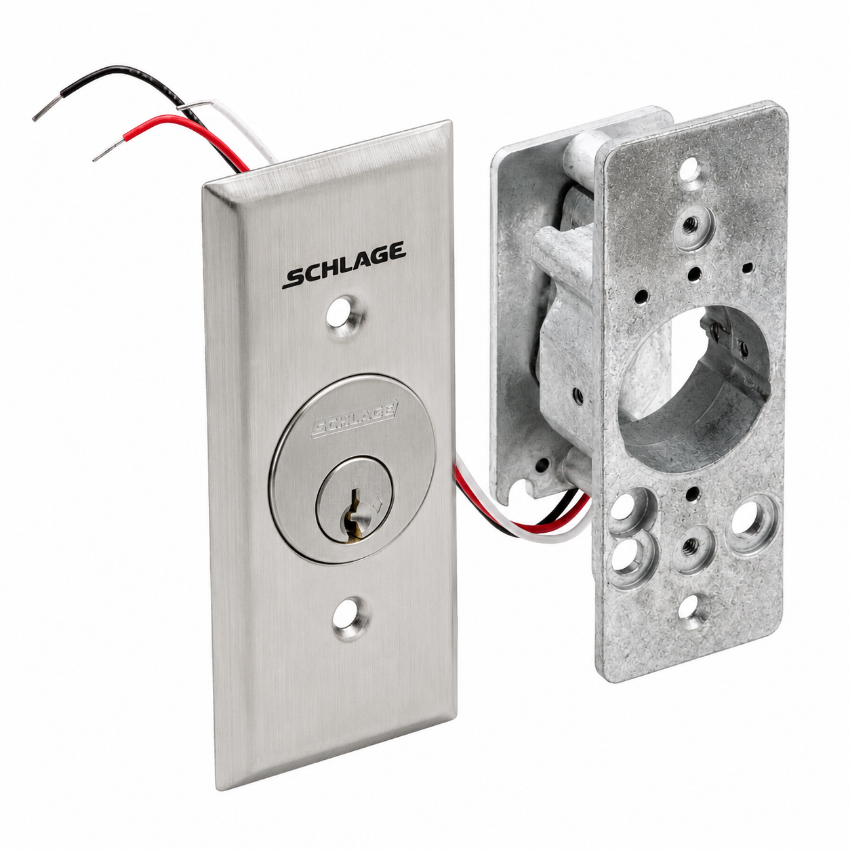

Schlage 653-141-NS DPDT Maintained Key Remove One Position Keyswitch, Narrow Stile with Cylinder
Schlage 653-141-NS DPDT Maintained Key Remove One Position Keyswitch, Narrow Stile with Red and Green LEDs
Schlage 653-141-NS DPDT Maintained Key Remove One Position Keyswitch, Narrow Stile with Anti-Tamper Switch

Schlage

SKU: 653-141-NS

Schlage 653-141-NS DPDT Maintained Keyswitch, Narrow Stile

Available (3 - 4 Weeks)

Schlage 653-141-NS is a 650 Series DPDT maintained keyswitch with a narrow stile stainless steel plate. The 653-141 function provides key removal in one position.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

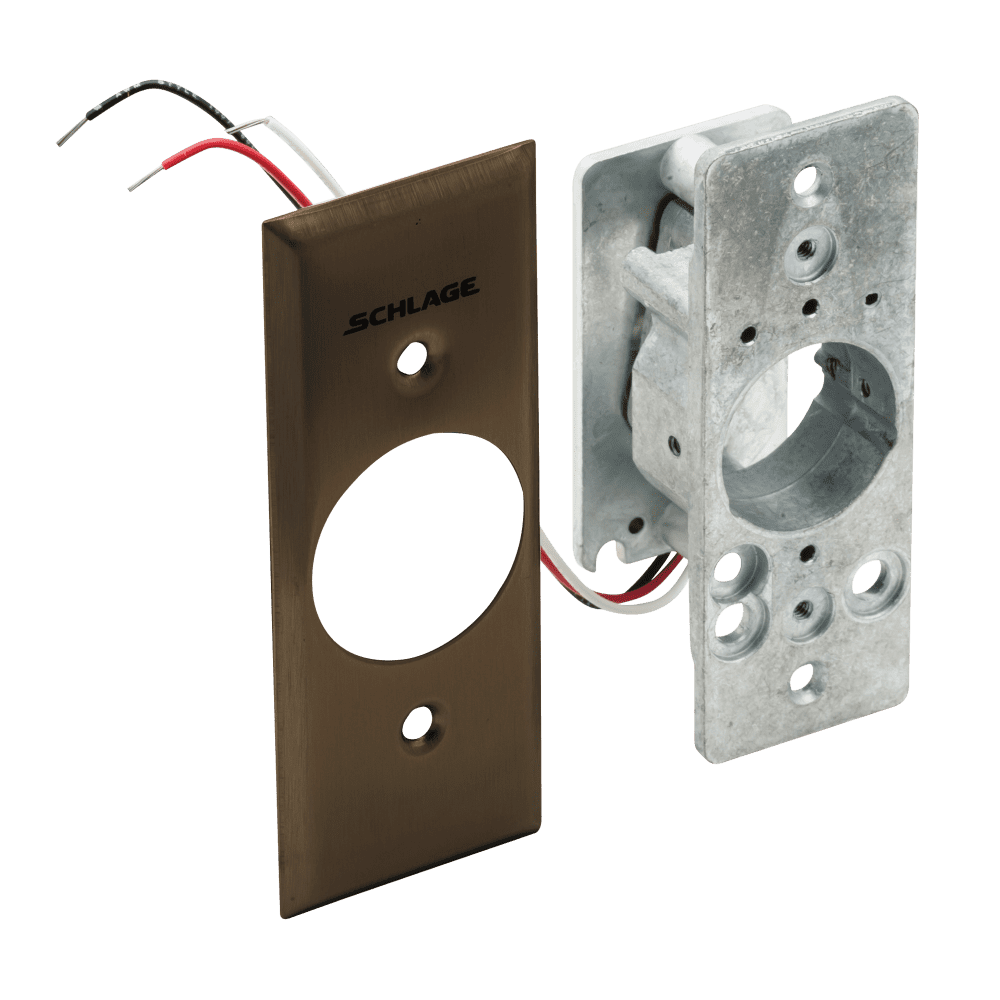

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

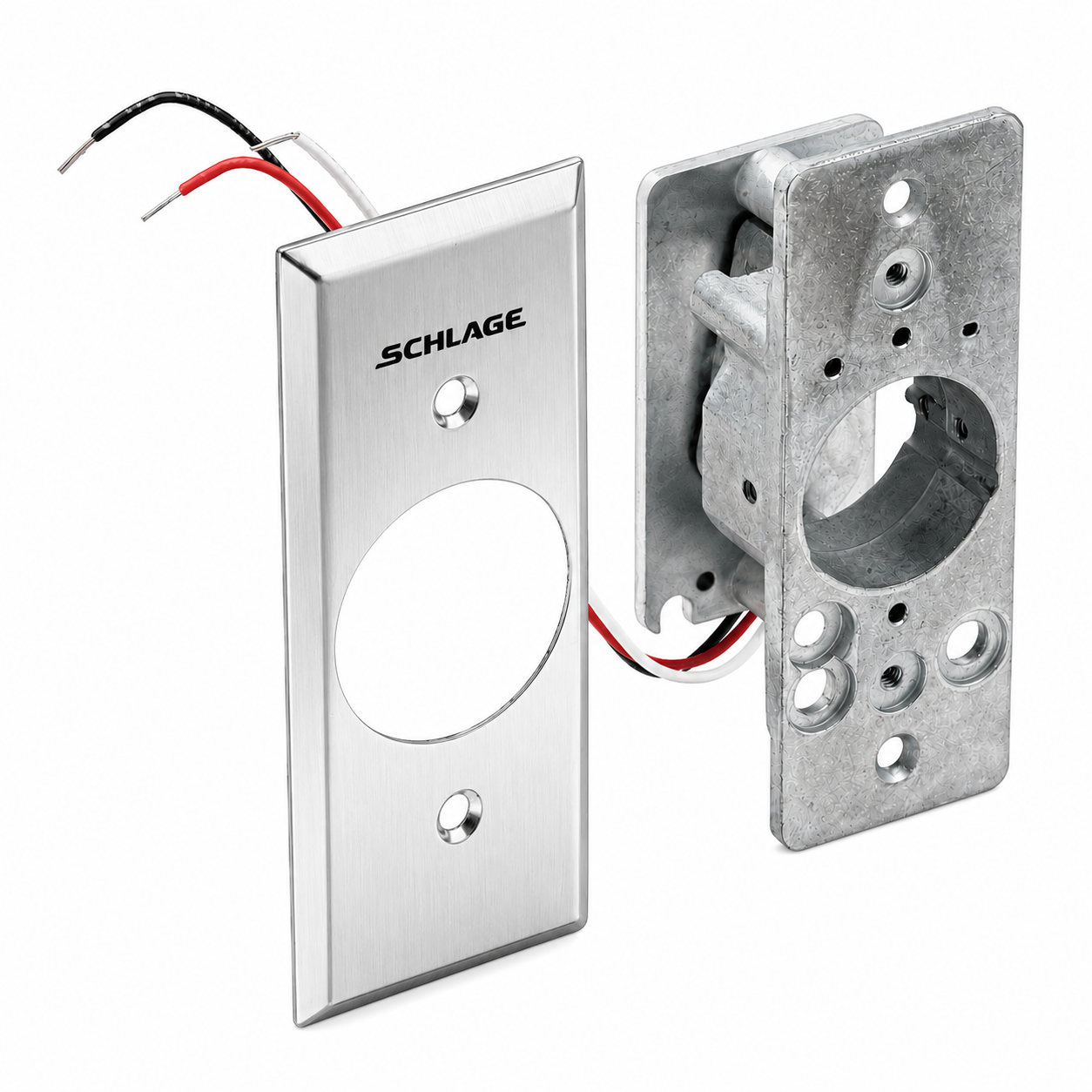

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

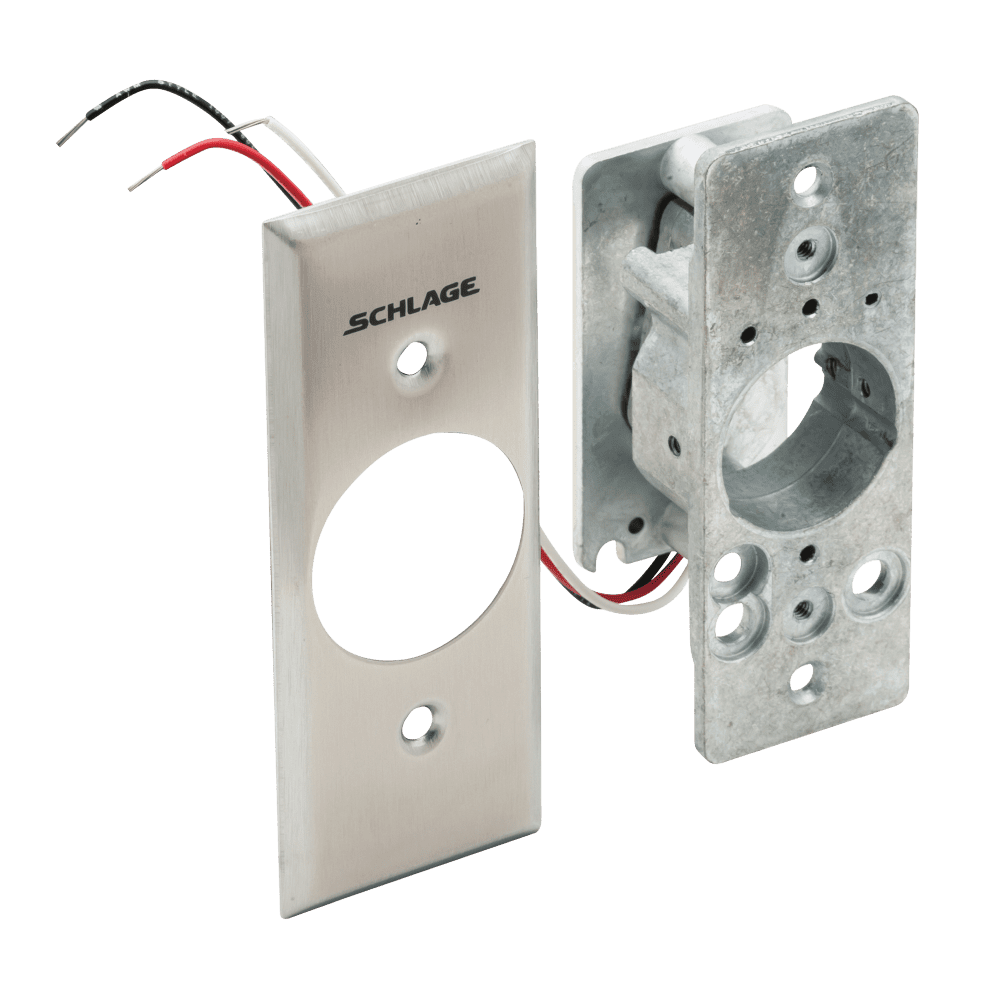

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-141-NS is a 650 Series DPDT maintained keyswitch configured with the 653-141 function and NS narrow stile option. The 653-141-NS is a CCW-DPDT maintained keyswitch in which the key cannot be removed when the switch is activated. The 650 Series uses magnetic spring technology for maintained or momentary switching configurations.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-141-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Maintained Keyswitch, Narrow Stile
Key Function: Key remove one position
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 1-3/4" x 4-1/2"
Faceplate Type: Narrow Stile
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow stile DPDT maintained switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$469.00
$328.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-141-NS?
The Schlage 653-141-NS is a 650 Series DPDT maintained keyswitch with key removal in one position and a narrow stile stainless steel plate.
What type of switch configuration does the 653-141 use?
The 653-141-NS uses a CCW-DPDT maintained configuration.
Can the key be removed when the switch is activated?
No. The key cannot be removed when the 653-141-NS switch is activated.
What cylinders can the 650 Series keyswitch use?
The keyswitch operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders having a straight-type cam.
Is the Schlage 653-141-NS an OEM Schlage part?
Yes. The Schlage 653-141-NS is an OEM Schlage part.
