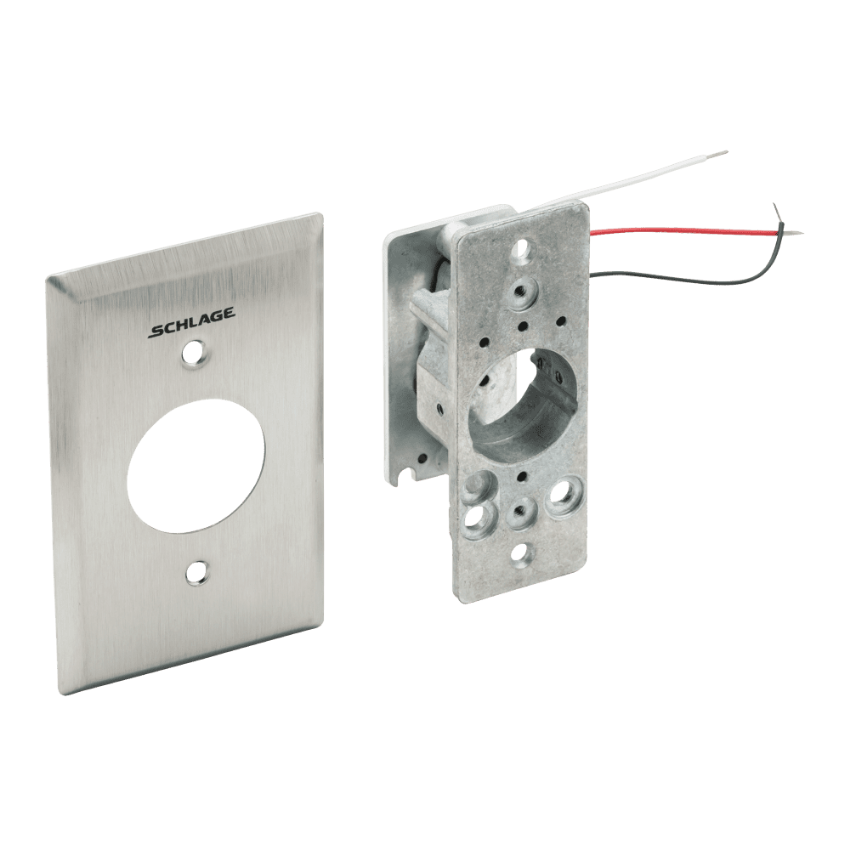

Schlage 653-1414 DPDT Maintained Bi-Directional Keyswitch

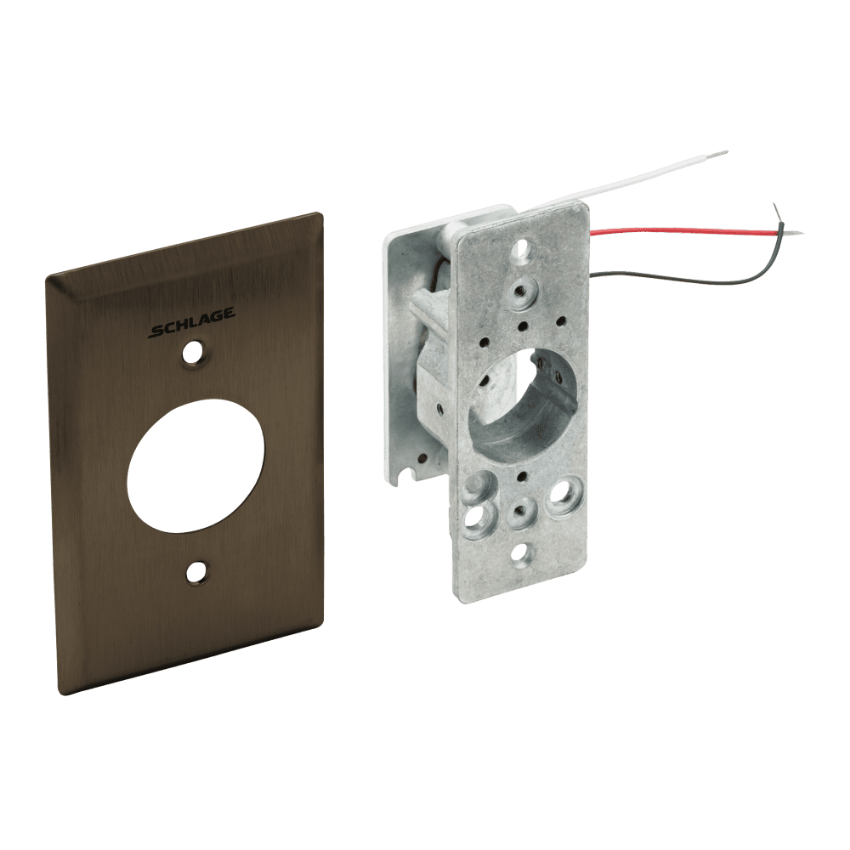

Schlage 653-1414 DPDT Maintained Bi-Directional Keyswitch SF-613 Oil Rubbed Bronze

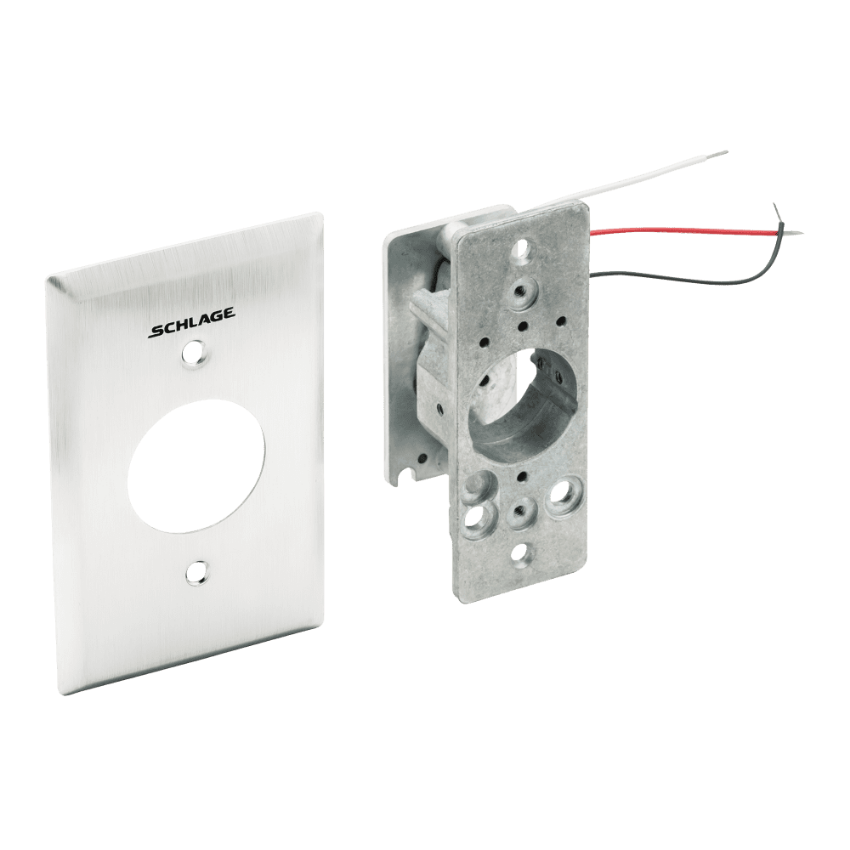

Schlage 653-1414 DPDT Maintained Bi-Directional Keyswitch SF-625 Bright Chrome
Schlage 653-1414 DPDT Maintained Bi-Directional Keyswitch SF-626 Satin Chrome

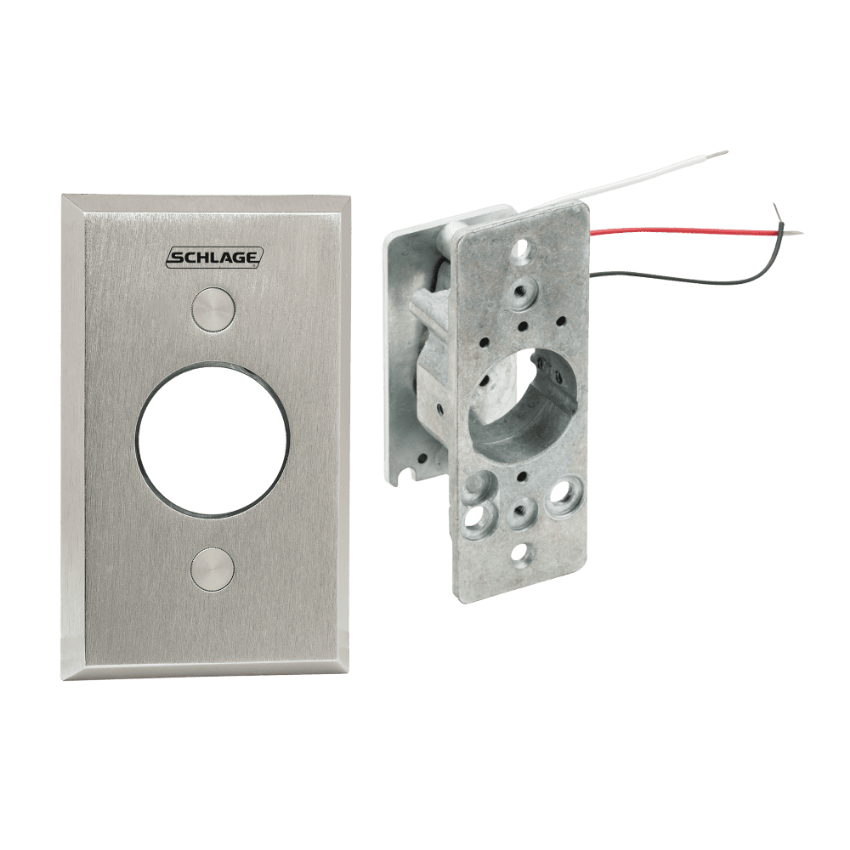

Schlage 653-1414 DPDT Maintained Bi-Directional Keyswitch ATS Anti-Tamper Switch
Schlage 653-1414 DPDT Maintained Bi-Directional Keyswitch with L2 LEDs

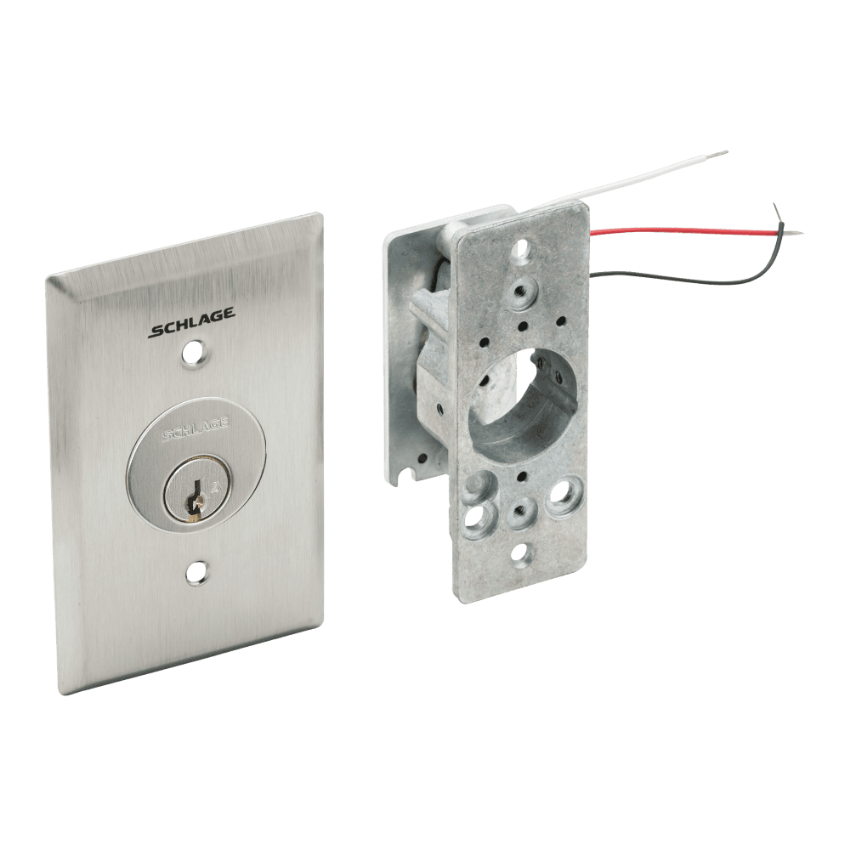

Schlage 653-1414 DPDT Maintained Bi-Directional Keyswitch with Cylinder

Schlage

SKU: 653-1414

Schlage 653-1414 DPDT Maintained Bi-Directional Keyswitch

Available (3 - 4 Weeks)

The Schlage 653-1414 is a 650 Series DPDT maintained bi-directional keyswitch for Schlage 650 Series keyswitch applications, providing maintained switching in both key-turn directions.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

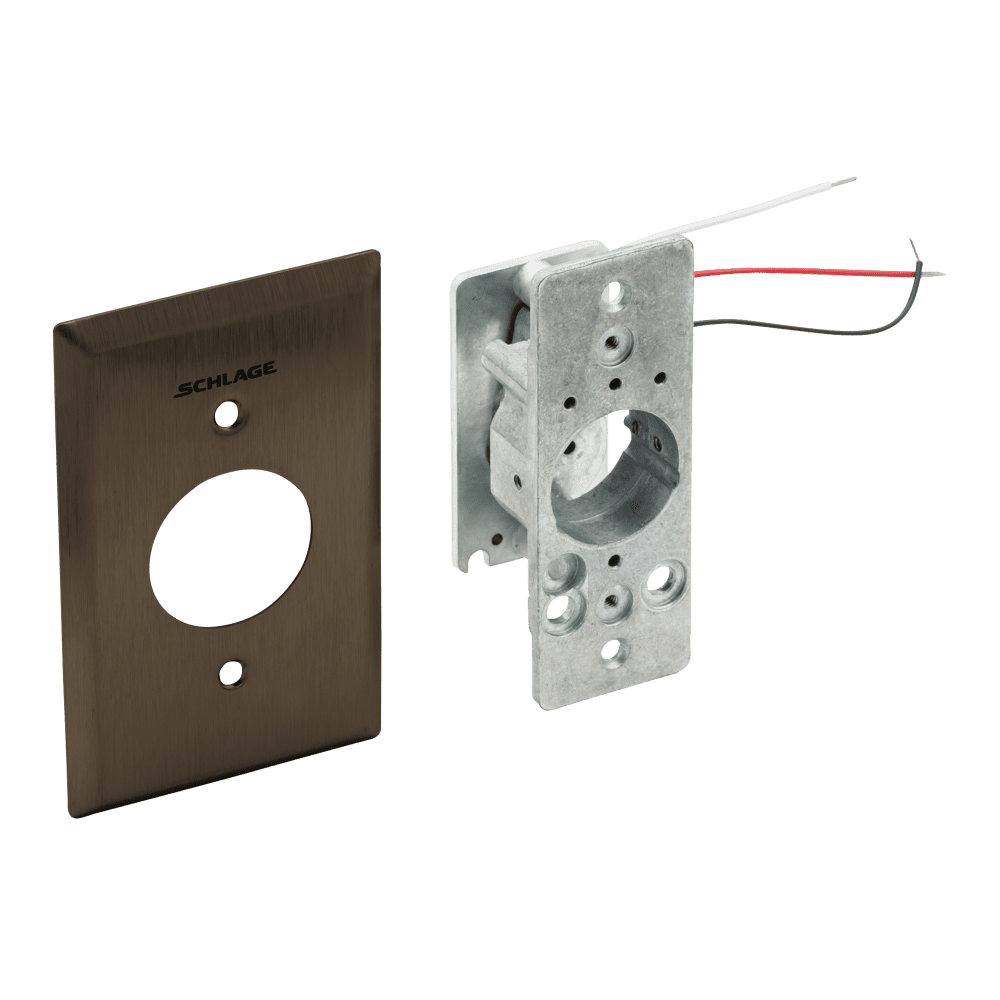

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

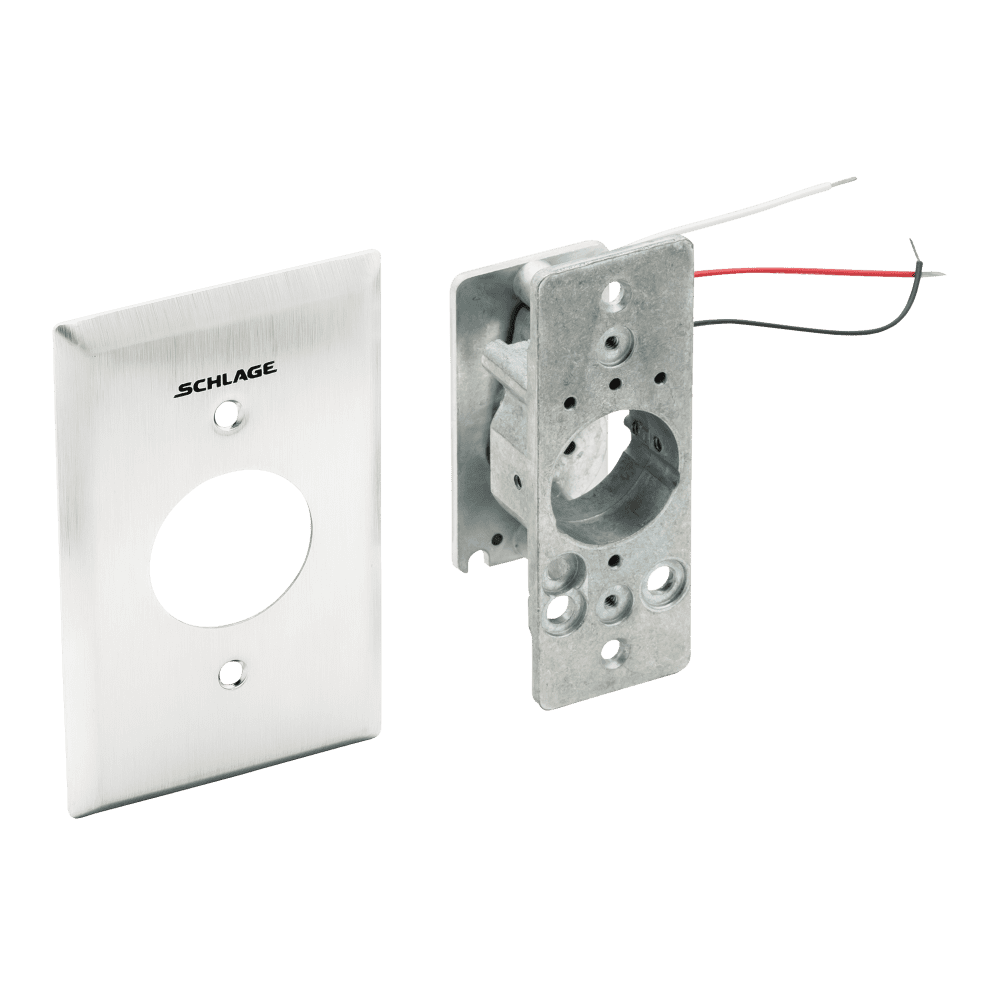

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

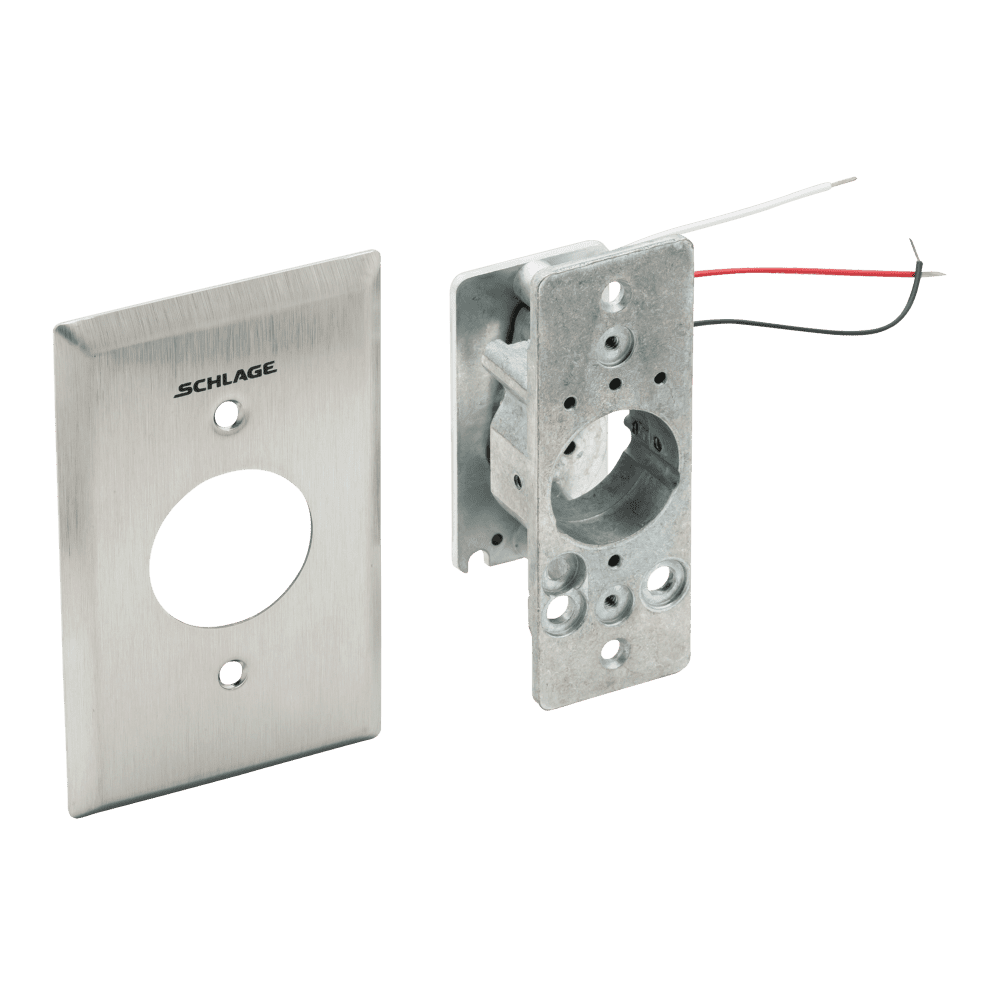

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

The Schlage 653-1414 provides maintained switching through clockwise and counterclockwise key operation, with two DPDT switching functions. The 650 Series keyswitches are used for applications such as access control, auto-operator control, and overhead doors.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-1414
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Maintained Bi-Directional Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: DPDT Maintained, Bi-Directional switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$620.00
$434.00
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-1414?
The Schlage 653-1414 is a 650 Series keyswitch configured as two DPDT maintained bi-directional functions.
What function does the 653-1414 provide?
It provides CCW-DPDT-CW maintained-maintained operation, allowing maintained switching in both key-turn directions.
What cylinders are compatible with the 650 Series keyswitch?
The 650 Series operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders having a straight-type cam.
Is the 653-1414 a momentary keyswitch?
No. The 653-1414 is specified as a maintained bi-directional keyswitch.
Is the Schlage 653-1414 an OEM replacement part?
Yes. The Schlage 653-1414 is an OEM Schlage replacement part.
