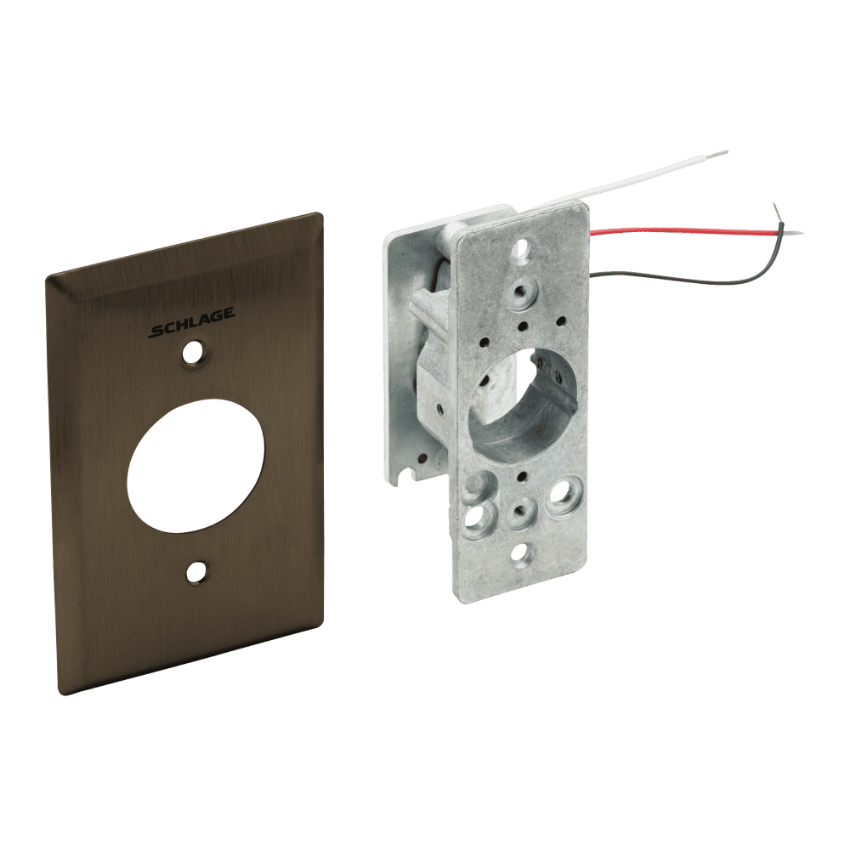

Schlage 653-1415 DPDT Maintained x DPDT Momentary Keyswitch SF-613 Oil Rubbed Bronze

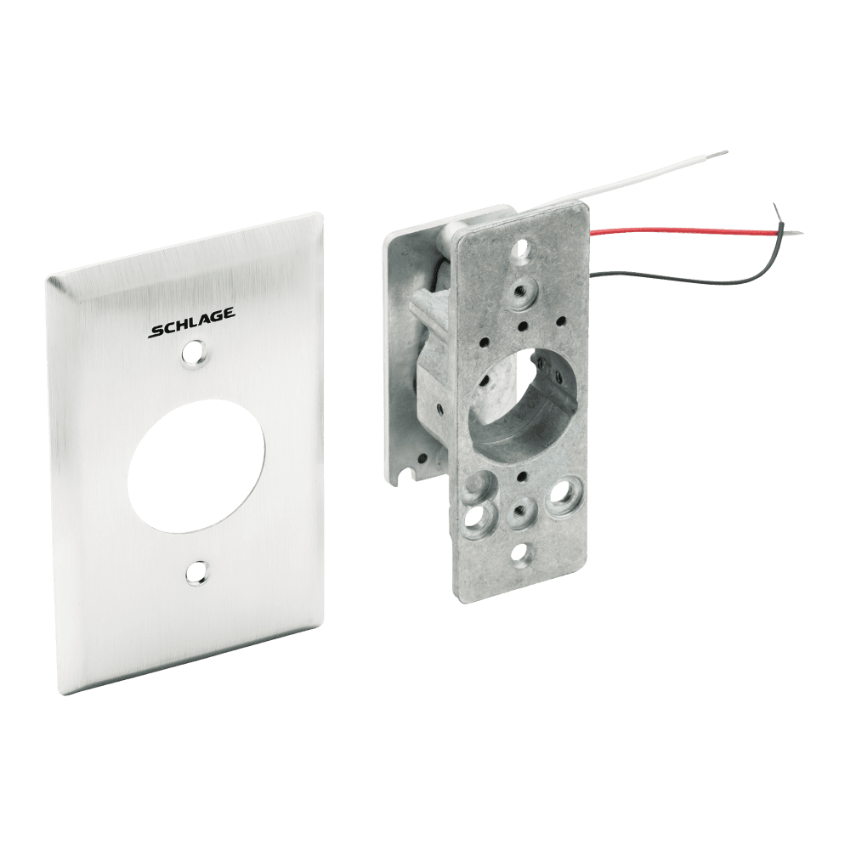

Schlage 653-1415 DPDT Maintained x DPDT Momentary Keyswitch SF-625 Bright Chrome

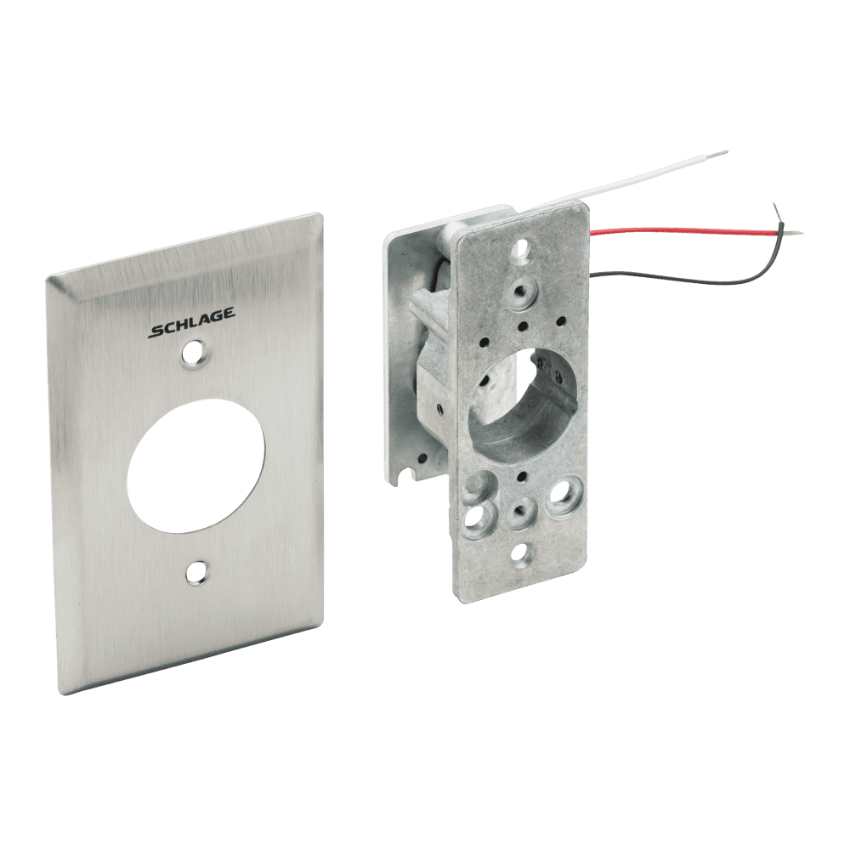

Schlage 653-1415 DPDT Maintained x DPDT Momentary Keyswitch SF-626 Satin Chrome

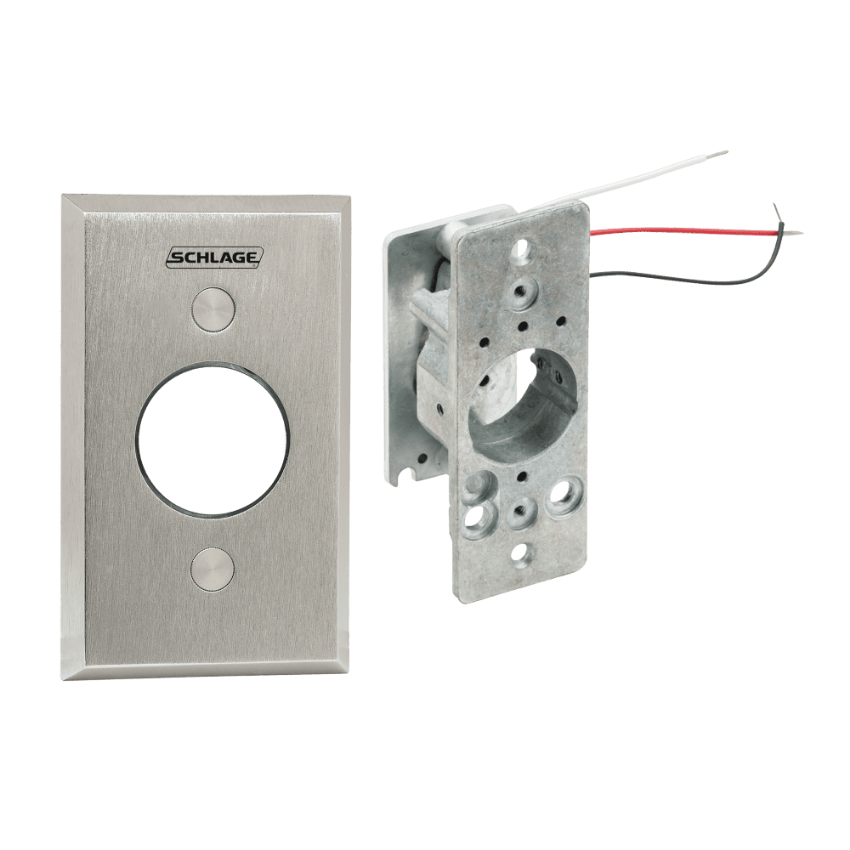

Schlage 653-1415 DPDT Maintained x DPDT Momentary Keyswitch ATS Anti-Tamper Switch
Schlage 653-1415 DPDT Maintained x DPDT Momentary Keyswitch with L2 LEDs

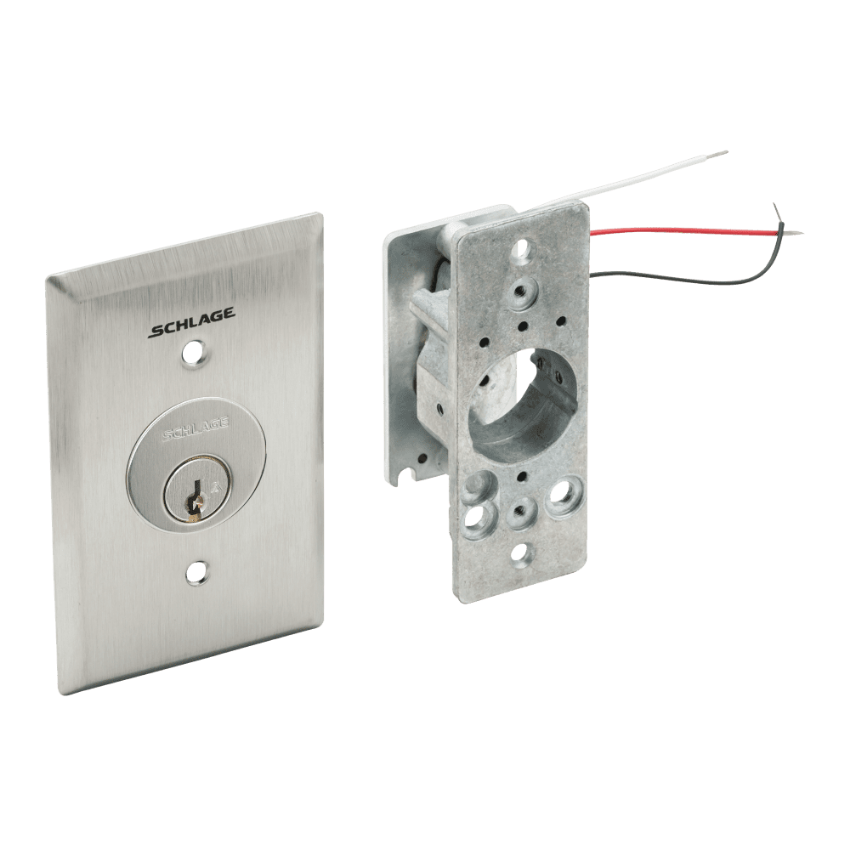

Schlage 653-1415 DPDT Maintained x DPDT Momentary Keyswitch with Cylinder

Schlage

SKU: 653-1415

Schlage 653-1415 DPDT Maintained x DPDT Momentary Keyswitch

In stock

The Schlage 653-1415 is a 650 Series DPDT keyswitch configured for maintained action in one direction and momentary action in the opposite direction.
*

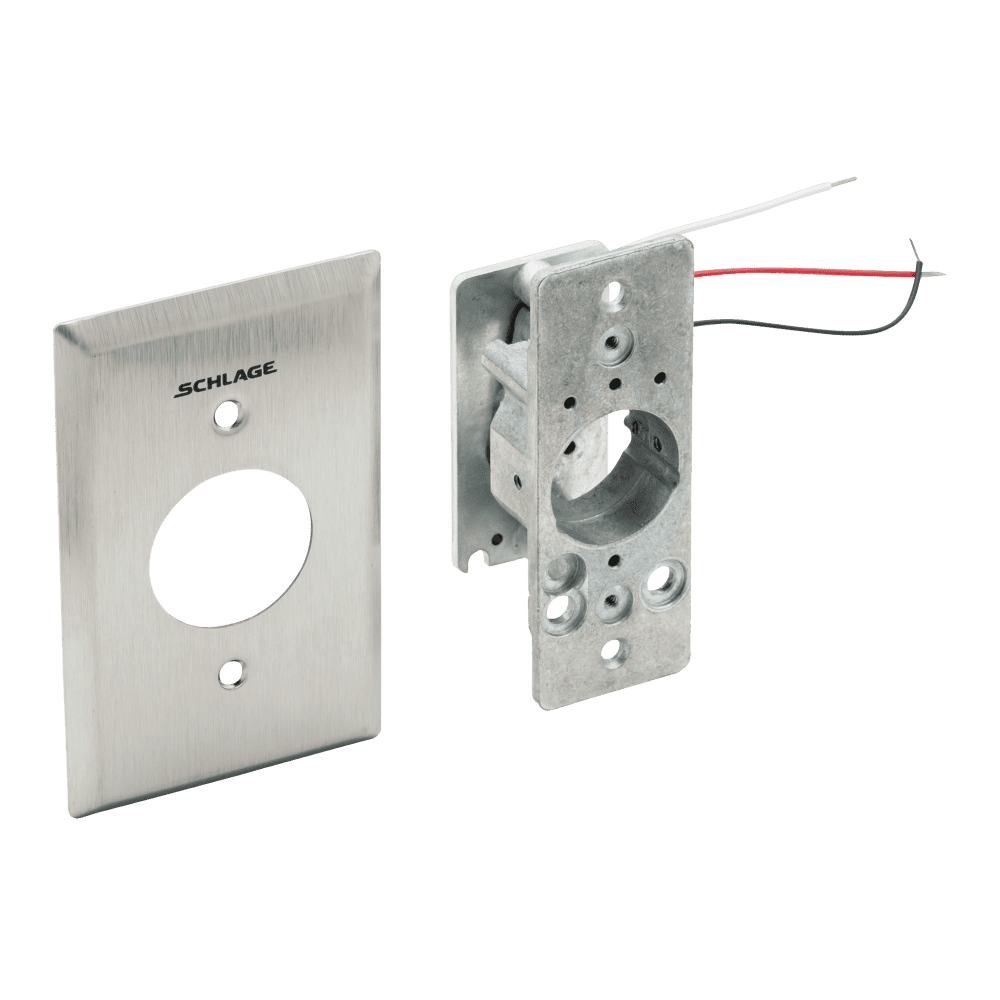

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

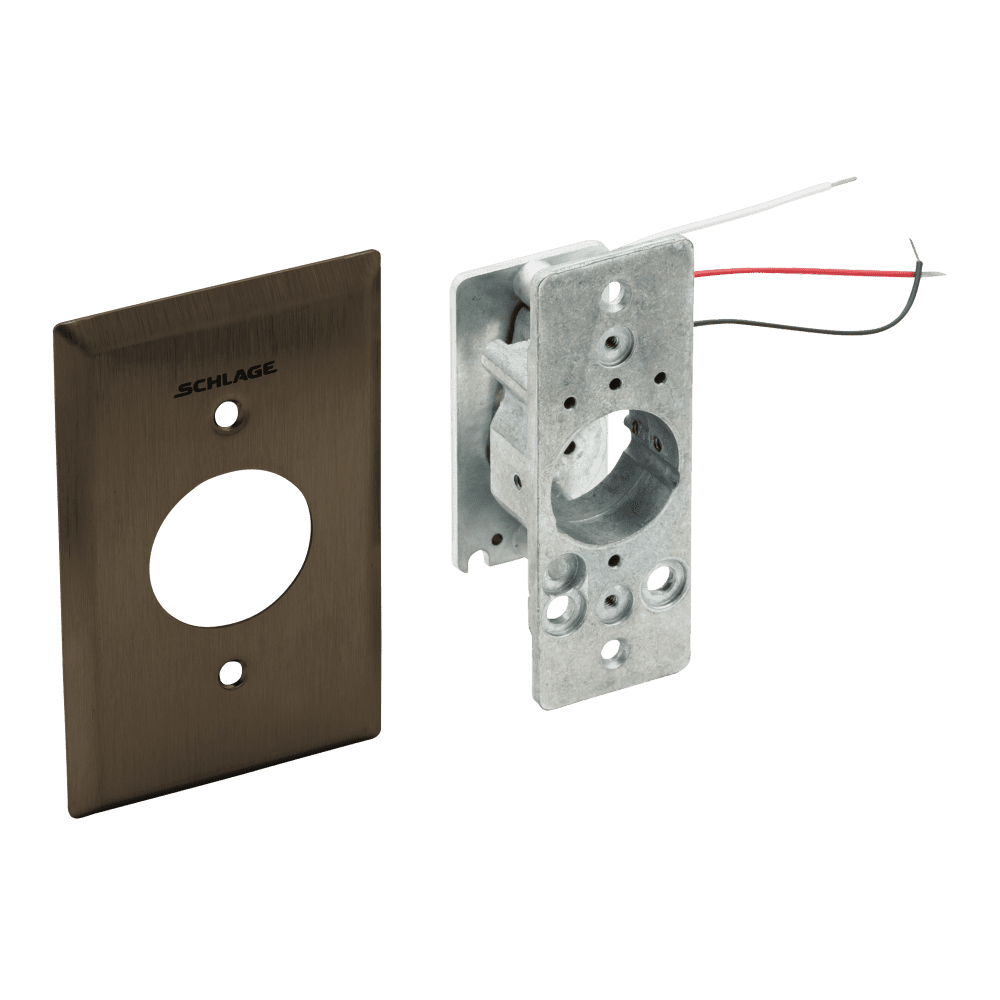

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

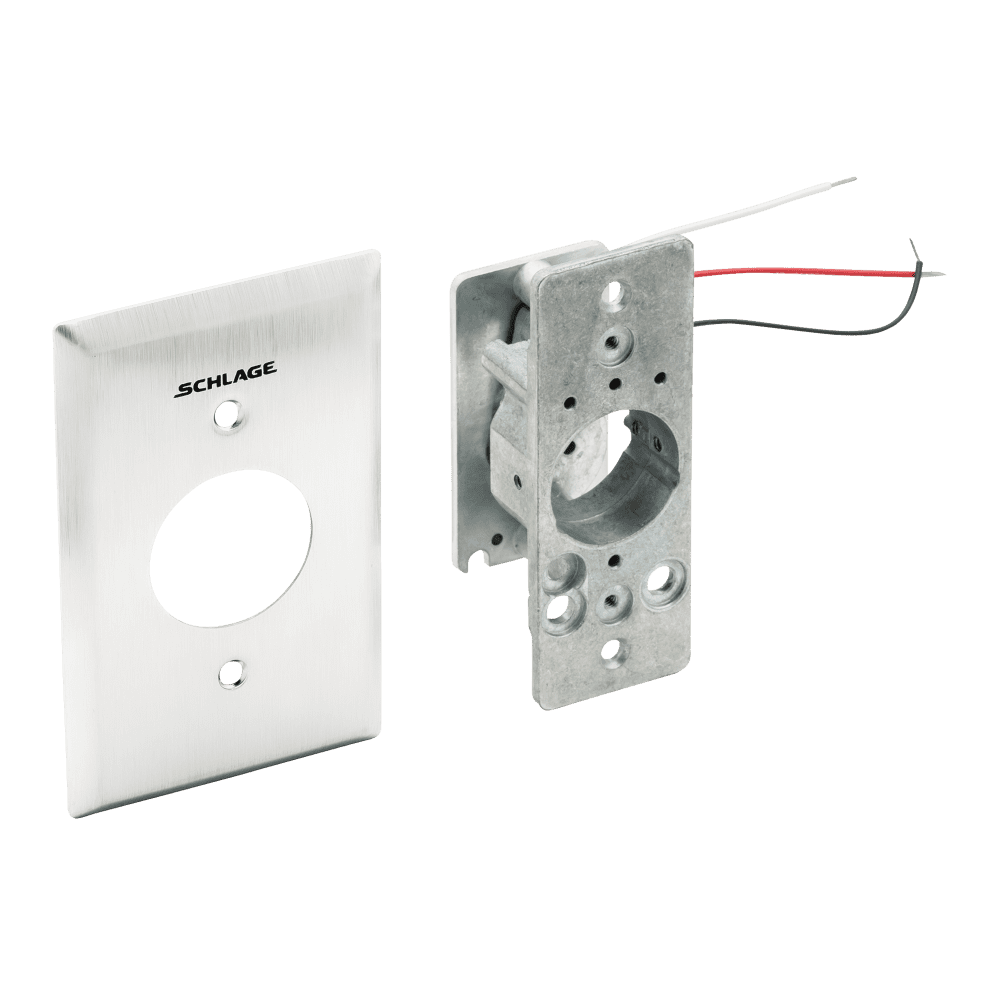

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-1415 is a 650 Series DPDT maintained x DPDT momentary keyswitch configuration. This model is providing maintained switching in one key-turn direction and momentary switching in the opposite direction. The 650 Series uses magnetic spring technology to configure maintained or momentary action.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-1415
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Maintained x DPDT Momentary Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: DPDT maintained x DPDT momentary switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$620.00
$434.00
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-1415?
It is a 650 Series DPDT keyswitch with maintained action in one direction and momentary action in the opposite direction.
What type of switching does the 653-1415 provide?
It provides DPDT maintained x DPDT momentary switching.
What cylinder does the 653-1415 use?
The 650 Series operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" mortise cylinders with a straight-type cam.
Is the Schlage 653-1415 a momentary keyswitch?
Yes. The Schlage 653-1415 is a DPDT maintained x DPDT momentary keyswitch, providing maintained action in one direction and momentary action in the opposite direction.
Is the Schlage 653-1415 an OEM replacement part?
Yes. The Schlage 653-1415 is an OEM Schlage replacement part.
