Picture of Schlage

SKU: 653-1415-NS

Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch

Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile

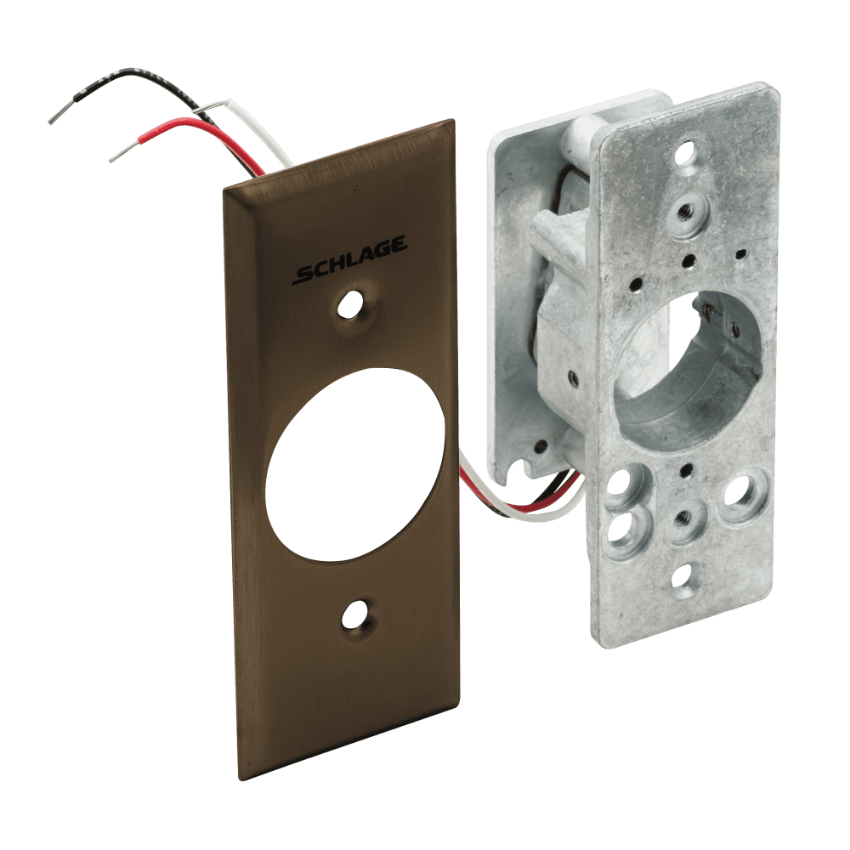

Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile Oil Rubbed Bronze
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile Satin Chrome
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile Bright Chrome

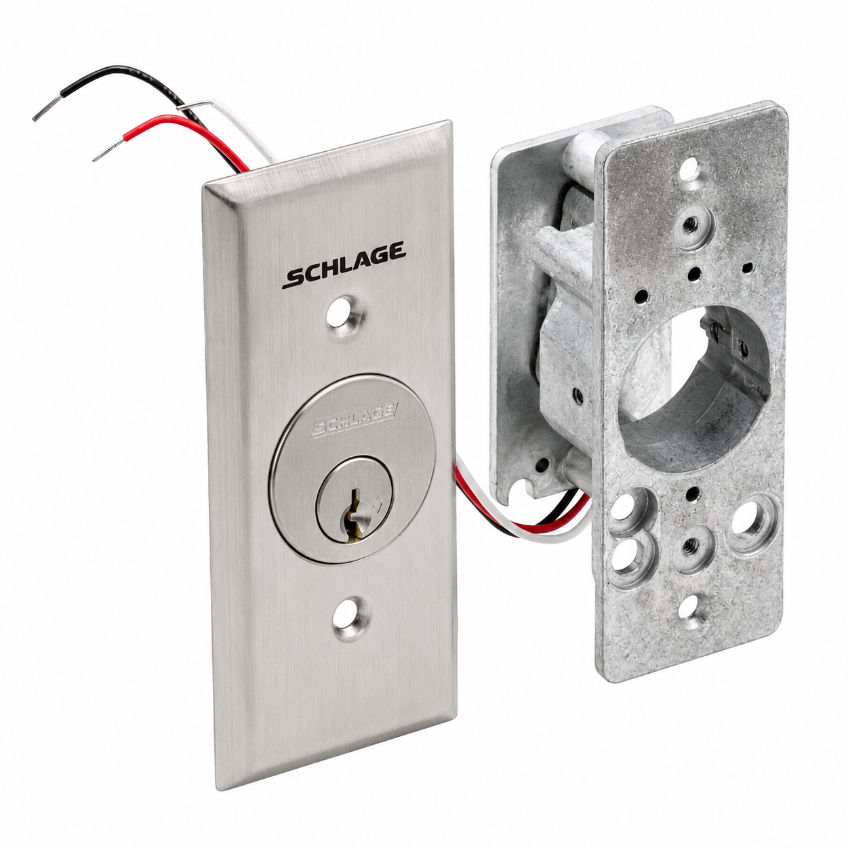

Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile with Cylinder
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile with Red and Green LEDs

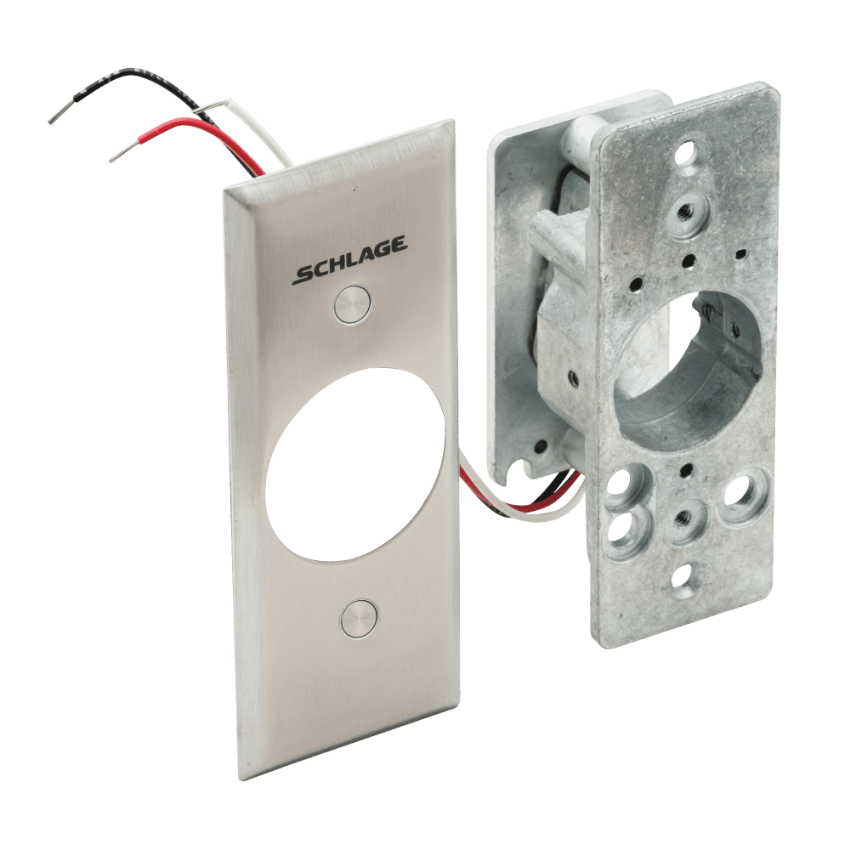

Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile with Anti-Tamper Switch
Dynamic Image
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile Oil Rubbed Bronze
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile Satin Chrome
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile Bright Chrome
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile with Cylinder
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile with Red and Green LEDs
Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch, Narrow Stile with Anti-Tamper Switch

Schlage

SKU: 653-1415-NS

Schlage 653-1415-NS DPDT Maintained x DPDT Momentary Keyswitch

Available (3 - 4 Weeks)

The Schlage 653-1415-NS is a 650 Series DPDT keyswitch with maintained action in one direction and momentary action in the other. The NS configuration uses a narrow stile stainless steel plate.
*

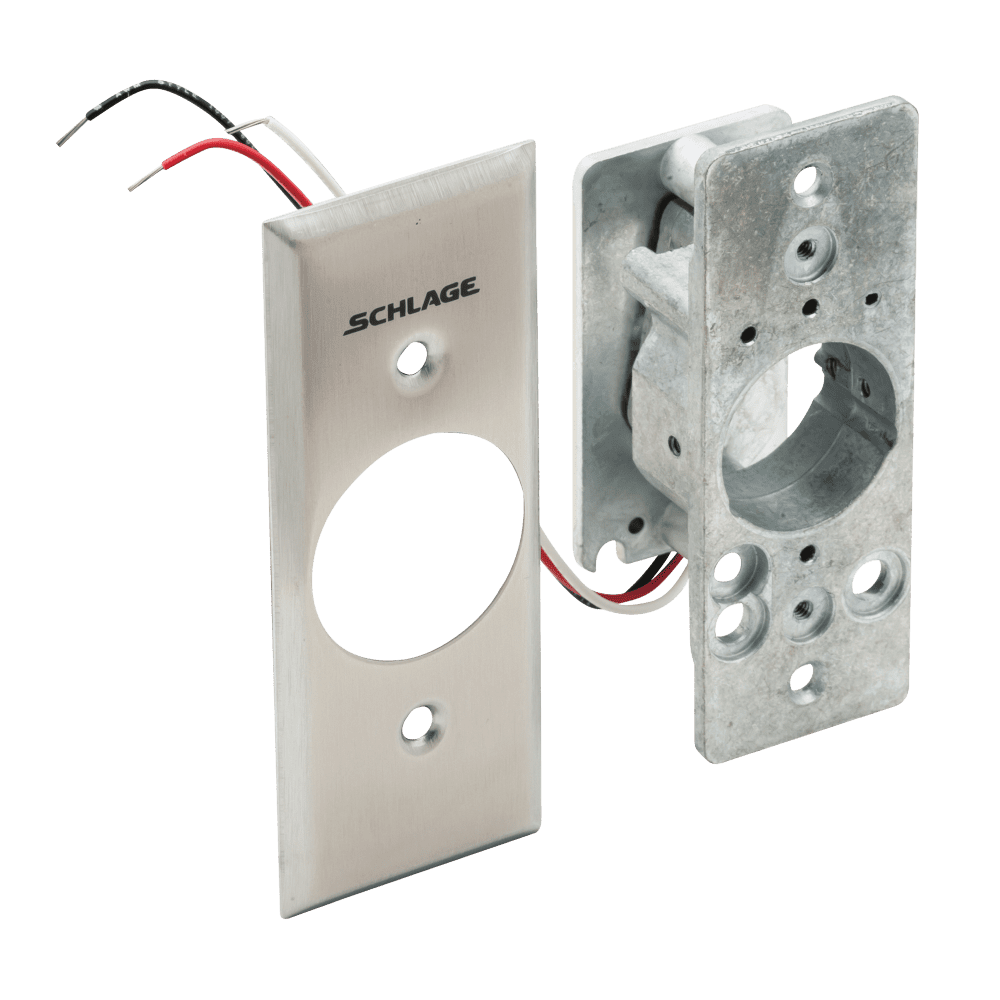

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

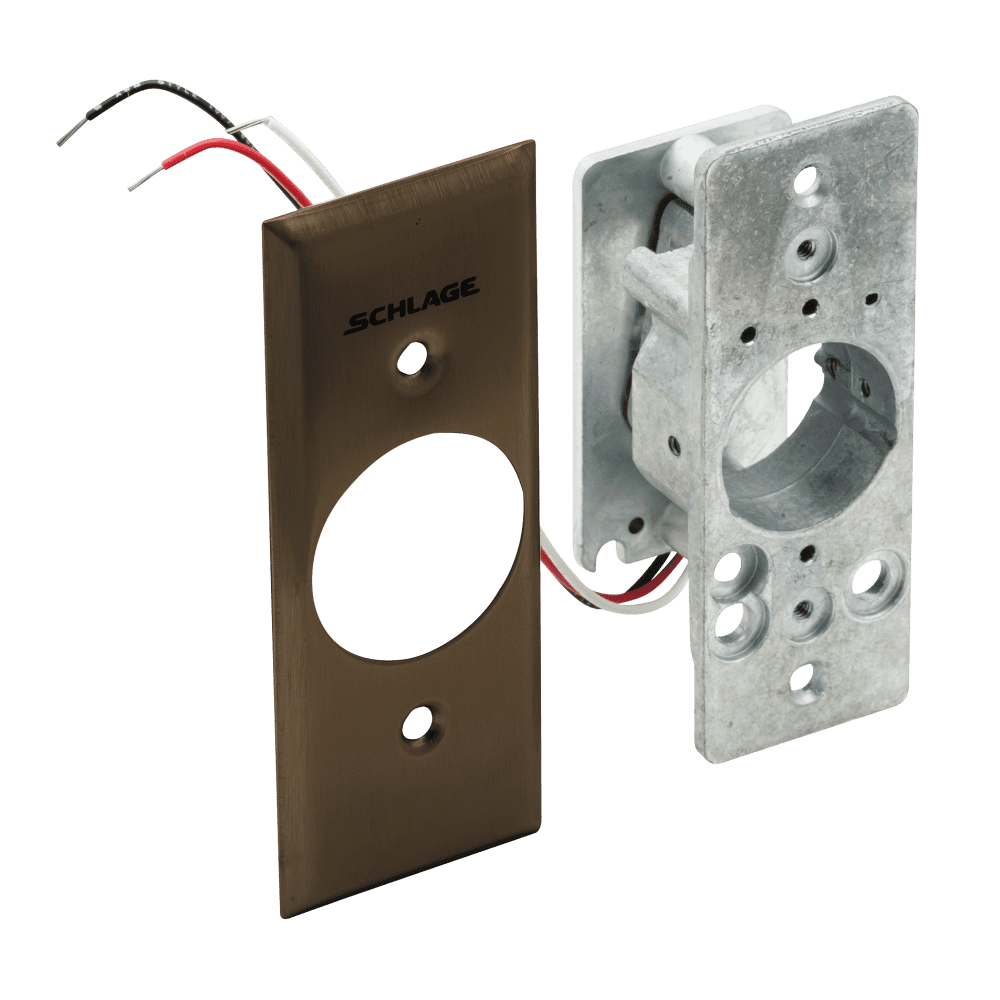

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

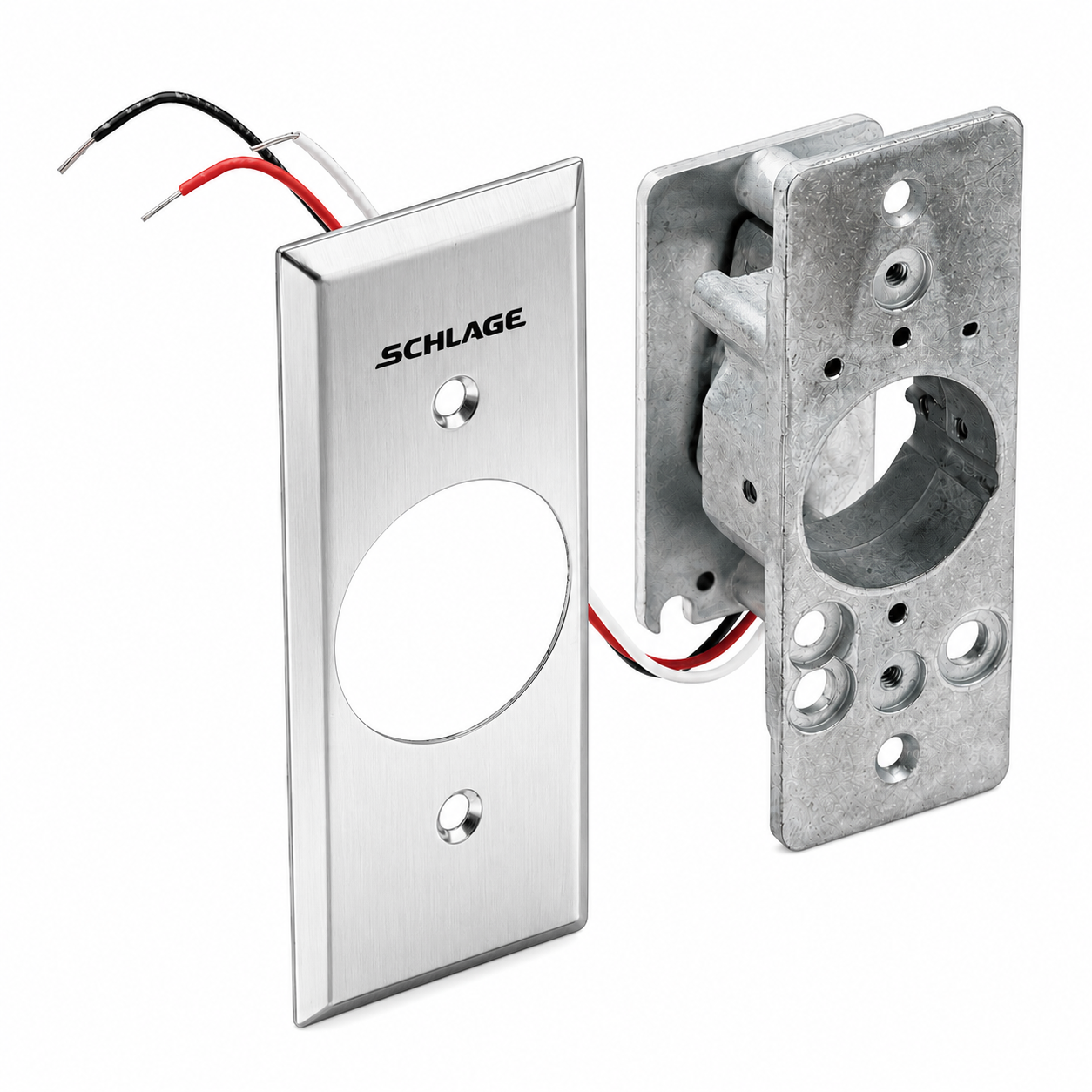

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-1415-NS is designed for 650 Series access control applications, the Schlage 653-1415-NS provides maintained switching in one key-turn direction and momentary switching in the opposite direction. The keyswitch uses magnetic spring technology and operates with compatible mortise cylinders having a straight type cam.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-1415-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Maintained x DPDT Momentary Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 1-3/4" x 4-1/2"
Faceplate Type: Narrow Stile
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Maintained and momentary switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$620.00
$434.00
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-1415-NS?
The Schlage 653-1415-NS is a 650 Series keyswitch configured as DPDT maintained in one direction and DPDT momentary in the other.
What function does the 653-1415-NS provide?
It provides maintained-momentary operation, with maintained switching in one key-turn direction and momentary switching in the opposite direction.
What does the NS designation mean on the 653-1415-NS?
NS means a narrow stile configuration with a 1-3/4" x 4-1/2" stainless steel faceplate.
What cylinders are compatible with the 653-1415-NS?
The 650 Series operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinders having a straight-type cam.
Is the Schlage 653-1415-NS an OEM replacement part?
Yes. The Schlage 653-1415-NS is an OEM Schlage replacement part.
