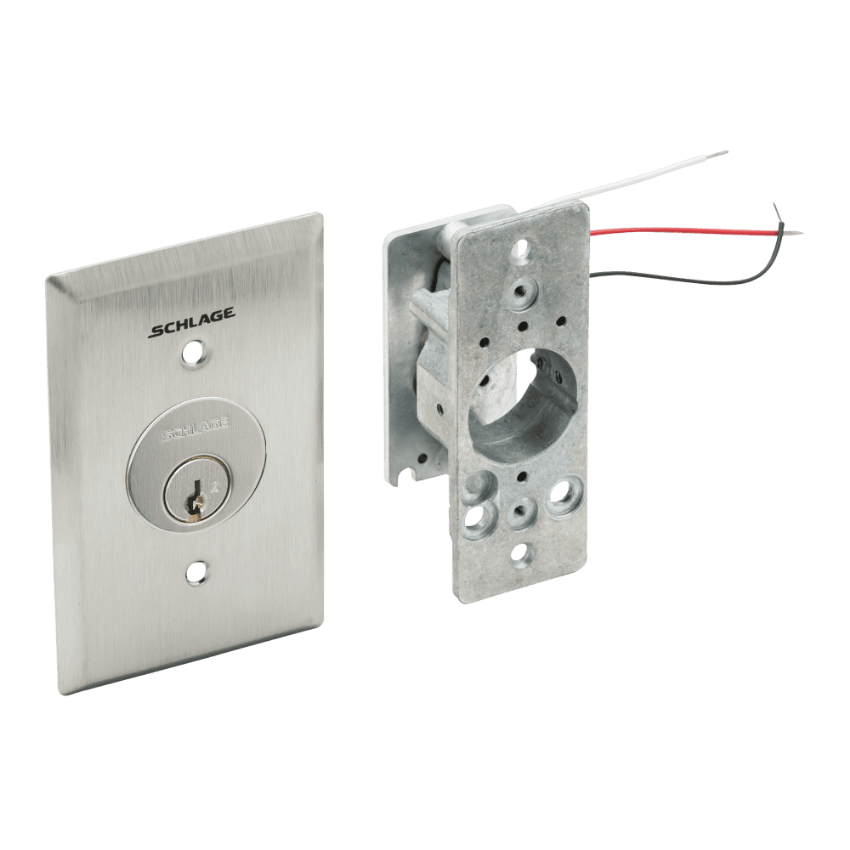

Schlage 653-15 DPDT Momentary Keyswitch with Cylinder
Dynamic Image
Schlage 653-15 DPDT Momentary Keyswitch

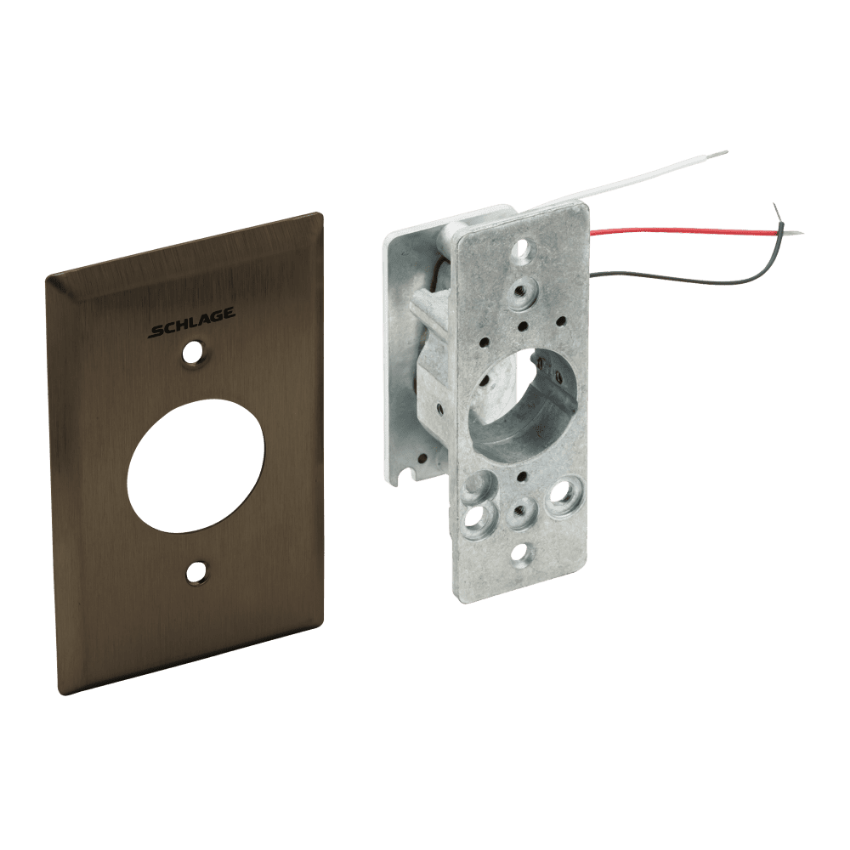

Schlage 653-15 DPDT Momentary Keyswitch SF-613 Oil Rubbed Bronze

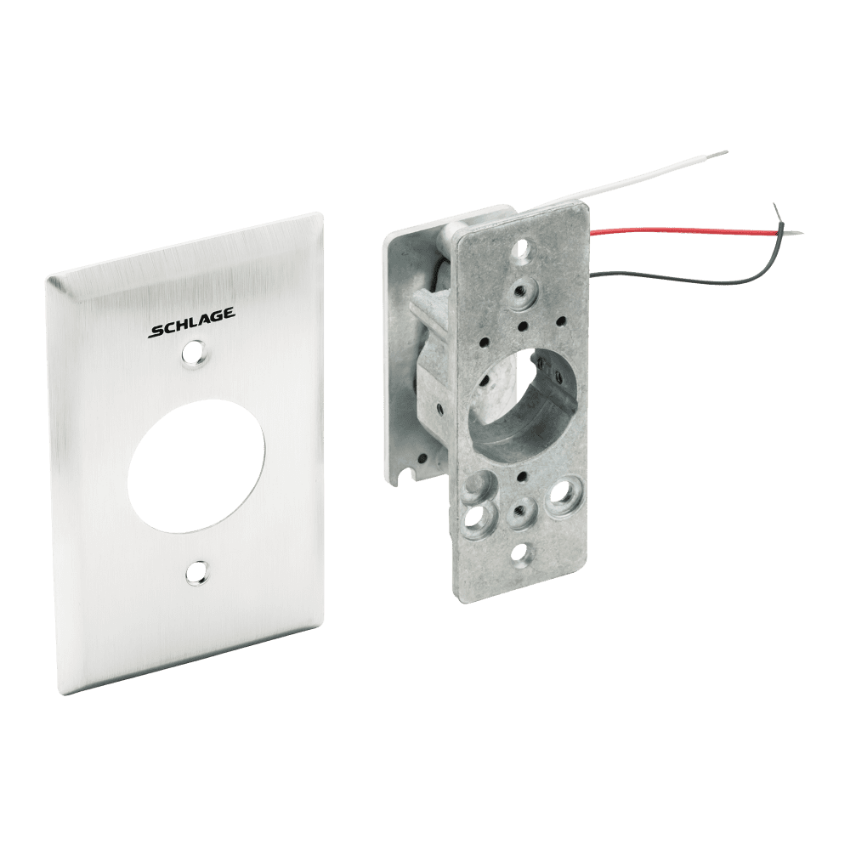

Schlage 653-15 DPDT Momentary Keyswitch SF-625 Bright Chrome
Schlage 653-15 DPDT Momentary Keyswitch SF-626 Satin Chrome

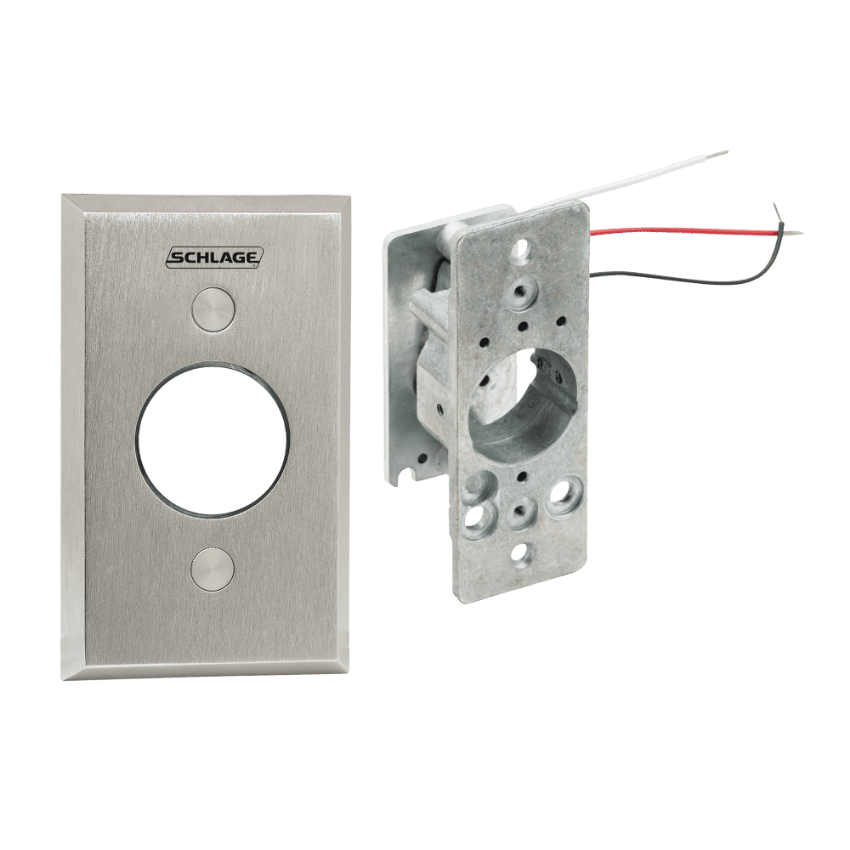

Schlage 653-15 DPDT Momentary Keyswitch ATS Anti-Tamper Switch

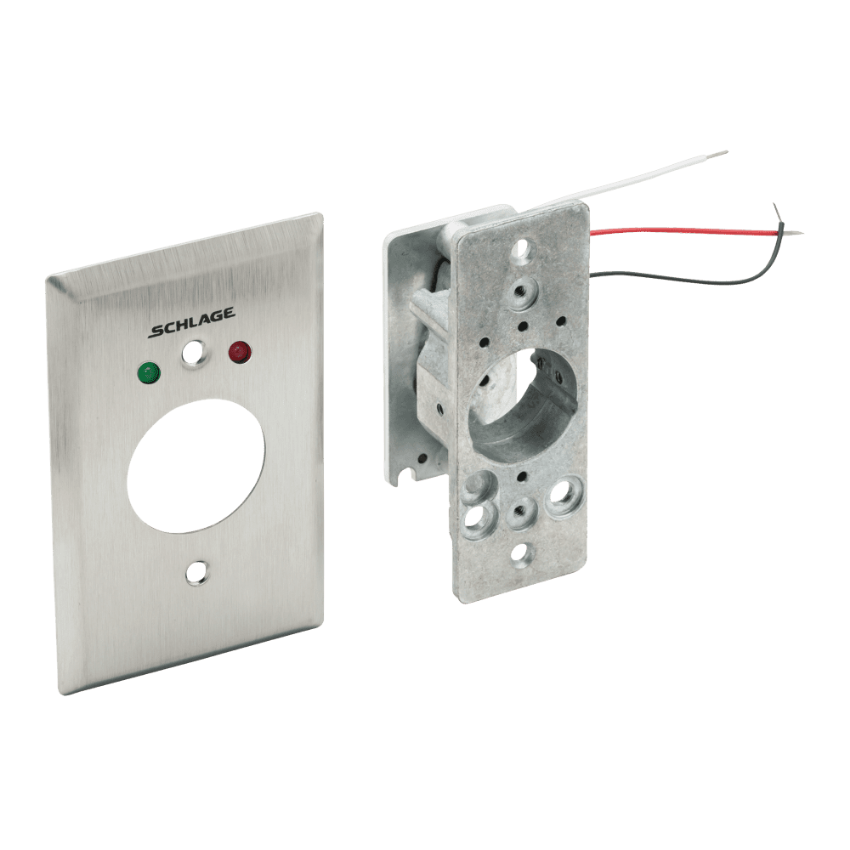

Schlage 653-15 DPDT Momentary Keyswitch with L2 LEDs
Schlage 653-15 DPDT Momentary Keyswitch with Cylinder

Schlage

SKU: 653-15

Schlage 653-15 DPDT Momentary Keyswitch

In stock

Schlage 653-15 is a DPDT momentary keyswitch for electronic access control applications.
*

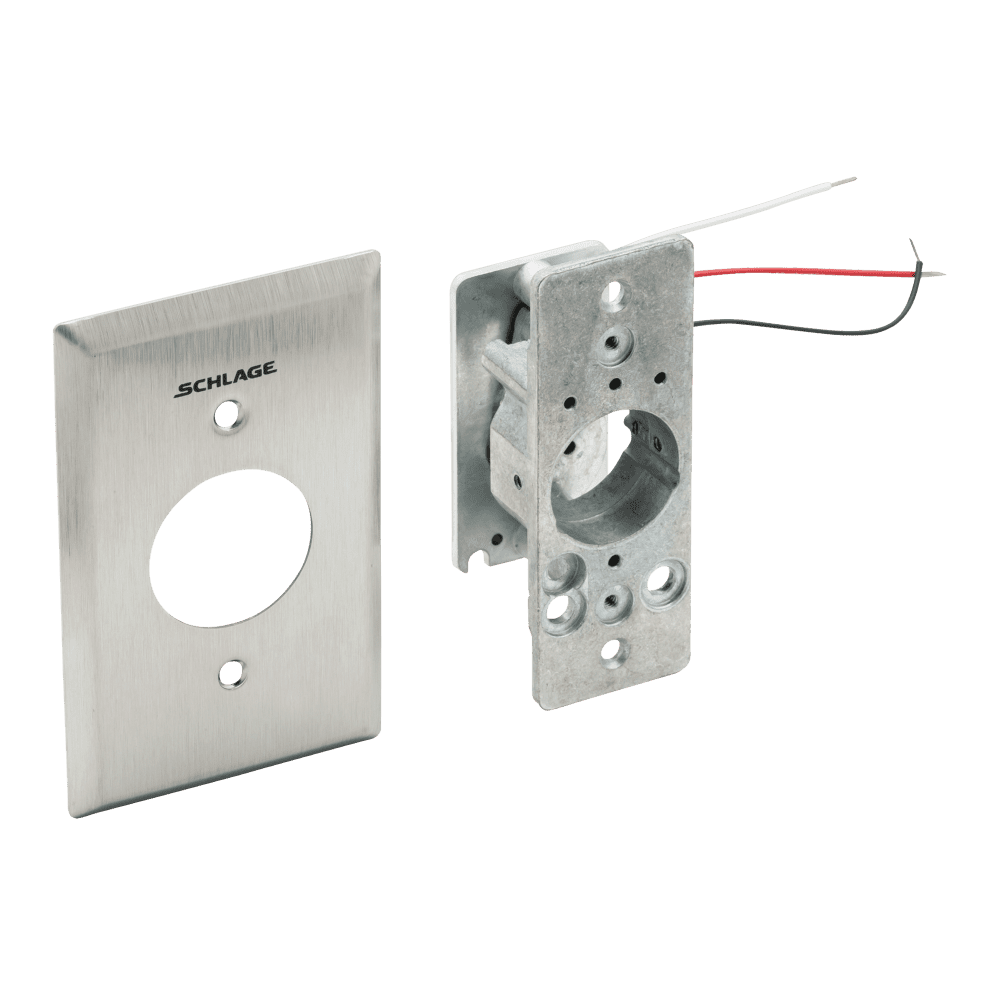

  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

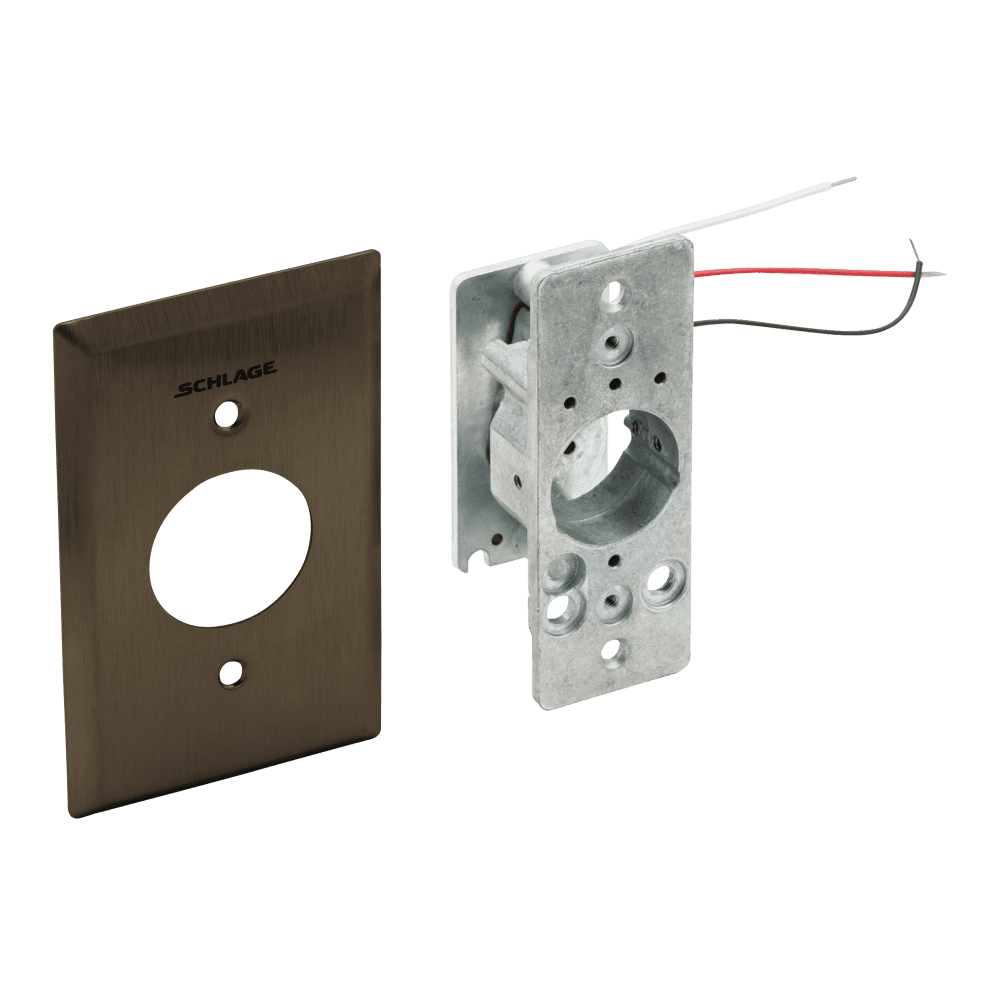

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

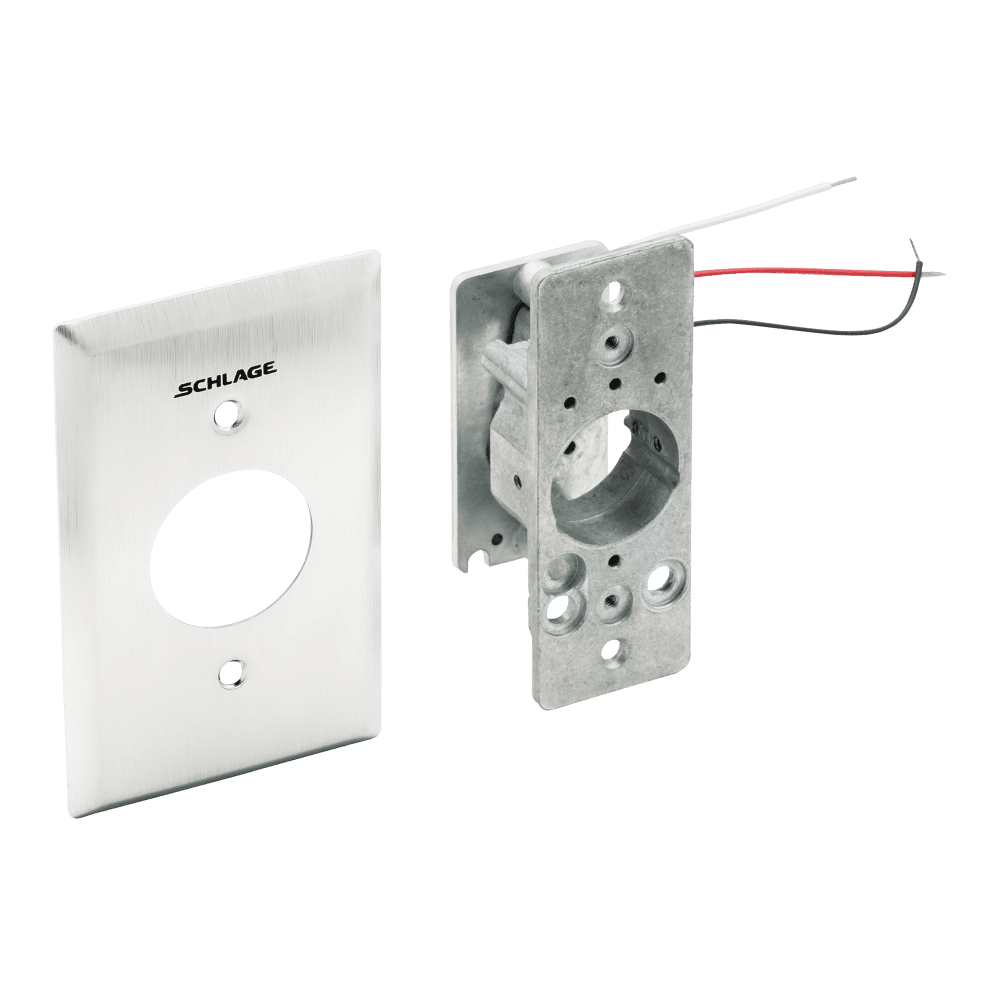

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-15 is a DPDT momentary keyswitch in the Schlage 650 Series. The 653-15 provides double-pole, double-throw momentary switching action and is activated by a key turn in a single direction.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-15
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Momentary Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: DPDT momentary single-direction switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$469.00
$328.30
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-15?
The 653-15 is a Schlage 650 Series DPDT momentary keyswitch.
What type of switching action does the 653-15 provide?
It provides DPDT momentary action in a single direction.
What does the 653-15 fit?
It is part of the Schlage 650 Series keyswitch family and operates with compatible straight-cam mortise cylinders.
What cylinders can the 653-15 operate with?
It operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" mortise cylinders having a straight type cam.
Is the Schlage 653-15 an OEM replacement part?
Yes. The Schlage 653-15 is an OEM Schlage replacement part.
