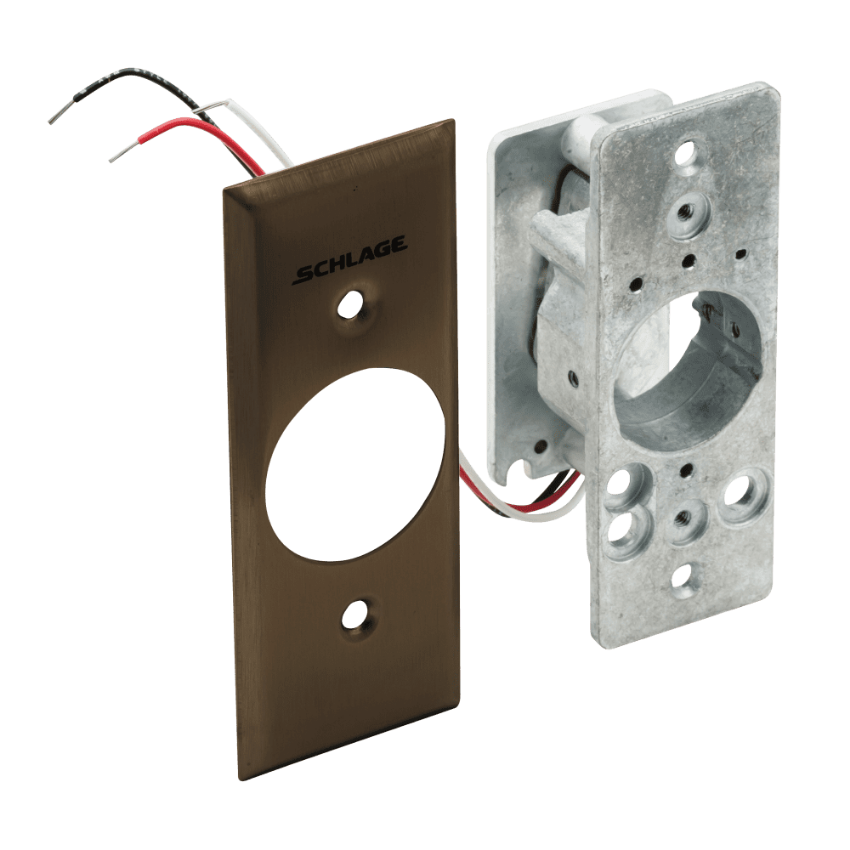

Schlage 653-15-NS DPDT Momentary Keyswitch, Narrow Stile Oil Rubbed Bronze

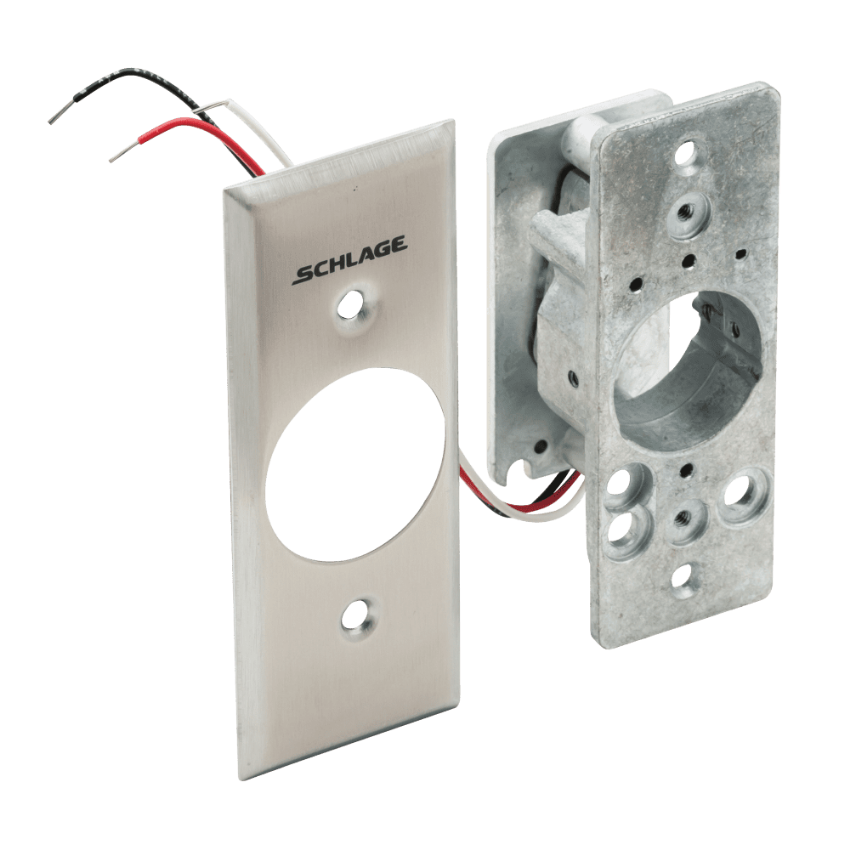

Schlage 653-15-NS DPDT Momentary Keyswitch, Narrow Stile Satin Chrome
Schlage 653-15-NS DPDT Momentary Keyswitch, Narrow Stile Bright Chrome

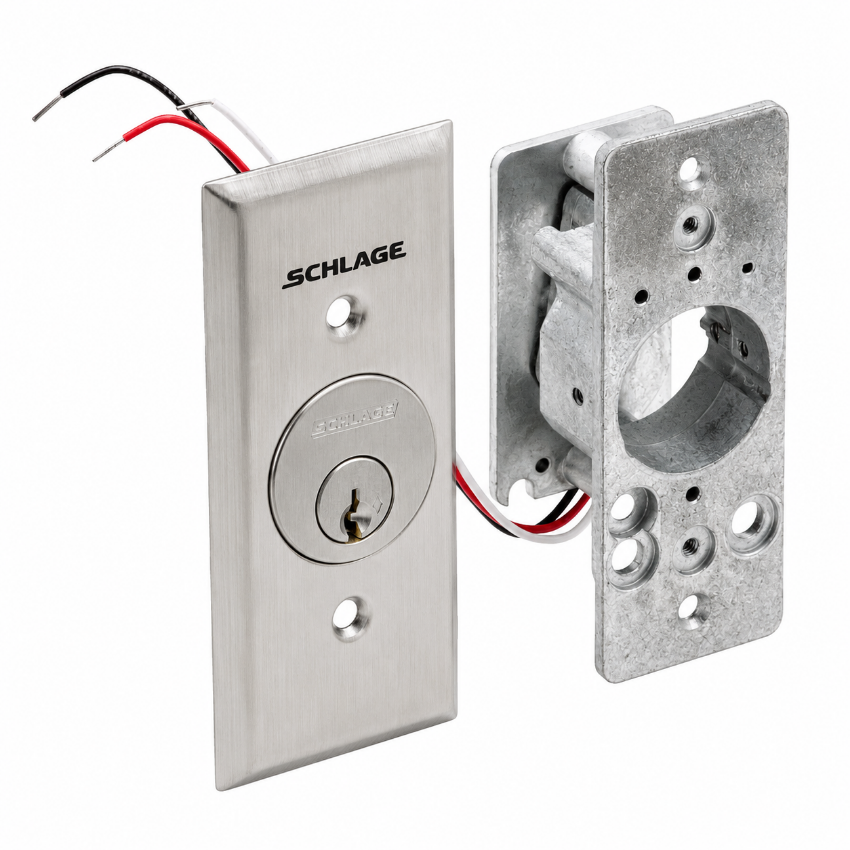

Schlage 653-15-NS DPDT Momentary Keyswitch, Narrow Stile with Cylinder
Schlage 653-15-NS DPDT Momentary Keyswitch, Narrow Stile with Red and Green LEDs
Schlage 653-15-NS DPDT Momentary Keyswitch, Narrow Stile with Anti-Tamper Switch

Schlage

SKU: 653-15-NS

Schlage 653-15-NS DPDT Momentary Keyswitch, Narrow Stile

Available (3 - 4 Weeks)

Schlage 653-15-NS is a 650 Series DPDT momentary keyswitch with a narrow stile stainless steel plate for applications such as auto operators, overhead doors, and access control openings.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available

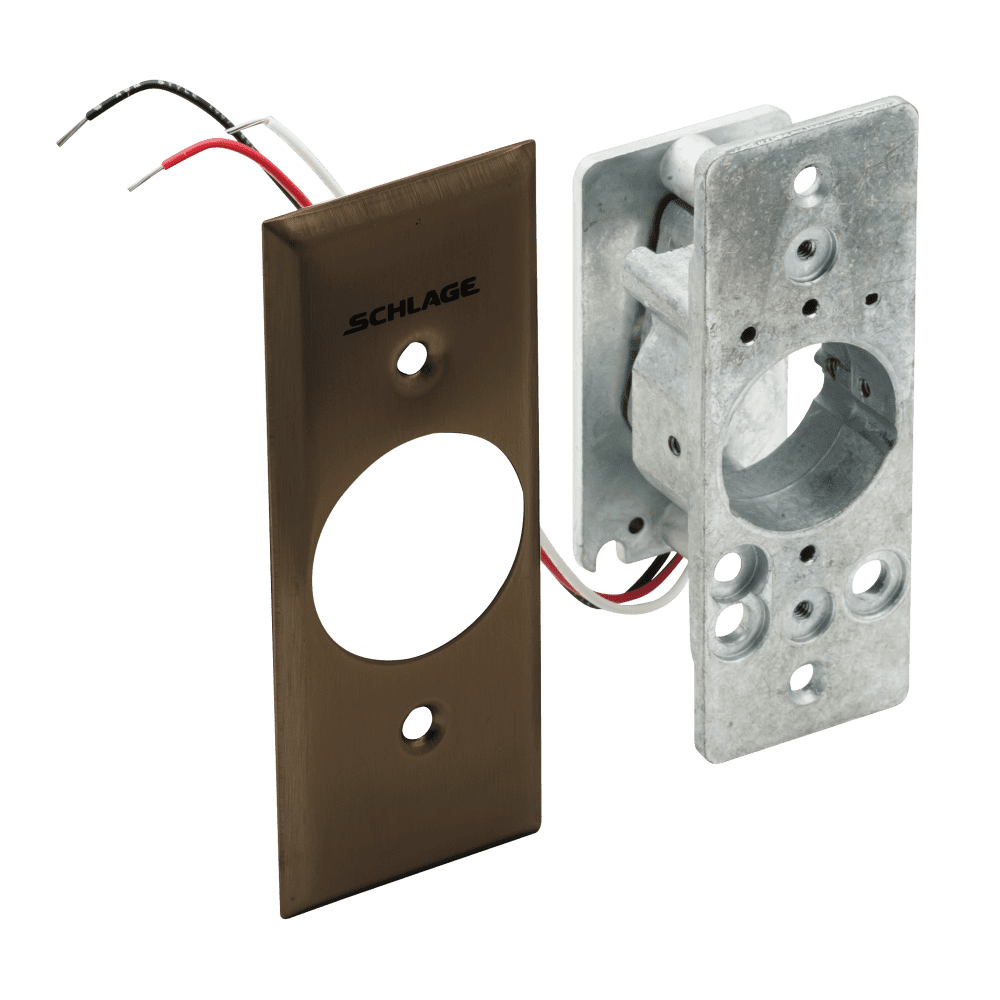

  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available

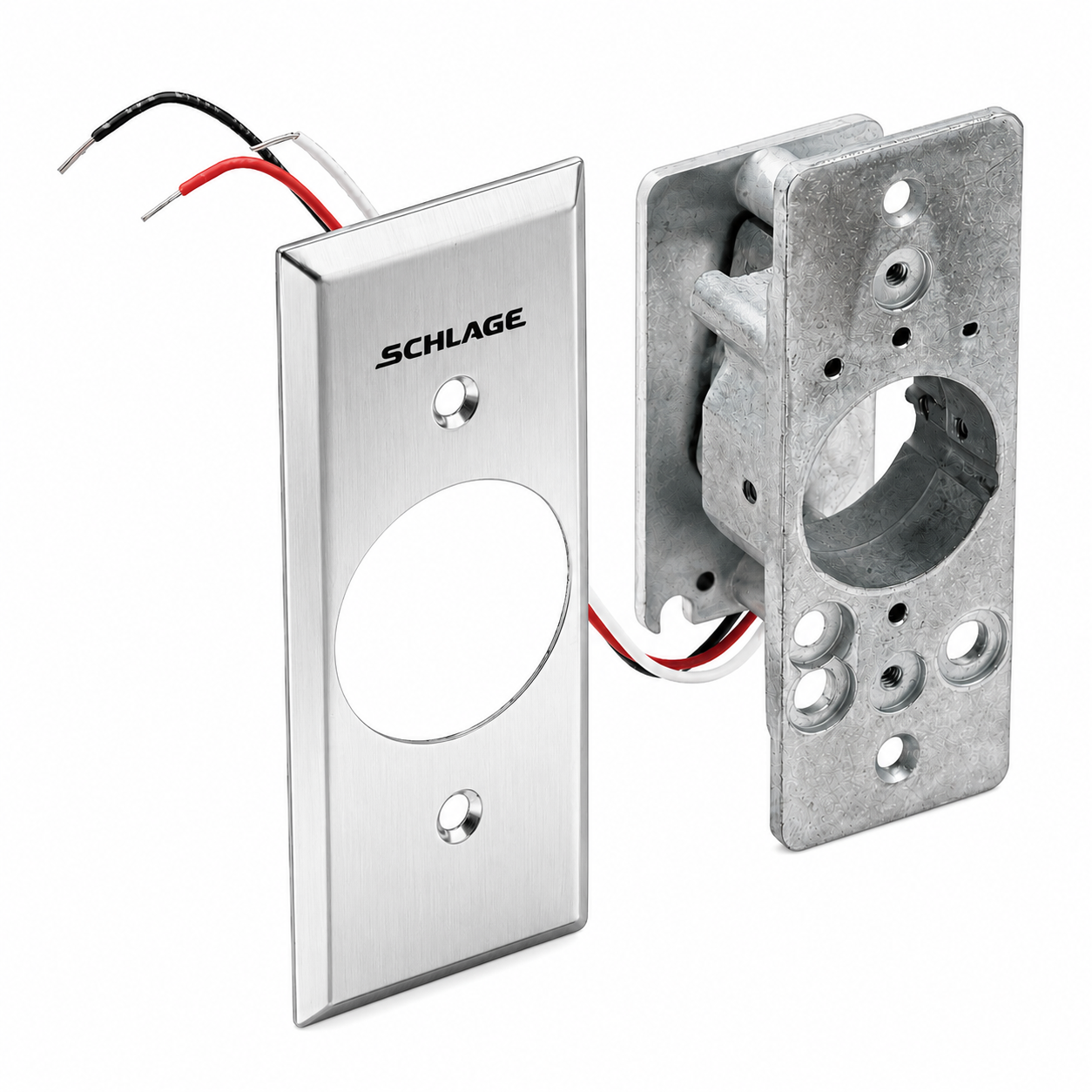

  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available

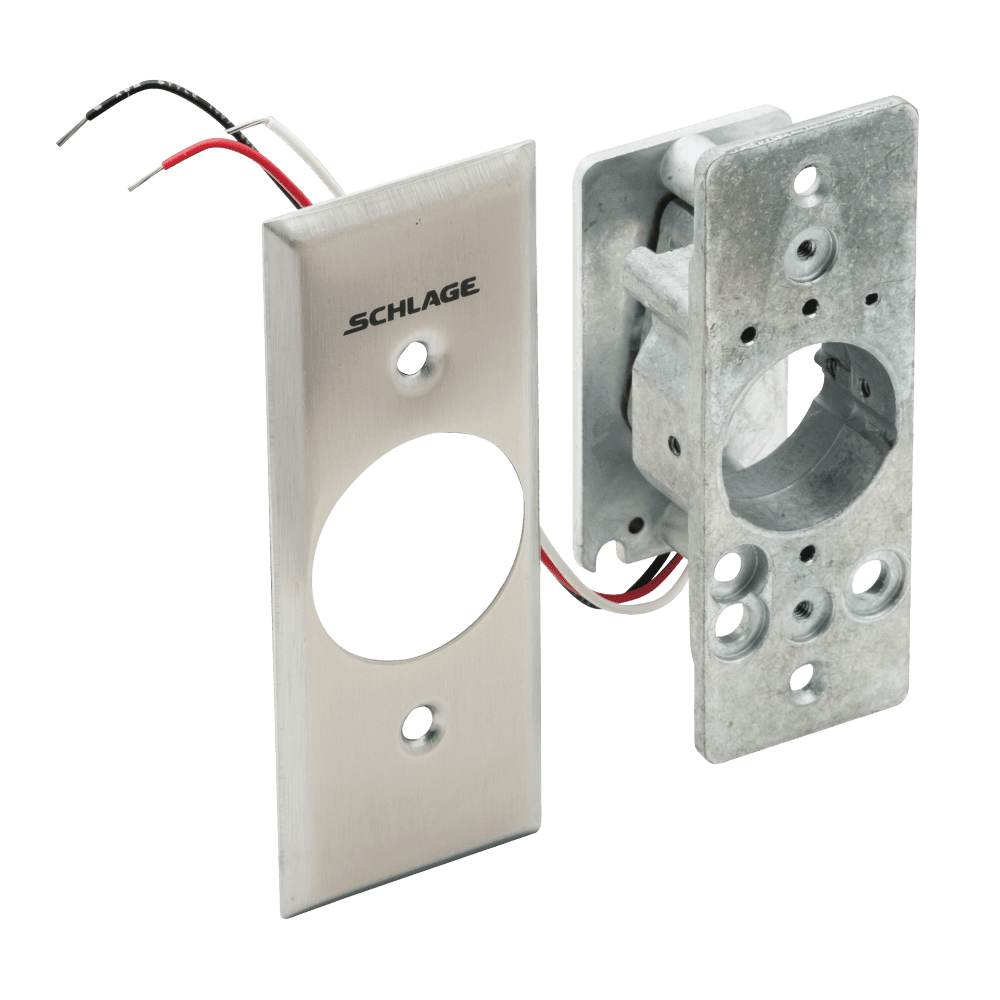

  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-15-NS is a 650 Series DPDT Momentary Keyswitch, Narrow Stile. The 653-15-NS provides double-pole, double-throw momentary switching action and is activated by a key turn in a single direction.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-15-NS
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Momentary Keyswitch, Narrow Stile
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 1-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: Narrow stile DPDT momentary single-direction switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$406.00
$284.20
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-15-NS?
It is a 650 Series DPDT momentary keyswitch configured with the NS narrow stile option.
What function does the 653-15 provide?
The 653-15 provides DPDT momentary single-direction operation.
What does the NS option mean?
NS means narrow stile stainless steel plate, measuring 1-3/4" x 4-1/2".
What cylinders are compatible with the 650 Series keyswitch?
It operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" mortise cylinders having a straight type cam.
Is the Schlage 653-15-NS an OEM replacement part?
Yes. The Schlage 653-15-NS is an OEM Schlage replacement part.
