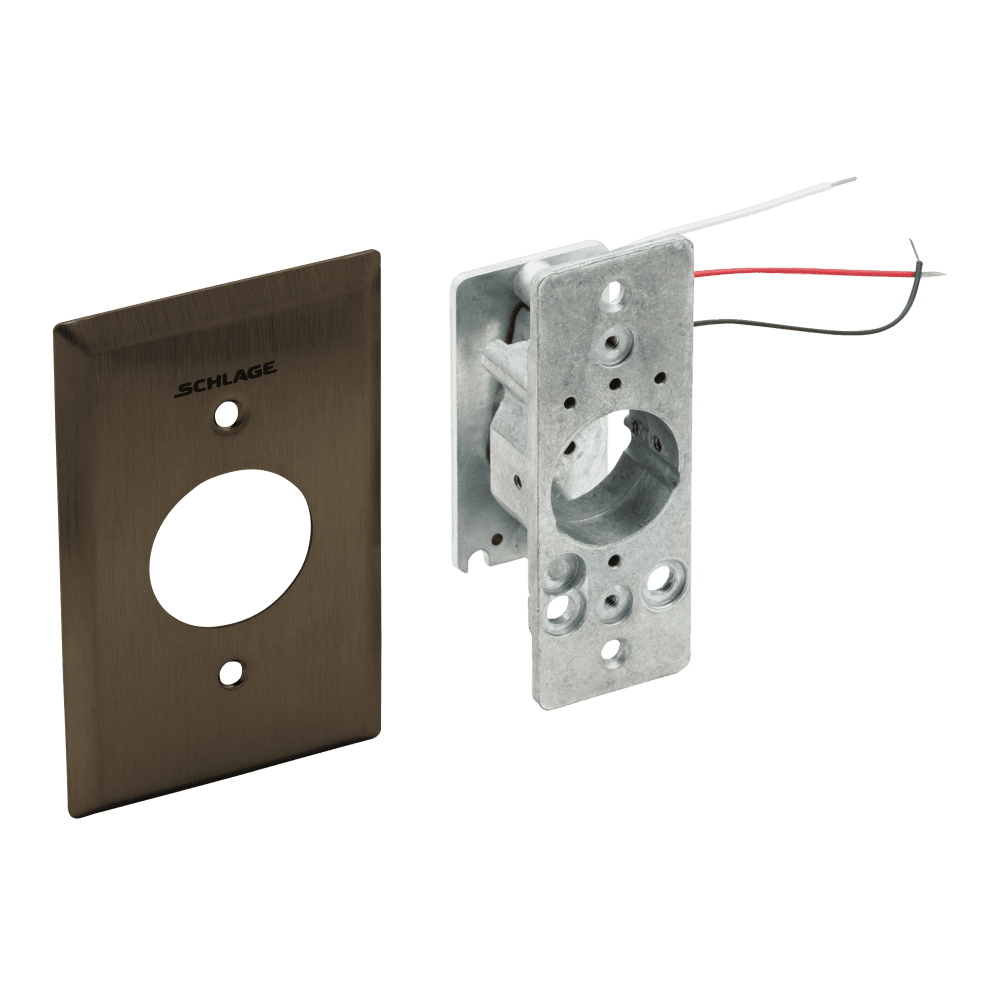

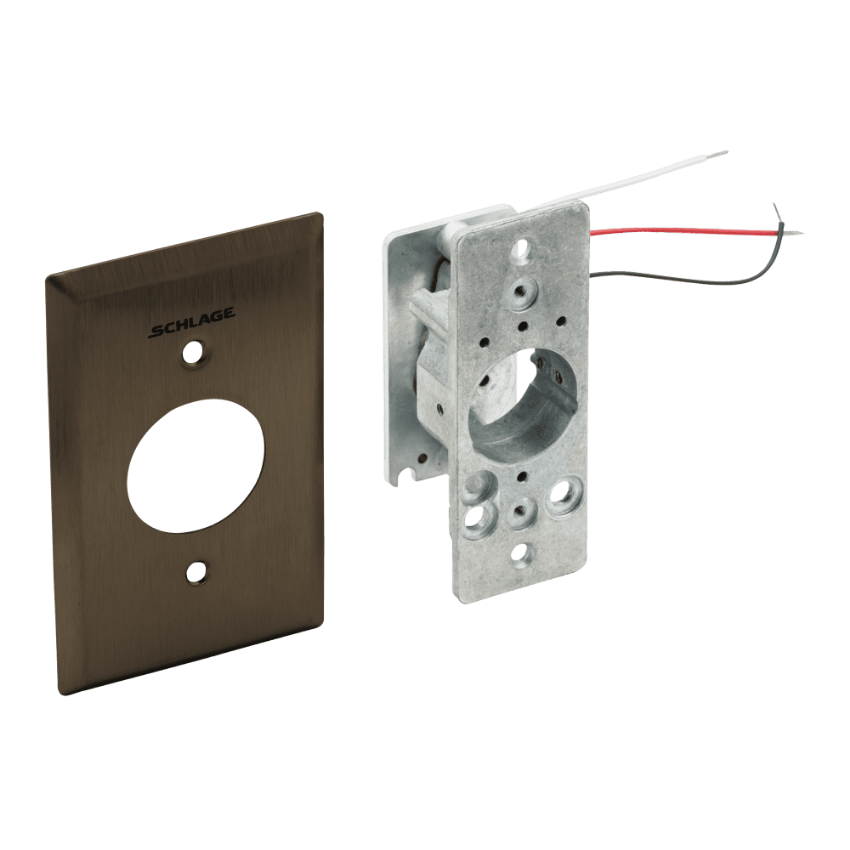

Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch SF-613 Oil Rubbed Bronze

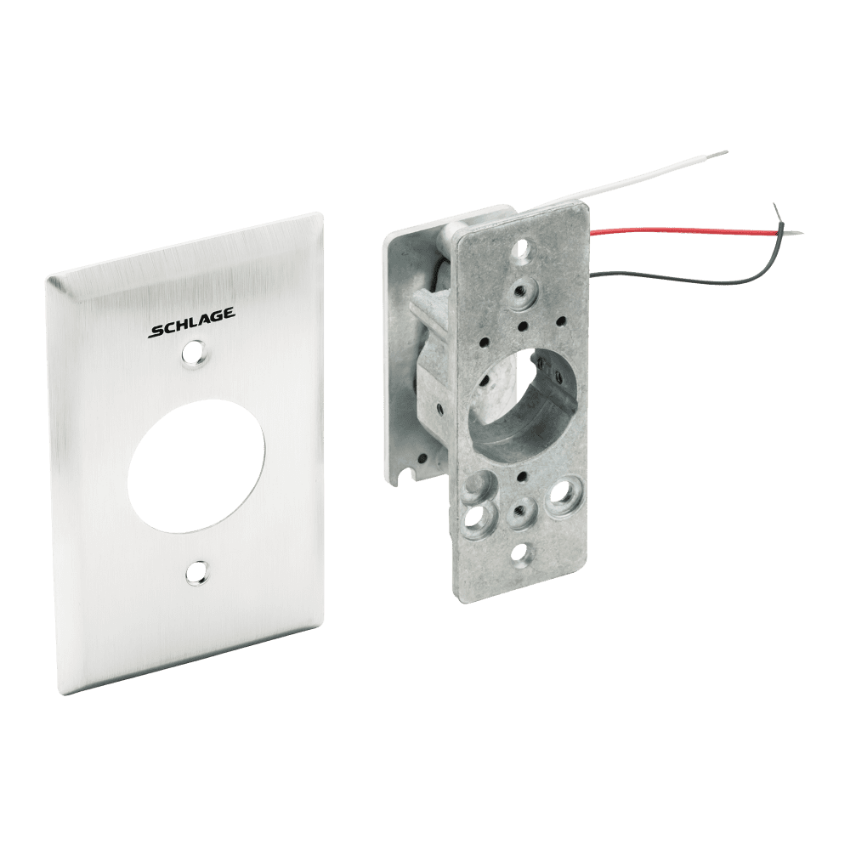

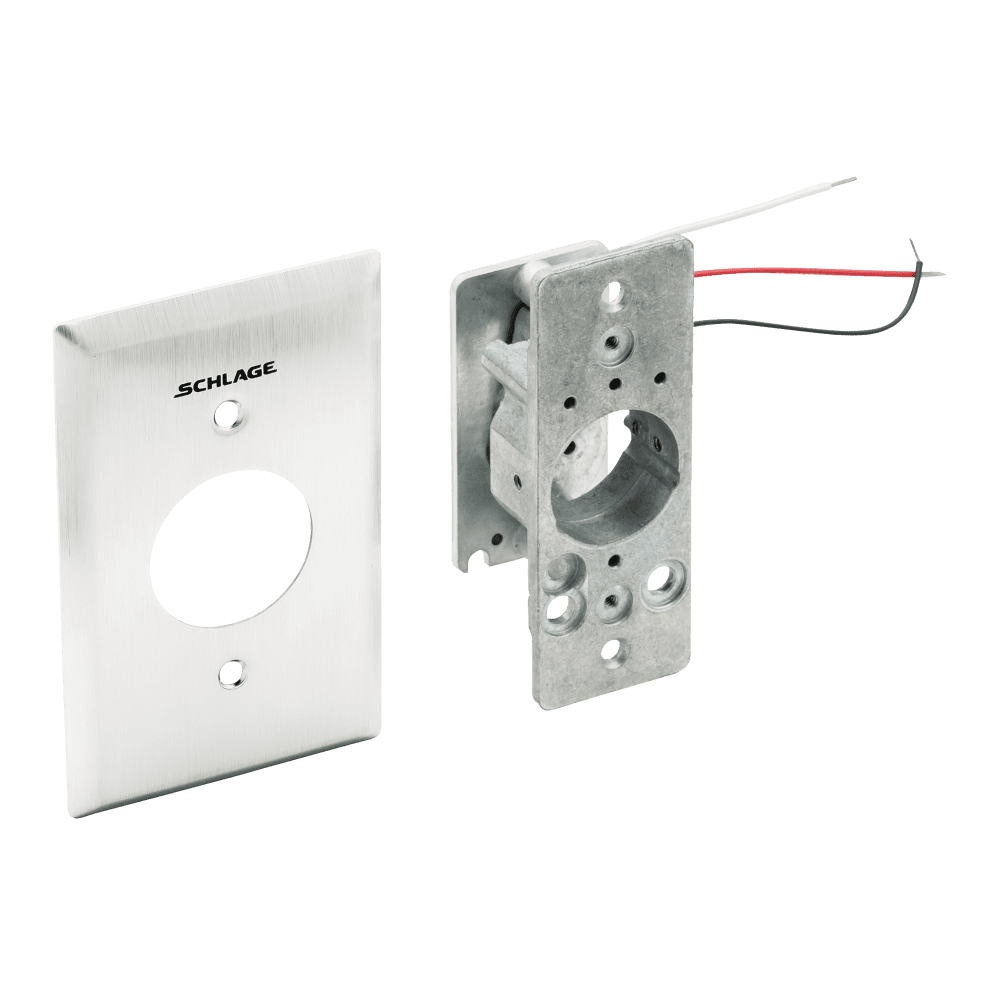

Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch SF-625 Bright Chrome

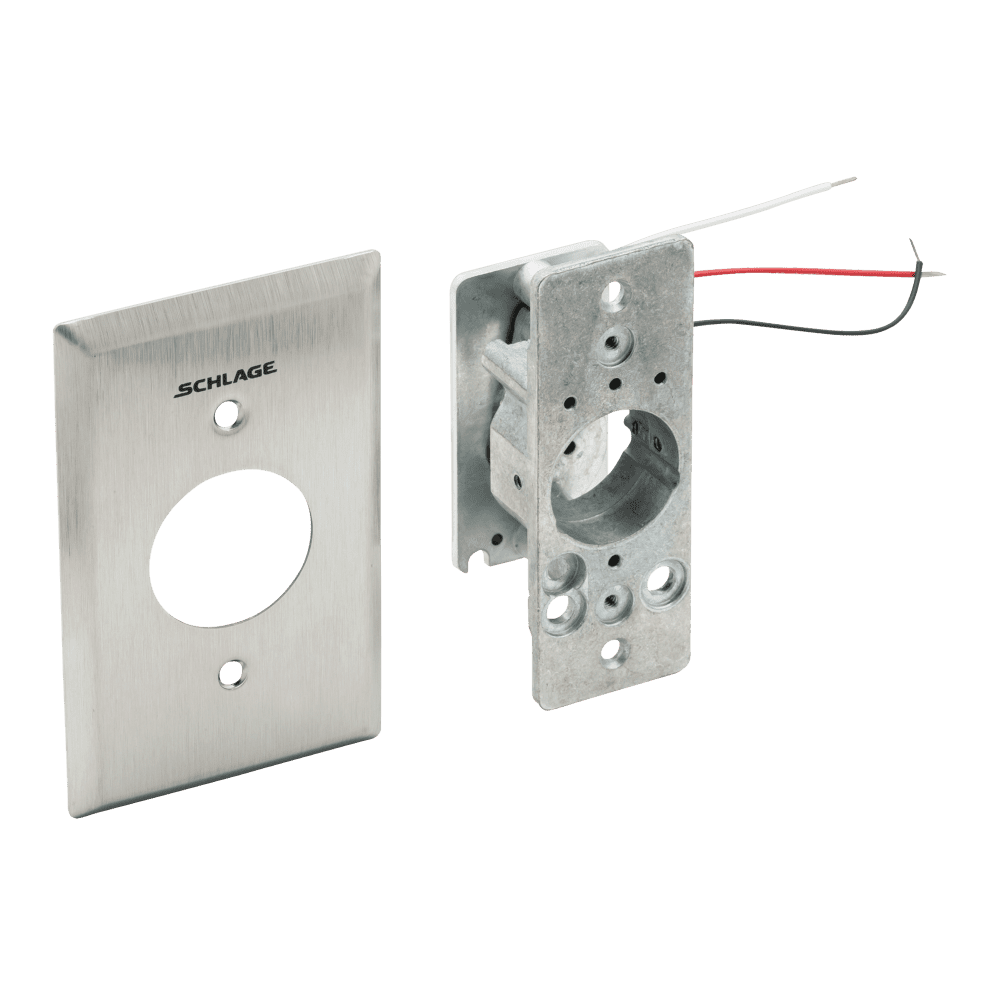

Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch SF-626 Satin Chrome

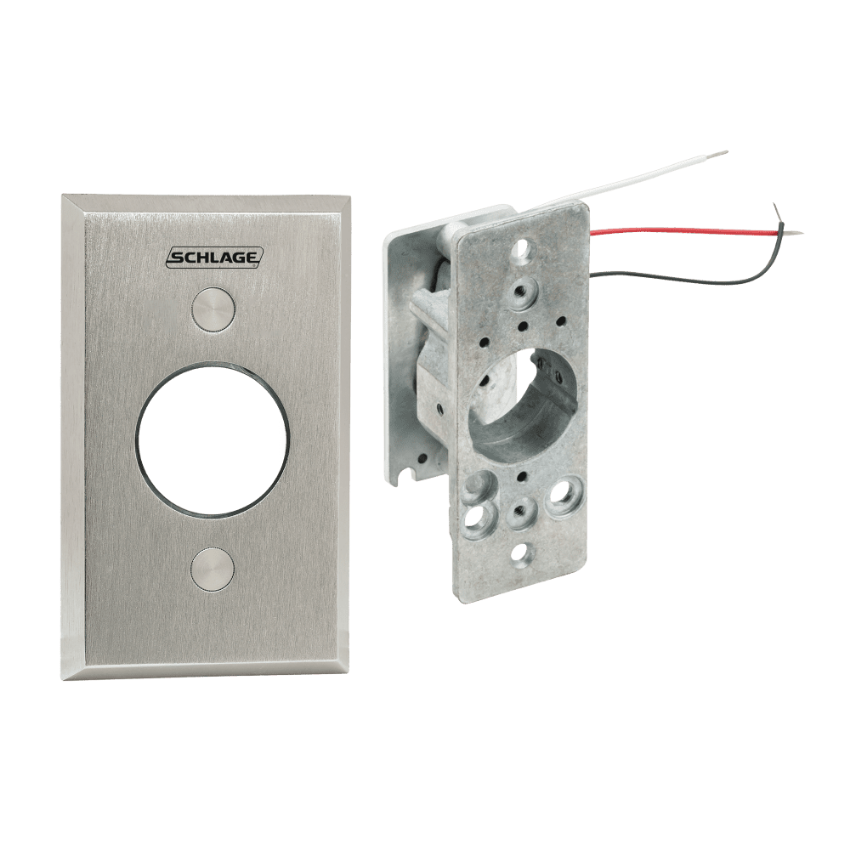

Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch ATS Anti-Tamper Switch

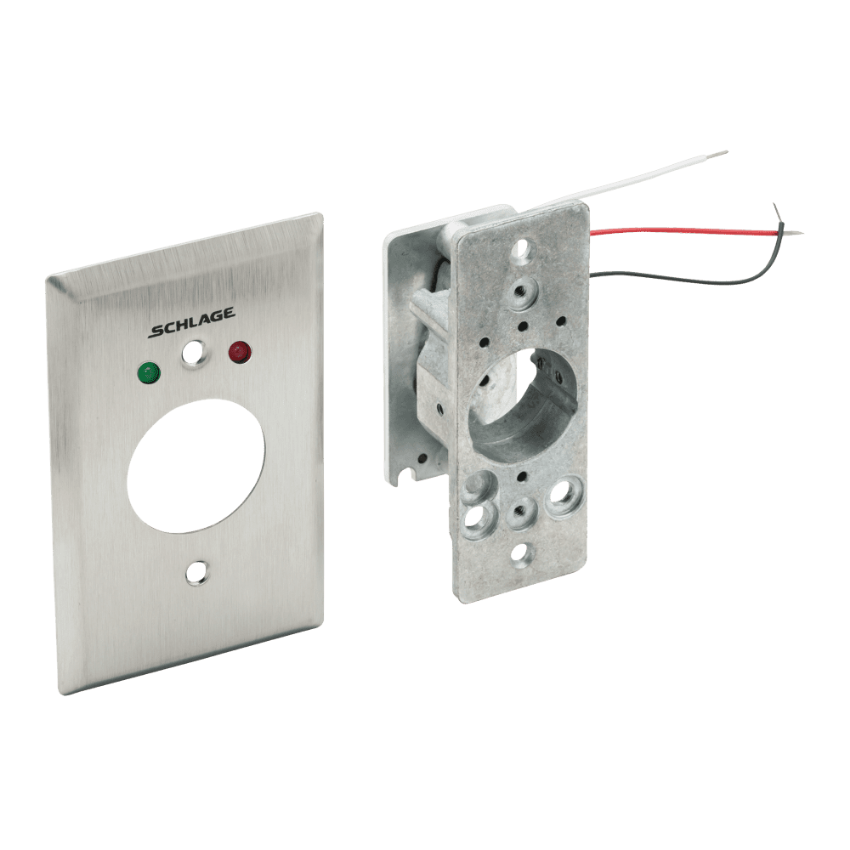

Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch with L2 LEDs

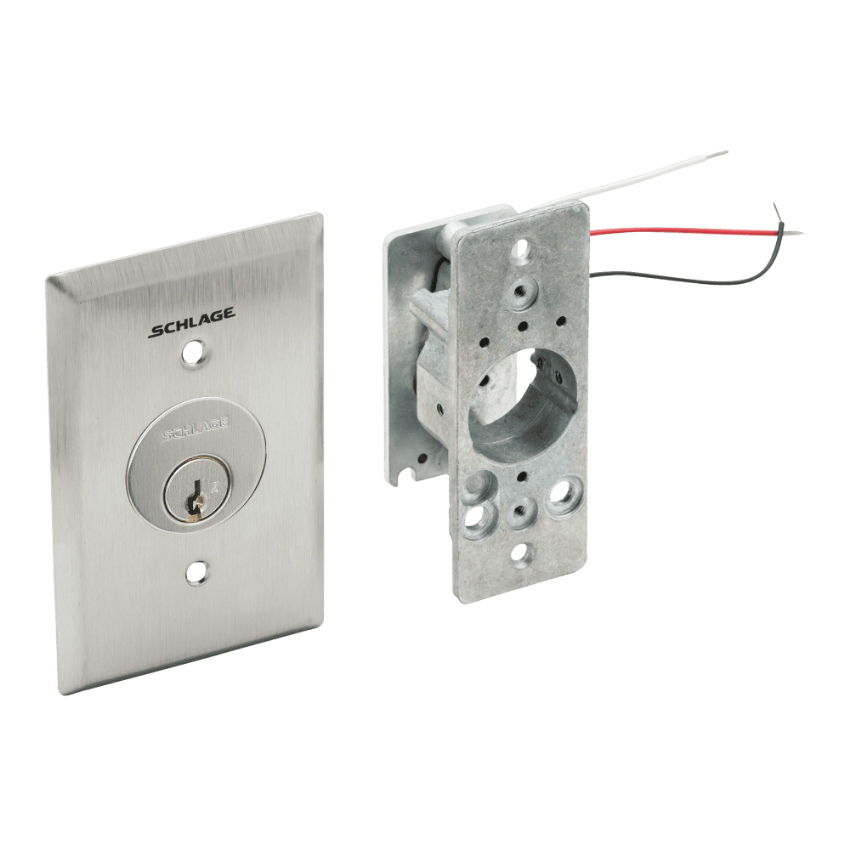

Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch with Cylinder
Dynamic Image
Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch
Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch SF-613 Oil Rubbed Bronze
Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch SF-625 Bright Chrome
Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch SF-626 Satin Chrome
Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch ATS Anti-Tamper Switch
Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch with L2 LEDs
Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch with Cylinder

Schlage

SKU: 653-1515

Schlage 653-1515 DPDT Momentary Bi-Direction Keyswitch

In stock

The Schlage 653-1515 is a 650 Series DPDT momentary bi-directional keyswitch designed for key-operated switching in commercial electronic access control applications.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • SF-613 - Oil Rubbed Bronze
    SF-613 - Oil Rubbed Bronze
    Not available
  • SF-625 - Bright Chrome
    SF-625 - Bright Chrome
    Not available
  • SF-626 - Satin Chrome
    SF-626 - Satin Chrome
    Not available
*

Schlage 653-1515 is a 650 Series keyswitch configured with two DPDT momentary bi-directional switching functions. It provides momentary switching in both clockwise and counterclockwise key-turn directions. The 653-1515 uses a compatible mortise cylinder with a straight-type cam.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 653-1515
Product Type: Keyswitch
Product Series: 650 Series
Product Name: DPDT Momentary Bi-Direction Keyswitch
Switch Contact Rating: 5 A @ 30 VDC
Contacts: DPDT
Faceplate Size: 2-3/4" x 4-1/2"
Finish: Stainless steel
Certification: UL 294 Listed
Primary Function: DPDT momentary bi-direction switching
Application: Electronic access control
OEM Part: Yes

Cylinder Compatibility

  • 1-1/8" cylinder
  • 1-1/4" cylinder
  • 1-3/8" cylinder
  • 1-1/2" cylinder
$620.00
$434.00
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 653-1515?
The Schlage 653-1515 is a 650 Series keyswitch configured with two DPDT momentary bi-directional functions.
Is the Schlage 653-1515 bi-directional?
Yes. The Schlage 653-1515 is configured for DPDT momentary bi-directional operation.
Is the Schlage 653-1515 a momentary keyswitch?
Yes. The Schlage 653-1515 is a DPDT momentary bi-directional keyswitch.
What type of cylinder is used with the Schlage 653-1515?
The 650 Series operates with 1-1/8", 1-1/4", 1-3/8", or 1-1/2" mortise cylinders with a straight-type cam.
Is the Schlage 653-1515 an OEM replacement part?
Yes. The Schlage 653-1515 is an OEM Schlage replacement part.
