Picture of Schlage

SKU: Schlage-801

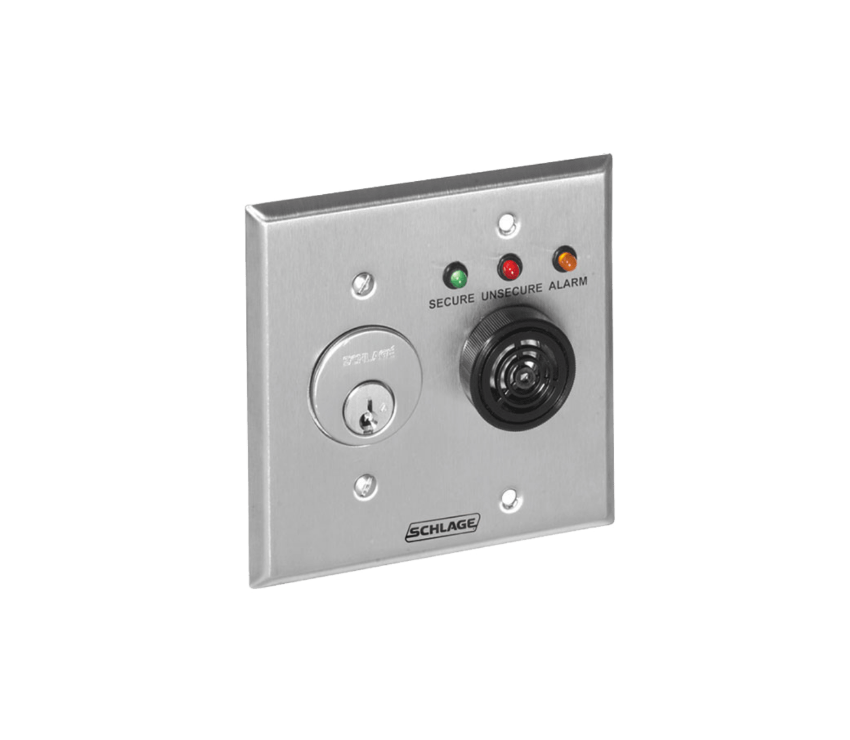

Schlage 801 Local or Remote Monitoring Station, 3 LEDs and Sounder

Schlage 801 Local or Remote Monitoring Station, 3 LEDs and Sounder

Schlage

SKU: Schlage-801

Schlage 801 Local or Remote Monitoring Station, 3 LEDs and Sounder

Available (3 - 4 Weeks)

The Schlage 801 Local or Remote Monitoring Station, 3 LEDs and Sounder provides audible and visual indication for delayed egress electromagnetic locking systems.

The Schlage 801 Local or Remote Monitoring Station, 3 LEDs and Sounder is an OEM Schlage monitoring accessory designed for delayed egress electromagnetic locking systems. Designed for use with compatible Schlage magnetic locks equipped with a Magnetic Bond Sensor (MBS), the 801 mounts in a standard single-gang electrical box for convenient installation in commercial facilities requiring delayed egress monitoring.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 801
Product Type: Local or Remote Monitoring Station, 3 LEDs and Sounder
Sound Output: 70 dB at 2ft
Operating Voltage: 10–28 VDC
Current Draw: 3–14 mA
Mounting: Standard single-gang electrical box
Required: MBS option on locking device
Primary Function: Audible and visual monitoring of delayed egress lock status
Application: Delayed egress electromagnetic locking systems
OEM Part: Yes

$505.00
$454.50
minus minus

Catalogs

Price Books

Frequently Asked Questions

What is the Schlage 801?
The Schlage 801 is an OEM local or remote monitoring station that provides audible and visual indication for delayed egress electromagnetic locking systems.
What is the purpose of the built-in sounder?
The integrated 70 dB sounder provides an audible indication of delayed egress system events and alarm conditions.
What is the primary function of the Schlage 801?
Its primary function is to provide audible and visual monitoring of delayed egress lock status, including secure, unsecured, and alarm conditions.
Can the Schlage 801 be used for remote monitoring?
Yes. The 801 is designed for either local or remote monitoring of compatible delayed egress electromagnetic locking systems.
Is the Schlage 801 an OEM Schlage product?
Yes. The Schlage 801 is a genuine OEM monitoring accessory.
