Picture of Schlage

SKU: Schlage-801KS

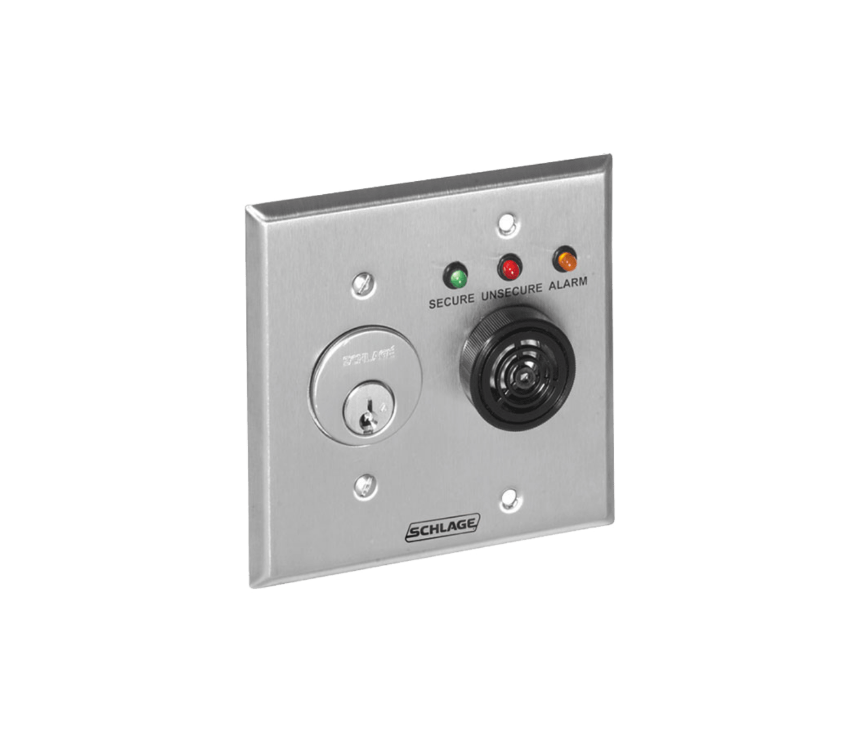

Schlage 801KS Local and Remote Monitoring Station with Keyswitch (Less Cylinder)

Schlage 801KS local and remote monitoring and control station with keyswitch less cylinder

Schlage

SKU: Schlage-801KS

Schlage 801KS Local and Remote Monitoring Station with Keyswitch (Less Cylinder)

In stock

The Schlage 801KS is a local and remote monitoring station with an integrated keyswitch (less cylinder), three LED status indicators, and a 70 dB audible sounder for delayed egress electromagnetic lock applications requiring code-compliant status indication.

The Schlage 801KS Local and Remote Monitoring Station with Keyswitch (Less Cylinder) is designed for delayed egress electromagnetic lock systems equipped with a Magnetic Bond Sensor (MBS). It provides audible and visual indication of lock status and delay activation using three LED indicators and a 70 dB horn.

The integrated keyswitch includes one momentary and one maintained SPDT switch, allowing authorized release and reset functions. The unit accepts a standard 1-1/4" mortise cylinder with a straight cam (cylinder not included) and mounts in a standard double-gang electrical box.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 801KS
Product Type: Local and Remote Monitoring Station with Keyswitch (Less Cylinder)
Sound Output: 70 dB at 2ft
Operating Voltage: 12–24 VDC
Audible Input: 10–28 VDC
Mounting: Standard double-gang electrical box
Keyswitch Contacts: 5 Amp @ 30 VDC
Keyswitch Configuration: One SPDT momentary and one SPDT maintained
Cylinder Requirement: Standard 1-1/4" mortise cylinder with straight cam (less cylinder)
Dimensions: 4-9/16" W × 4-1/2" H × 1-15/16" D
Primary Function: Audible and visual monitoring with keyswitch control
Application: Delayed egress electromagnetic lock systems
OEM Part: Yes

$1,334.00
$1,200.60
minus minus

Catalogs

Price Books

Frequently Asked Questions

What is the Schlage 801KS used for?
The 801KS provides audible and visual monitoring for delayed egress electromagnetic lock systems and includes keyswitch controls for authorized release and system reset.
What is the primary function of the Schlage 801KS?
Its primary function is to provide code-required audible and visual indication of delayed egress lock status while allowing authorized release and reset through the integrated keyswitch.
Is the 801KS compatible with all electromagnetic locks?
No. The locking device must be equipped with a Magnetic Bond Sensor (MBS) for proper LED operation.
What type of electrical box does the 801KS require?
The Schlage 801KS is designed to mount in a standard double-gang electrical box.
Why choose a genuine Schlage 801KS OEM monitoring station?
Using an authentic OEM component helps ensure proper fit, operation, and compatibility with supported Schlage system configurations.

Schlage 801KS local and remote monitoring station with keyswitch, 3 LEDs, and 70 dB horn for delayed egress electromagnetic lock systems requiring MBS.
