Picture of Schlage

SKU: Schlage-9520

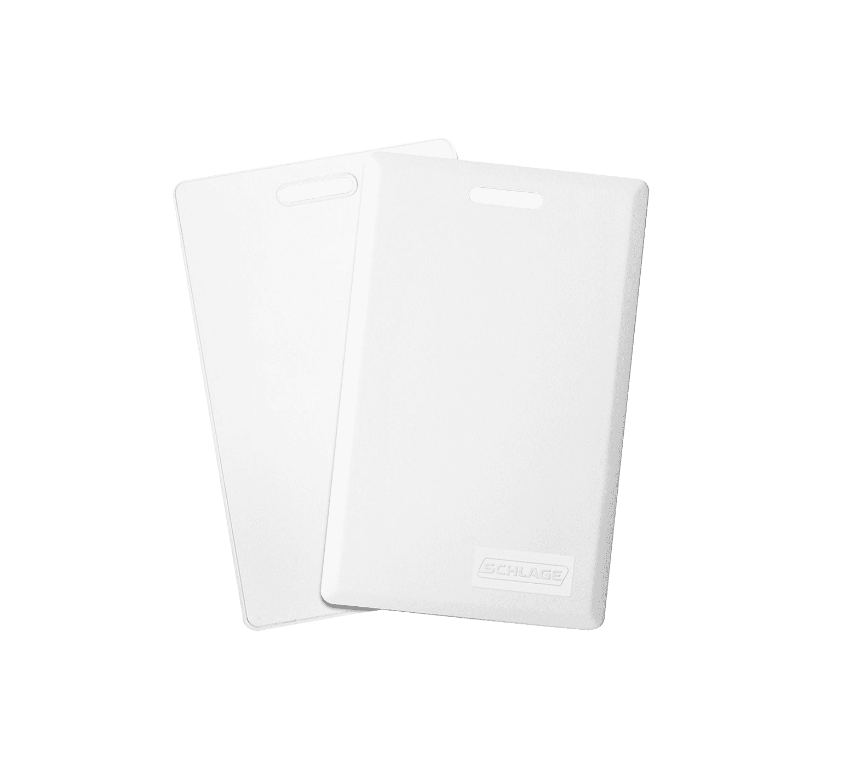

Schlage 9520 MIFARE Contactless Smartcard, 2.5k-bit

Schlage 9520 MIFARE Contactless Smartcard, 2.5k Bit
Picture of 9520 MIFARE Contactless Smartcard, 2.5k-bit
Dynamic Image
Schlage 9520 MIFARE Contactless Smartcard, 2.5k Bit
Picture of 9520 MIFARE Contactless Smartcard, 2.5k-bit

Schlage

SKU: Schlage-9520

Schlage 9520 MIFARE Contactless Smartcard, 2.5k-bit

In stock

The Schlage 9520 is a MIFARE Classic contactless smartcard with 2.5k-bit memory, five application sectors, and 13.56 MHz technology for electronic access control applications. Facility Code and Starting Card # Must Be Specified.

The Schlage 9520 is a MIFARE Classic contactless smartcard featuring 13.56 MHz technology, ISO 14443 compliance, 2.5k-bit memory, and five application sectors. It uses an ISO glossy white card format measuring 3.37" × 2.125" × 0.033" and is made from composite material. The card provides contactless credential functionality for supported access control systems and can be printed for identification purposes.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 9520
Product Type: MIFARE Contactless Smartcard
Credential Technology: MIFARE Classic
Slot Punch: Vertical or Horizontal (Optional)
Frequency: 13.56 MHz
Memory: 2.5k-bit
Application Sector: 5
Standard: ISO 14443
Magnetic Stripe: No
Credential Type: ISO glossy white
Dimensions: 3.37" H × 2.125" W × 0.033" T
Material: Composite
Primary Function: Contactless high-frequency smart credential
Application: Commercial electronic access control and credential authentication
OEM Part: Yes
Warranty: Limited lifetime

$8.00
$5.60
This product has a minimum quantity of 100
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 9520?
The Schlage 9520 is a MIFARE Classic contactless smartcard with 13.56 MHz technology, ISO 14443 compliance, 2.5k-bit memory, and five application sectors.
What technology does the Schlage 9520 use?
The Schlage 9520 uses MIFARE Classic contactless smart credential technology operating at 13.56 MHz and complying with the ISO 14443 standard.
What is the Schlage 9520 used for?
The Schlage 9520 is used as a contactless smart credential for electronic access control applications that support MIFARE Classic technology.
Is the Schlage 9520 an OEM Schlage credential?
Yes. The 9520 is a Schlage MIFARE Classic smart credential.
What are the benefits of the Schlage 9520?
The Schlage 9520 provides contactless 13.56 MHz MIFARE Classic technology, 2.5k-bit memory, five application sectors, ISO 14443 compatibility, and an ISO glossy white card format suitable for identification and printing.
