Picture of Schlage

SKU: Schlage-9520M1

Schlage 9520M1 MIFARE Contactless Smartcard w/ Mag Stripe, 2.5k-Bit

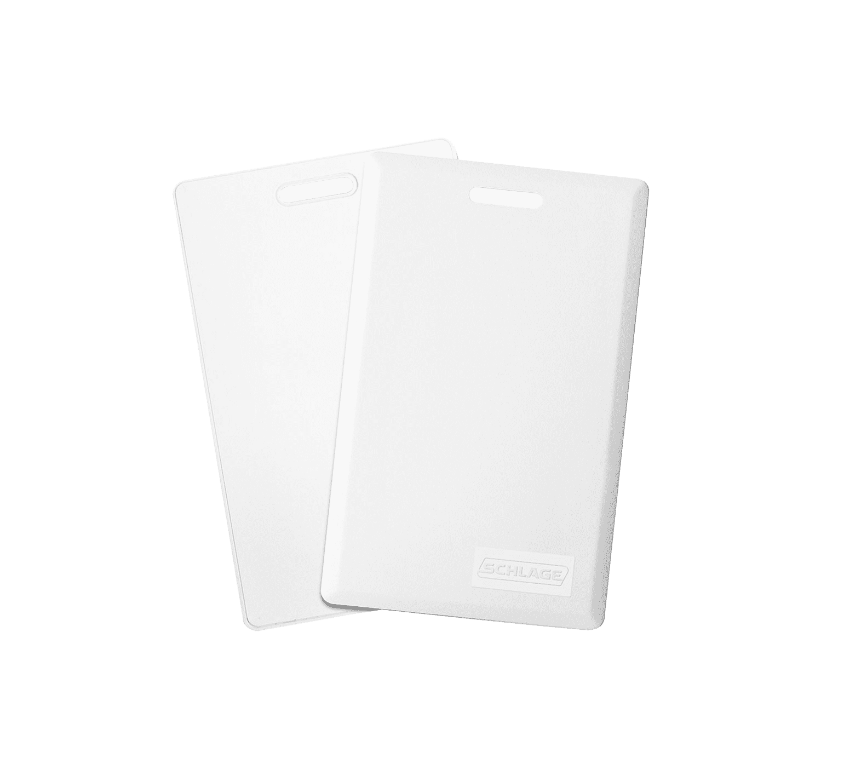

Schlage 9520M1 MIFARE Contactless Smartcard with Magnetic Stripe, 2.5k-Bit
Picture of 9520M1 MIFARE Contactless Smartcard w/ Mag Stripe, 2.5k-Bit
Dynamic Image
Schlage 9520M1 MIFARE Contactless Smartcard with Magnetic Stripe, 2.5k-Bit
Picture of 9520M1 MIFARE Contactless Smartcard w/ Mag Stripe, 2.5k-Bit

Schlage

SKU: Schlage-9520M1

Schlage 9520M1 MIFARE Contactless Smartcard w/ Mag Stripe, 2.5k-Bit

Available (3 - 4 Weeks)

Schlage 9520M1 MIFARE contactless smartcard with magnetic stripe and 2.5k-bit memory for credentialing applications. Facility Code and Starting Card # Must Be Specified.

The Schlage 9520M1 is a MIFARE Classic contactless smartcard with a magnetic stripe, 13.56 MHz technology, ISO 14443 compliance, 2.5k-bit memory, and five application sectors. It uses an ISO glossy white composite card format and provides a contactless credential format for supported electronic access control applications.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 9520M1
Product Type: MIFARE Contactless Smartcard
Credential Technology: MIFARE Classic
Slot Punch: Vertical or Horizontal (Optional)
Frequency: 13.56 MHz
Memory: 2.5k-bit
Application Sector: 5
Standard: ISO 14443
Magnetic Stripe: Yes
Credential Type: ISO glossy white
Dimensions: 3.37" H × 2.125" W × 0.033" T
Material: Composite
Primary Function: Contactless high-frequency smart credential
Application: Commercial electronic access control and credential authentication
OEM Part: Yes
Warranty: Limited lifetime

$8.90
$6.23
This product has a minimum quantity of 100
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 9520M1?
The Schlage 9520M1 is a MIFARE Classic contactless smartcard with a magnetic stripe, 2.5k-bit memory, and ISO 14443 technology.
What technology does the Schlage 9520M1 use?
The Schlage 9520M1 uses MIFARE Classic contactless smart credential technology operating at 13.56 MHz and complying with the ISO 14443 standard.
What is the Schlage 9520M1 used for?
The Schlage 9520M1 is used as a contactless smart credential for supported electronic access control applications and systems that support its MIFARE Classic technology.
Is the Schlage 9520M1 an OEM Schlage credential?
Yes. The 9520M1 is a Schlage MIFARE Classic smart credential with magnetic stripe.
What are the benefits of the Schlage 9520M1?
The Schlage 9520M1 provides contactless MIFARE Classic technology, 2.5k-bit memory, five application sectors, an ISO printable card format, and an integrated magnetic stripe.

Schlage 9520M1 MIFARE contactless smartcard with magnetic stripe, 2.5k-bit memory, and 13.56 MHz technology for compatible access control systems.

Schlage 9520M1 MIFARE contactless smartcard with magnetic stripe, 2.5k-bit memory, and 13.56 MHz technology for compatible access control systems.

Schlage 9520M1 MIFARE contactless smartcard with magnetic stripe, 2.5k-bit memory, and 13.56 MHz technology for compatible access control systems.
