Picture of Schlage

SKU: Schlage-9551M1

Schlage 9551M1 MIFARE Smartcard w/ Mag Stripe, 8k-bit

Schlage 9551M1 MIFARE Contactless Smartcard with Mag Stripe, 8k-bit
Picture of 9551M1 MIFARE Smartcard w/ Mag Stripe, 8k-bit
Dynamic Image
Schlage 9551M1 MIFARE Contactless Smartcard with Mag Stripe, 8k-bit
Picture of 9551M1 MIFARE Smartcard w/ Mag Stripe, 8k-bit

Schlage

SKU: Schlage-9551M1

Schlage 9551M1 MIFARE Smartcard w/ Mag Stripe, 8k-bit

Available (3 - 4 Weeks)

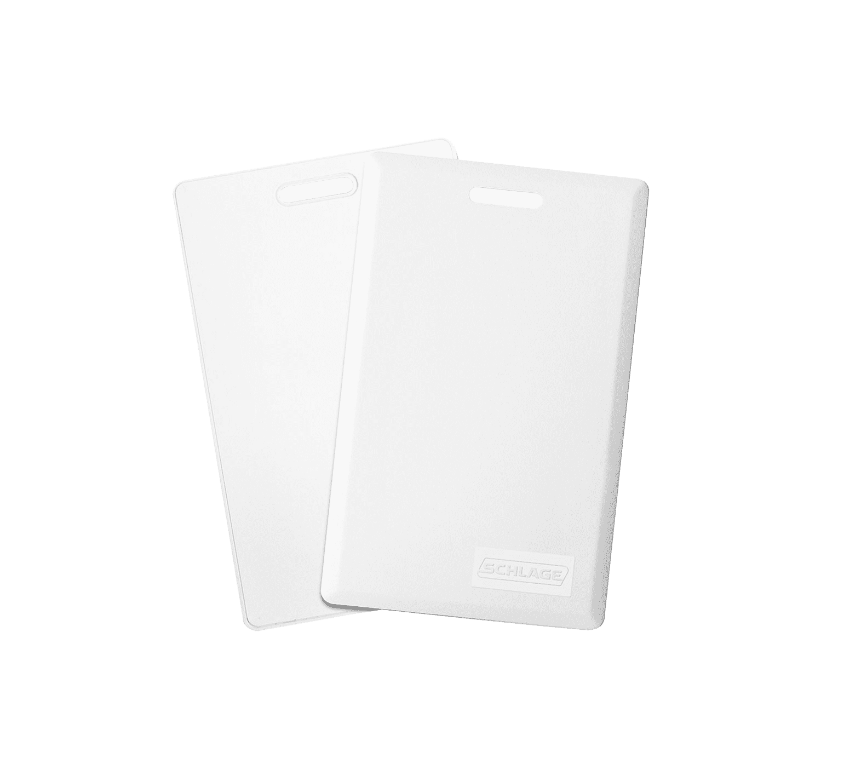

Schlage 9551M1 is a MIFARE contactless smartcard with a magnetic stripe and 1K byte/8K bit memory for electronic access control credential applications. Facility Code and Starting Card # Must Be Specified.

Schlage 9551M1 is a MIFARE Classic contactless smartcard with a magnetic stripe, designed as an ISO glossy white card credential. It operates at 13.56 MHz, uses the MIFARE Classic technology, and provides 1K byte/8K bit memory across 16 sectors. The card complies with the ISO 14443 standard and includes a magnetic stripe for applications requiring both contactless smart credential and magnetic-stripe functionality.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 9551M1
Product Type: MIFARE Contactless Smartcard
Credential Technology: MIFARE Classic
Slot Punch: Vertical or Horizontal (Optional)
Frequency: 13.56 MHz
Memory: 1K byte/8k-bit
Application Sector: 16
Standard: ISO 14443
Magnetic Stripe: Yes
Credential Type: ISO glossy white
Dimensions: 3.37" H × 2.125" W × 0.033" T
Material: Composite
Primary Function: Contactless high-frequency smart credential
Application: Commercial electronic access control and credential authentication
OEM Part: Yes
Warranty: Limited lifetime

$10.50
$7.35
This product has a minimum quantity of 100
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 9551M1?
The Schlage 9551M1 is a MIFARE Classic contactless smartcard with a magnetic stripe in an ISO glossy white card format.
What technology does the Schlage 9551M1 use?
The Schlage 9551M1 uses 13.56 MHz MIFARE Classic contactless smart credential technology and complies with ISO 14443.
What is the Schlage 9551M1 used for?
The Schlage 9551M1 is used as a MIFARE Classic contactless smart credential for electronic access control applications. It also includes a magnetic stripe for systems that use magnetic-stripe credentials.
Is the Schlage 9551M1 an OEM Schlage credential?
Yes. The 9551M1 is a Schlage MIFARE Classic smart credential with magnetic stripe.
What are the benefits of the Schlage 9551M1?
The Schlage 9551M1 provides MIFARE Classic contactless credential technology, 1K byte/8K bit memory, 13.56 MHz operation, and a magnetic stripe in an ISO card format for electronic access control applications.
