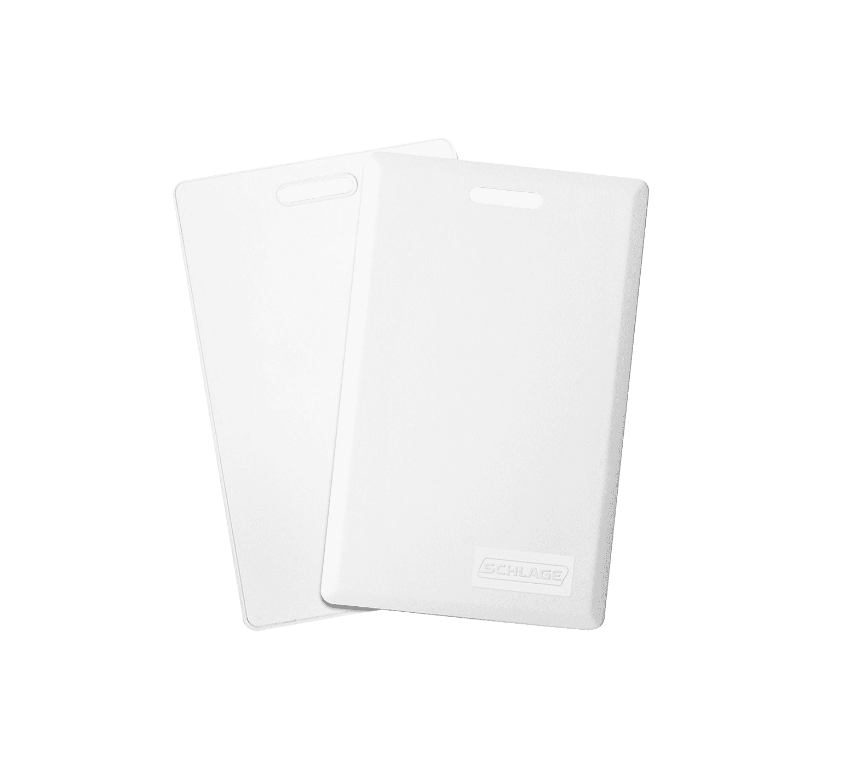

Schlage 9558 MIFARE Classic Smartcard, 4K Byte/32K Bit

Schlage 9558 MIFARE Classic Smartcard, 4K Byte/32K Bit
Picture of 9558 MIFARE Classic Smartcard, 4K Byte/32K Bit
Dynamic Image
Schlage 9558 MIFARE Classic Smartcard, 4K Byte/32K Bit
Picture of 9558 MIFARE Classic Smartcard, 4K Byte/32K Bit

Schlage

SKU: Schlage-9558

Schlage 9558 MIFARE Classic Smartcard, 4K Byte/32K Bit

Available (3 - 4 Weeks)

The Schlage 9558 is a MIFARE Classic contactless smartcard with 4K byte/32K bit memory and 40 application sectors for electronic access control credential applications. Facility Code and Starting Card # Must Be Specified.

Schlage 9558 is a MIFARE Classic Smartcard, 4K Byte/32K Bit, in an ISO glossy white card format. It uses 13.56 MHz MIFARE Classic technology and complies with the ISO 14443 standard. The card provides 4K byte/32K bit memory capacity with 40 application sectors and supports contactless credential applications.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: 9558
Product Type: MIFARE Contactless Smartcard
Credential Technology: MIFARE Classic
Slot Punch: Vertical or Horizontal (Optional)
Frequency: 13.56 MHz
Memory: 4K byte/32K-bit
Application Sector: 40
Standard: ISO 14443
Magnetic Stripe: No
Credential Type: ISO glossy white
Dimensions: 3.37" H × 2.125" W × 0.033" T
Material: Composite
Primary Function: Contactless high-frequency smart credential
Application: Commercial electronic access control and credential authentication
OEM Part: Yes
Warranty: Limited lifetime

$13.60
$9.52
This product has a minimum quantity of 100
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage 9558 MIFARE Classic Smartcard?
The Schlage 9558 is a 13.56 MHz MIFARE Classic smartcard in an ISO glossy white format with 4K byte/32K bit memory and 40 application sectors.
What technology does the Schlage 9558 use?
The Schlage 9558 uses MIFARE Classic contactless smart credential technology operating at 13.56 MHz and complying with ISO 14443.
What is the Schlage 9558 used for?
The Schlage 9558 is used as a contactless smart credential for electronic access control applications. It can also support applications beyond access control.
Is the Schlage 9558 an OEM Schlage credential?
Yes. The 9558 is a Schlage MIFARE Classic smart credential.
What are the benefits of the Schlage 9558?
The Schlage 9558 provides 4K byte/32K bit memory and 40 application sectors, allowing multiple applications to be stored within its fixed memory structure. It also provides contactless 13.56 MHz operation.
