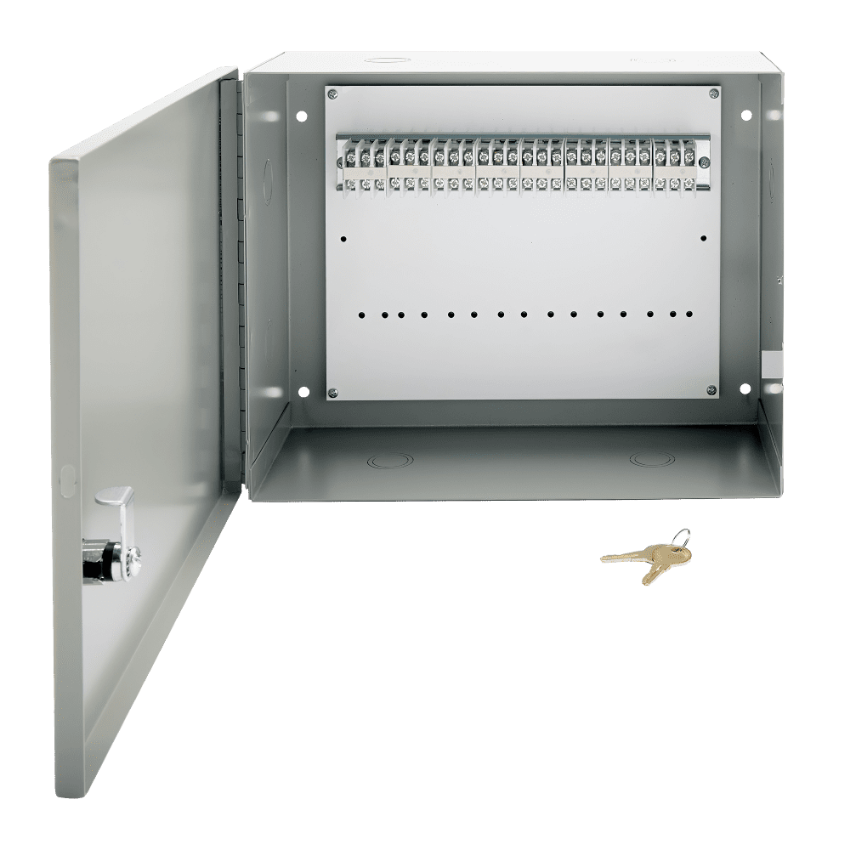

Von Duprin JB7-R2 is a junction box equipped with a 24-position terminal block and a factory-installed 24VDC DPDT relay. The DPDT relay provides multiple dry contacts for applications requiring relay-based electrical connections. The JB7-R2 is designed for organized wiring connections within commercial door hardware systems and provides a centralized point for connecting related electrical components.

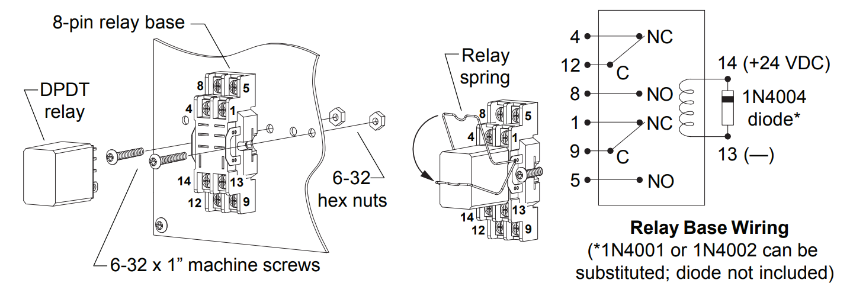

Installation Instructions

We are your trusted source for genuinement parts, commercial door hardware, electronic access control products, and life safety hardware.

Manufacturer: Von Duprin
Part Number: JB7-R2
Product Name: Junction Box with DPDT Relay
Relay Type: DPDT
Relay Voltage: 24VDC
Terminal Block: 24-position
Relay Installation: Factory installed
Primary Function: Provides a centralized wiring connection point with DPDT relay functionality.
Application: Commercial door hardware and electrical interface applications.
OEM Part: Yes
Warranty: 3-year limited (electronic), Limited lifetime (mechanical)
