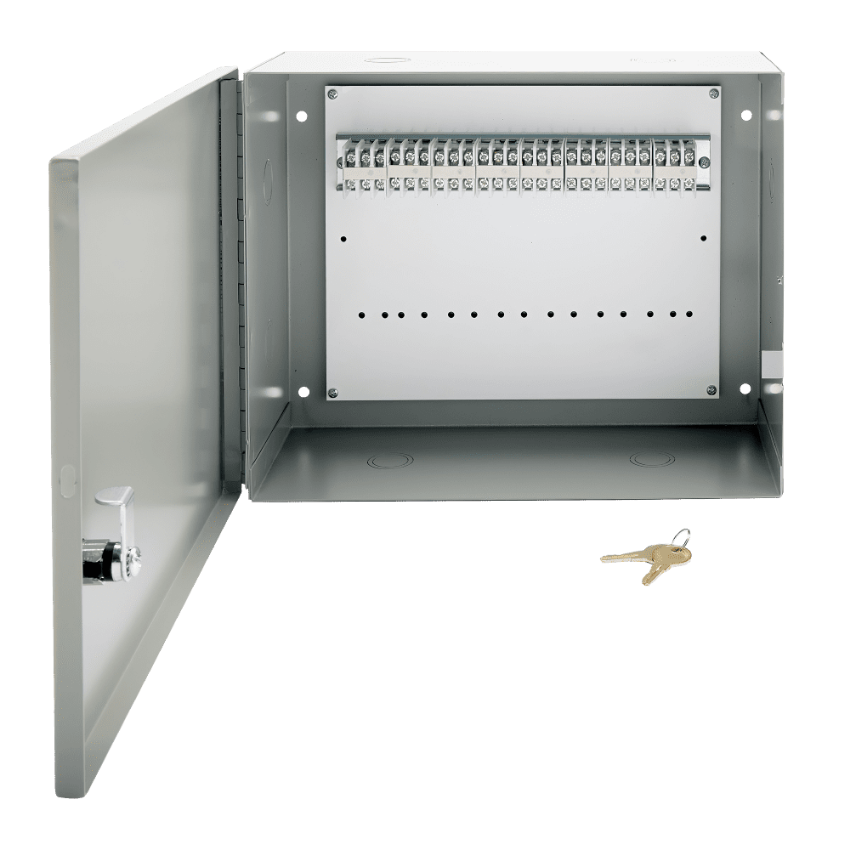

The Von Duprin JB7-R3 is an interface box enclosure with terminal strip and a factory-installed 24VDC DPDT delay-on-make time-delay relay. The JB7 provides an enclosed location for electrical connections, while the R3 configuration adds the specified delay-on-make relay. This component is intended for use in commercial door hardware electrical interface applications where the JB7 enclosure and R3 relay configuration are required.

Installation Instructions

We are your trusted source for genuinement parts, commercial door hardware, electronic access control products, and life safety hardware.

Manufacturer: Von Duprin
Part Number: JB7-R3
Product Name: Interface Box Enclosure with Terminal Strip

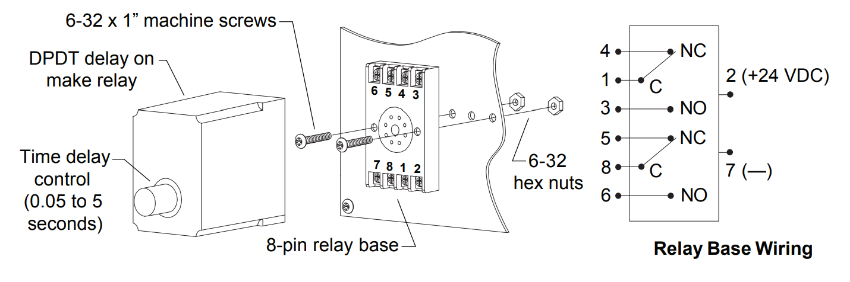

Relay Configuration: DPDT Delay on Make Time Delay
Relay Voltage: 24VDC
Relay Installation: Factory installed
Primary Function: Provides an interface box enclosure with terminal strip and a factory-installed delay-on-make relay.
Application: Commercial door hardware electrical interface applications
OEM Part: Yes
Warranty: 3-year limited (electronic), Limited lifetime (mechanical)
