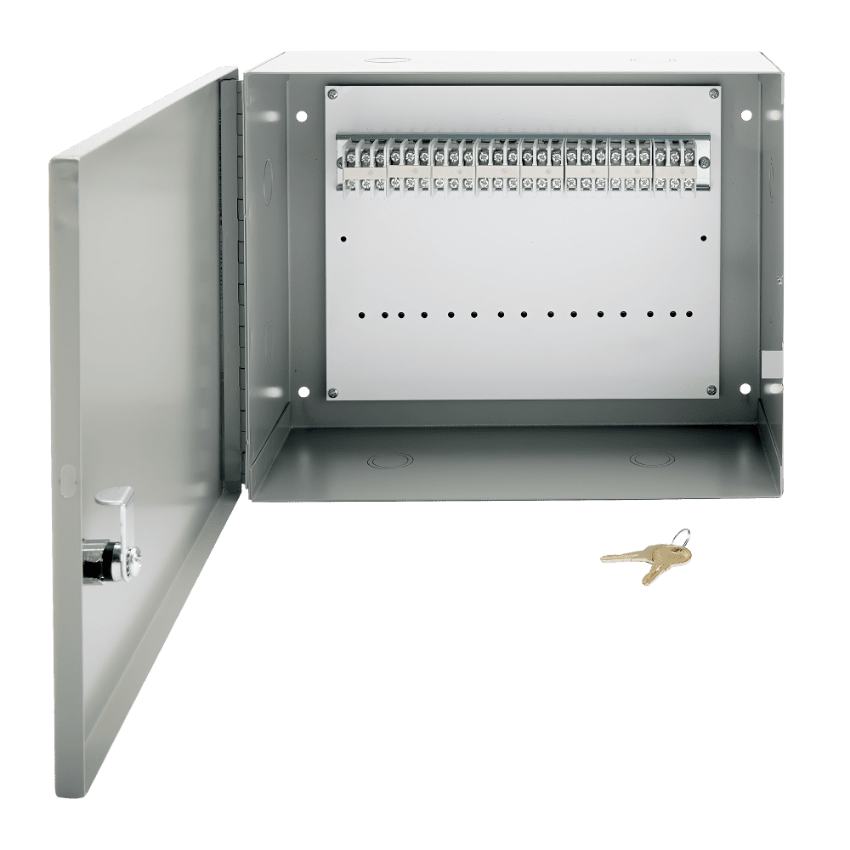

Von Duprin JB7-R4 Interface Box Enclosure with Terminal Strip

Von Duprin JB7-R4 Interface Box Enclosure with Terminal Strip
Picture of JB7-R4 Interface Box Enclosure with Terminal Strip
Dynamic Image
Von Duprin JB7-R4 Interface Box Enclosure with Terminal Strip
Picture of JB7-R4 Interface Box Enclosure with Terminal Strip

Von Duprin

SKU: JB7-R4

Von Duprin JB7-R4 Interface Box Enclosure with Terminal Strip

Available (3 - 4 Weeks)

Von Duprin JB7-R4 is a genuine OEM interface box assembly designed for commercial door hardware applications.

The Von Duprin JB7-R4 is an interface box enclosure with a terminal strip and a factory-installed R4 relay. The R4 relay provides a 24VDC DPDT delay-on-break time-delay function. This configuration combines the JB7 interface box with the R4 relay option for applications requiring this specific interface and relay setup.

Installation Instructions

We are your trusted source for genuinement parts, commercial door hardware, electronic access control products, and life safety hardware.

Manufacturer: Von Duprin
Part Number: JB7-R4
Product Name: Interface Box Enclosure with Terminal Strip
Relay Voltage: 24VDC
Relay Configuration: DPDT Delay-on-break time delay
Relay Installation: Factory installed
Primary Function: Provides an interface enclosure with terminal-strip connections and a factory-installed time-delay relay.
Application: Commercial door hardware electrical interface applications
OEM Part: Yes
Warranty: 3-year limited (electronic), Limited lifetime (mechanical)

$1,967.00
$1,278.55
minus minus

Price Books

Frequently Asked Questions

What is the Von Duprin JB7-R4?
It is an interface box enclosure with a terminal strip and factory-installed R4 relay.
What is the primary function of the JB7-R4?
It provides an interface enclosure with terminal-strip connections and a time-delay relay.
What type of time delay does the R4 provide?
What type of time delay does the R4 provide? A: The R4 provides a delay-on-break time-delay function.
Is the JB7-R4 a complete exit device?
No. It is an interface box assembly rather than a complete exit device.
Why choose genuine OEM Von Duprin?
Genuine OEM parts are manufactured to the original specifications to help maintain proper fit and function.
