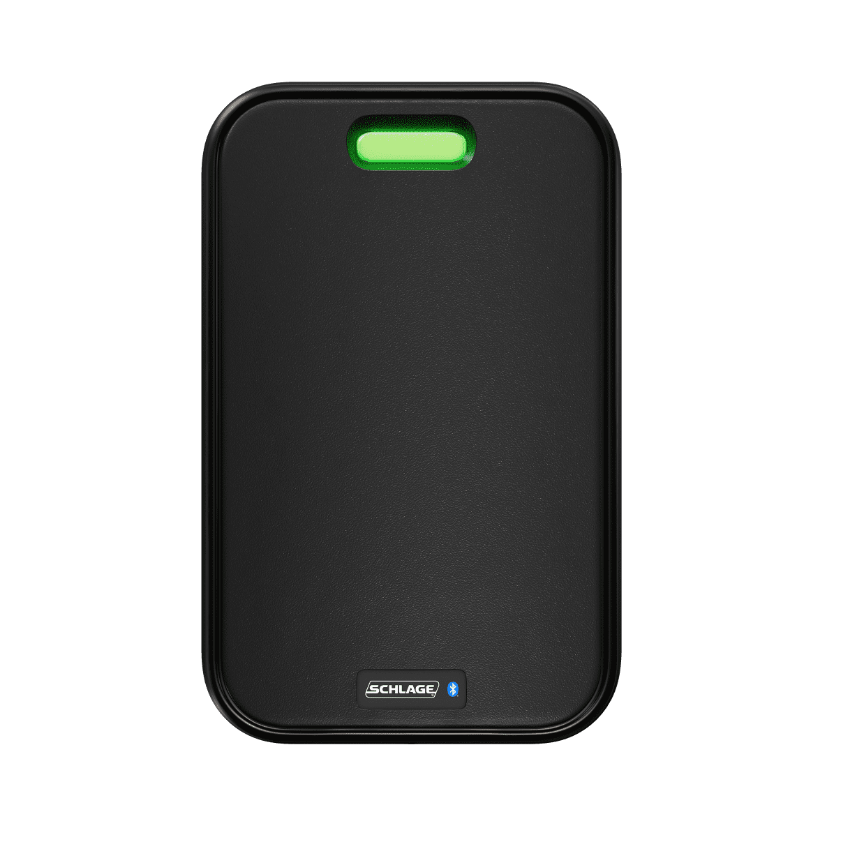

Schlage MT15-485 Wall Mount Multi-Technology Reader

Schlage MT15-485 Wall Mount Multi-Technology Reader

Schlage

SKU: MT15-485

Schlage MT15-485 Wall Mount Multi-Technology Reader

In stock

The Schlage MT15-485 is a wall mount multi-technology reader designed to read compatible proximity, smart card, and NFC credentials for commercial electronic access control applications.

Schlage MT15-485 is a wall mount multi-technology reader designed for installation over a single-gang junction box. It reads 125 kHz proximity and 13.56 MHz smart credentials, including Schlage MIFARE Classic and MIFARE DESFire credentials, along with compatible smart-card serial numbers and NFC-enabled mobile credentials. The reader provides Wiegand, Clock & Data, and OSDP system interface options, with RS-485 capability for OSDP communication.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: MT15-485
Product Type: Multi-Technology Mullion Reader
Mounting Style: Single Gang
Supported Technologies:

  • Bluetooth Low Energy (BLE)
  • NFC
  • 13.56 MHz smart
  • 125 kHz proximity

System Interface:

  • Open Supervised Device Protocol (OSDP)
  • RS-485 capability
  • Wiegand
  • Clock & Data

Power: 5–16 VDC
Dimensions: 5.1" H × 3.25" W × 0.76" D
Material: PBT Polymer
Standards: ISO 14443A, ISO 15693
Visual Indicator: Red, green, or amber LED
Primary Function: Electronic access control credential
Application: Commercial electronic access control and credential authentication
OEM Part: Yes

$460.00
$322.00
minus minus

Catalogs

Frequently Asked Questions

What is Schlage MT15-485?
The Schlage MT15-485 is a wall mount multi-technology reader designed for commercial electronic access control. It supports proximity, smart card, and NFC mobile credentials and provides RS-485 communication for OSDP.
Does the MT15-485 support OSDP?
Yes. The MT15-485 provides RS-485 communication for OSDP.
What credentials does the MT15-485 support?
The MT15-485 supports 125 kHz proximity credentials, 13.56 MHz smart credentials, and NFC-enabled mobile credentials.
Where can the MT15-485 be installed?
The MT15-485 is designed for wall mounting over a single-gang junction box and is specified for interior and exterior environments. It can be installed on both metal and non-metal surfaces.
Why choose a genuine Schlage MT15-485?
A genuine Schlage MT15-485 provides the specified Schlage reader model and RS-485 configuration, helping ensure that the purchased reader matches the intended product configuration.
