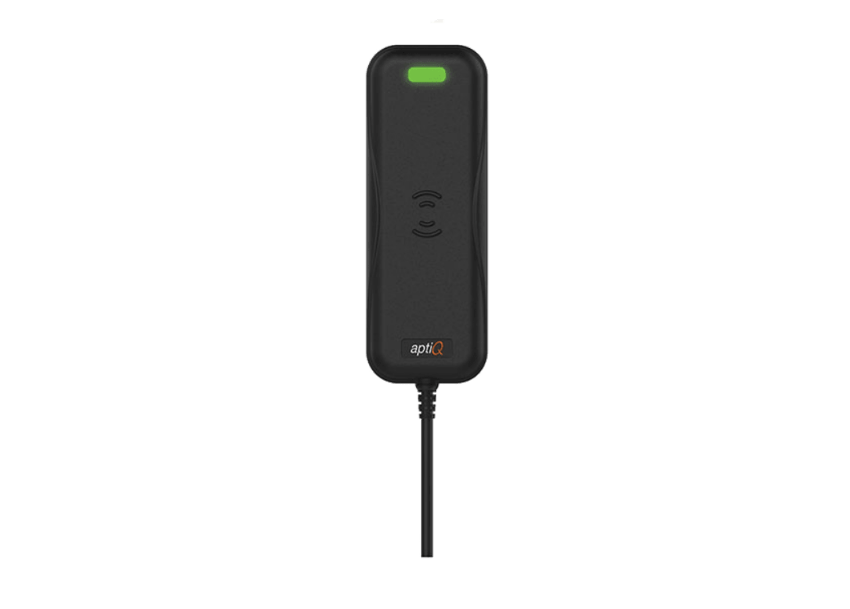

Schlage MT20 USB Credential Enrollment Reader

Schlage MT20 USB Credential Enrollment Reader

Schlage

SKU: Schlage-MT20

Schlage MT20 USB Credential Enrollment Reader

In stock

Schlage MT20 is a USB-connected multi-technology enrollment reader used to enroll proximity, smart, PIV, and other supported credentials into compatible access control software.

Schlage MT20 is a USB multi-technology credential enrollment reader designed to simplify credential enrollment for commercial electronic access control systems. It connects directly to a computer through USB for power and communication and transfers credential data to the selected software field.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: CRM2
Product Type: USB Credential Enrollment Reader
Reader Type: USB
Credential Technology: Smart and Proximity
Bit Formats Recognized: 26A, 32X, 34N, 34S, 35C, 37X, 37H, 40X
Technologies supported

  • Schlage Proximity
  • HID® Proximity
  • GE/CASI ProxLite®
  • AWID® Proximity
  • LenelProx®
  • Schlage MIFARE Classic Secure Sector
  • Schlage MIFARE Plus Secure Sector
  • Schlage MIFARE DESFire EV1 or EV2 with PACSA Secure
  • Sector
  • DESFire® CSN
  • HID iClass® CSN
  • Inside Contactless PicoTag® CSN
  • ST Microelectronics® CSN
  • Texas Instruments Tag-It® Serial Number
  • Phillips I-Code® CSN

Physical Dimension: 5.56" L x 2.00" W x .695" H
Interface: USB
Primary Function: Credential enrollment
Application: Commercial electronic access control credential enrollment
OEM Part: Yes
Warranty: One year for material/workmanship and defects

$898.00
$628.60
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage MT20 used for?
The MT20 is used to enroll supported proximity, smart, PIV, and other compatible credentials into access control software.
How does the Schlage MT20 connect to a computer?
The MT20 connects through USB, which provides both power and communication.
Is the MT20 compatible with Schlage Express?
Yes. The MT20 supports an output configuration for use with Schlage Express software.
Does the MT20 read proximity and smart credentials?
Yes. The MT20 supports 125 kHz proximity and 13.56 MHz smart credential technologies, including supported Schlage credentials.
Is this a genuine Schlage OEM replacement part?
Yes. Schlage MT20 is an OEM Schlage multi-technology credential enrollment reader.
