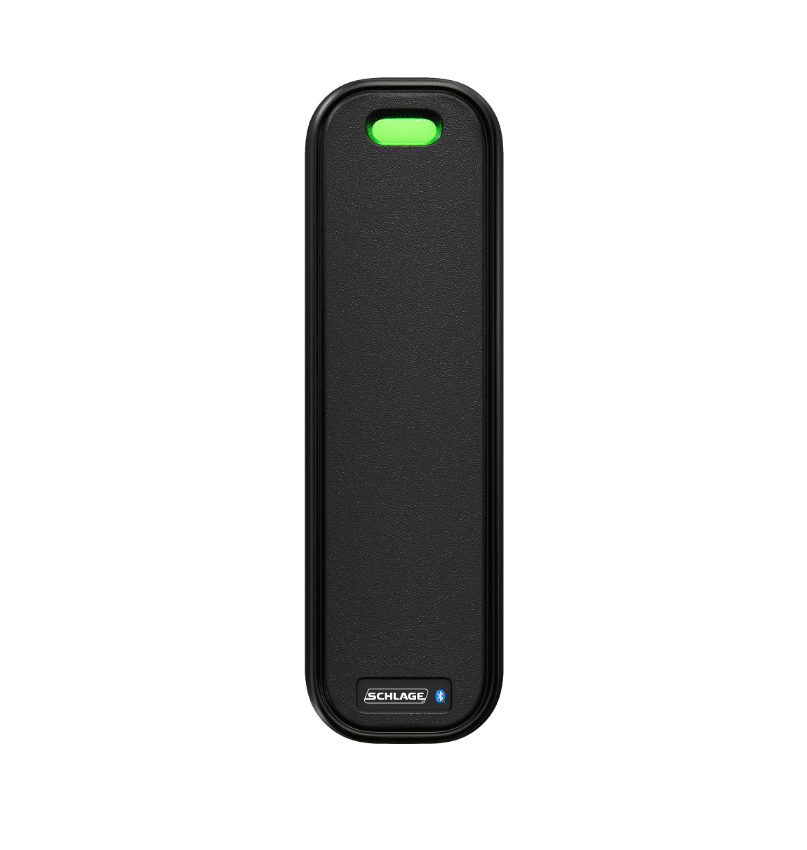

Schlage MTB11 Mullion Mount Multi-Technology Reader

Schlage MTB11 Mobile Enabled Multi-Technology Mullion Reader

Schlage

SKU: Schlage-MTB11

Schlage MTB11 Mullion Mount Multi-Technology Reader

In stock

The Schlage MT11-485 is a mullion-mount multi-technology reader for commercial electronic access control applications, supporting multiple credential technologies in a compact reader design.

Schlage MTB11 is a mobile-enabled multi-technology mullion reader designed for electronic access control applications. It supports Schlage Mobile Bluetooth Credentials, NFC mobile credentials, 13.56 MHz smart credentials, and 125 kHz proximity credentials. It supports Schlage MIFARE Classic and MIFARE DESFire EV1, EV2, and EV3 smart credentials, along with supported proximity and card serial number credentials.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: MTB11
Product Type: Mobile Enabled Multi-Technology Mullion Reader
Mounting Style: Mullion
Supported Technologies:

  • Bluetooth Low Energy (BLE)
  • Wallet-Based NFC
  • 13.56 MHz smart
  • 125 kHz proximity

System Interface:

  • Wiegand
  • Clock & Data
  • Open Supervised Device Protocol (OSDP)
  • RS-485 capability (Optional)

Power: 5-24 VDC
Dimensions: 5.91" H × 1.72" W × 0.81" D
Material: PBT Polymer
Standards: ISO 14443A, ISO 15693
Visual Indicator: Red, green, or amber LED
Primary Function: Electronic access control credential
Application: Commercial electronic access control and credential authentication
OEM Part: Yes

$460.00
$322.00
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage MTB11?
The MTB11 is a mobile-enabled multi-technology mullion reader for electronic access control.
What credential technologies does the MTB11 support?
It supports Bluetooth Low Energy, NFC, 13.56 MHz smart credentials, and 125 kHz proximity credentials.
What communication interfaces are available on the MTB11?
The reader supports Wiegand, Clock & Data, and OSDP, with optional RS-485 capability.
Can the MTB11 be installed outdoors?
Yes. The MTB11 accommodates interior and exterior installation environments and carries an IP65 rating.
Is the Schlage MTB11 an OEM product?
Yes. The Schlage MTB11 is a genuine Schlage product designed as a Mullion Mount Mobile Enabled Multi-Technology Reader.
