Picture of Schlage

SKU: MTK15-485

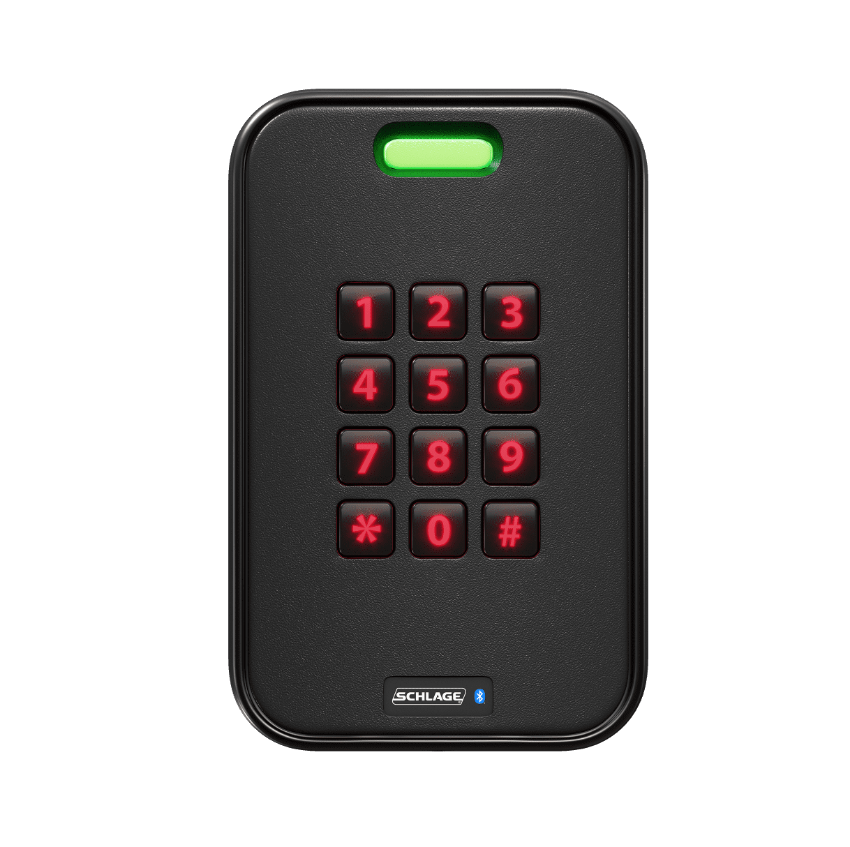

Schlage MTK15-485 Wall Mount Keypad Multi-Technology Reader

Schlage MTK15-485 Wall Mount Keypad Multi-Technology Reader

Schlage

SKU: MTK15-485

Schlage MTK15-485 Wall Mount Keypad Multi-Technology Reader

In stock

The Schlage MTK15-485 is a wall mount keypad multi-technology reader that combines keypad authentication with proximity, smart credential, and NFC mobile credential reading.

Schlage MTK15-485 is a wall mount keypad multi-technology reader designed for commercial electronic access control. It combines a keypad with 125 kHz proximity and 13.56 MHz smart credential technologies, along with NFC mobile credential support. The reader supports Schlage MIFARE Classic and MIFARE DESFire EV1, EV2, and EV3 credentials, selected CSN credentials, and multiple proximity credential technologies.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: MTK15-485
Product Type: Multi-Technology Mullion Reader
Mounting Style: Single Gang
Supported Technologies:

  • Bluetooth Low Energy (BLE)
  • NFC
  • 13.56 MHz smart
  • 125 kHz proximity

System Interface:

  • Open Supervised Device Protocol (OSDP)
  • RS-485 capability
  • Wiegand
  • Clock & Data

Power: 5–16 VDC
Dimensions: 5.1" H × 3.25" W × 0.76" D
Material: PBT Polymer
Standards: ISO 14443A, ISO 15693
Visual Indicator: Red, green, or amber LED
Primary Function: Electronic access control credential reading and keypad authentication
Application: Commercial electronic access control and credential authentication
OEM Part: Yes

$728.00
$509.60
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage MTK15-485?
The Schlage MTK15-485 is a wall-mounted, single-gang multi-technology reader with an integrated keypad for commercial electronic access control.
What credentials does the MTK15-485 support?
It supports Schlage proximity, HID proximity, GE/CASI ProxLite, AWID, LenelProx, Schlage MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, selected CSN credentials, and Schlage NFC Mobile credentials.
Does the MTK15-485 support RS-485?
Yes. The "-485" designation identifies the RS-485 version of the MTK15 reader. The reader also supports Wiegand, Clock & Data, and OSDP interfaces.
Where can the MTK15-485 be installed?
The MTK15-485 is designed for single-gang wall mounting and accommodates interior, exterior, metal, and non-metal installation environments.
Why Choose a Genuine Schlage MTK15-485?
A genuine Schlage MTK15-485 provides the specified Schlage reader design and credential technology in the correct OEM configuration, helping ensure you receive the intended replacement part for your access control system.
