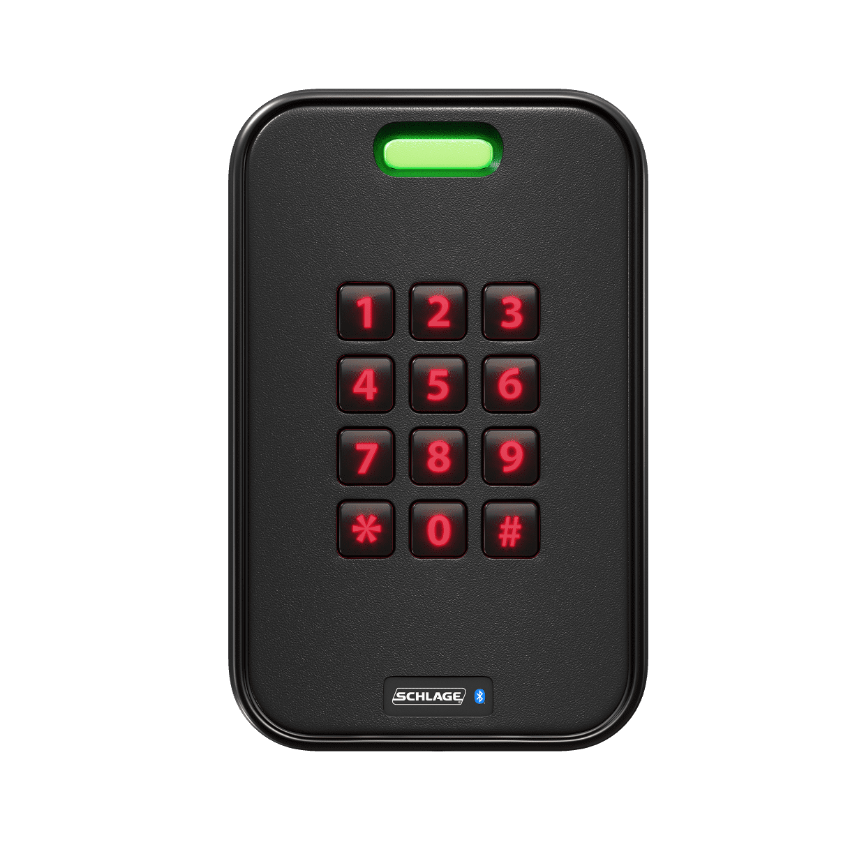

Schlage MTKB15 is a wall mount reader with an integrated keypad that combines multiple credential technologies in a single access control device. It supports 125 kHz proximity, 13.56 MHz smart, 2.4 GHz Bluetooth Low Energy, and NFC credentials, along with keypad-based authentication. The reader supports Schlage Mobile Bluetooth Credentials, NFC mobile credentials, MIFARE Classic, and MIFARE DESFire EV1, EV2, and EV3 credentials.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: MTKB15
Product Type: Mobile Enabled Multi-Technology Mullion Reader
Mounting Style: Single Gang
Supported Technologies:

• Bluetooth Low Energy (BLE)
• NFC
• 13.56 MHz smart
• 125 kHz proximity

System Interface:

• Wiegand
• Clock & Data
• OSDP
• RS-485 capability (Optional)

Power: 5–28 VDC
Dimensions: 5.1" H × 3.25" W × 0.76" D
Material: PBT Polymer
Standards: ISO 14443A, ISO 15693
Visual Indicator: Red, green, or amber LED
Primary Function: Electronic access control credential reading and keypad authentication
Application: Commercial electronic access control and credential authentication
OEM Part: Yes

• Lifetime — Smart Readers & Digital Credentials: Schlage commercial multi-technology smart readers, proximity readers, intelligent credentials, smart cards, key fobs, and mobile access hardware carry a limited lifetime warranty against manufacturing defects for the original user.
• 3 Years — High-Security Smart Locks & Commercial Hardware: Schlage commercial electrified cylindrical and mortise locks, electronic trim packages, and electrified emergency exit lock trims carry a 3-year warranty from the date of factory shipment.
• 3 Years — Power Supplies & System Controllers: Schlage electronics power supplies, integrated power controllers, option boards, and heavy-duty system logic controllers carry a 3-year warranty from the date of manufacture.
• 3 Years — Premium Connected Home & Smart Locks: Schlage premium residential smart locks and connected home devices carry a 3-year limited electronics warranty from the original retail date of purchase.
• 1 Year — Electronic Keypad Locks & Installation Adapters: Schlage digital electronic keypad deadbolts, lever locks, quick-connect installation accessories, electronic pigtail converters, and adapter cables carry a 1-year limited electronics warranty.
