Picture of Schlage

SKU: MTMS15-485

Schlage MTMS15-485 Wall Mount Magnetic Stripe Reader

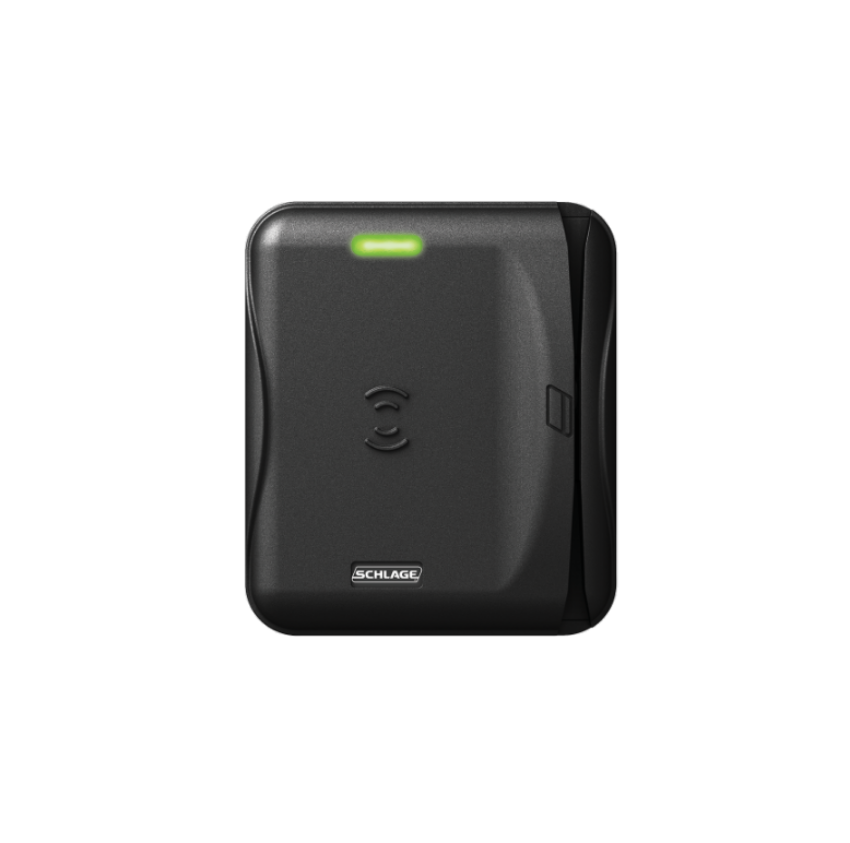

Schlage MTMS15-485 wall mount magnetic stripe reader

Schlage

SKU: MTMS15-485

Schlage MTMS15-485 Wall Mount Magnetic Stripe Reader

In stock

Schlage MTMS15-485 is a multi-technology magnetic stripe reader designed for electronic access control.

Schlage MTMS15-485 is a multi-technology reader with magnetic stripe capability for single-gang installation. It reads magnetic stripe, 125 kHz proximity, 13.56 MHz smart credentials, and compatible NFC mobile credentials. The MTMS15-485 is the RS-485 version of the MTMS15 reader and supports OSDP multi-drop communication. Magnetic stripe Track 2 is the default configuration, while Tracks 1 and 3 can be configured.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: MTMS15-485
Product Type: Multi-Technology Magnetic Stripe Reader
Mounting Style: Single Gang
Magnetic Stripe: Track 2 default; Tracks 1 and 3 configurable
Supported Technologies:

  • NFC-enabled smart devices / NFC mobile credentials
  • 13.56 MHz smart
  • 125 kHz proximity

System Interface:

  • Open Supervised Device Protocol (OSDP)
  • RS-485 capability
  • Wiegand
  • Clock & Data

Power: 5–16 VDC
Dimensions: 5.17" H x 4.43" W x 1.15" D
Material: PBT Polymer
Standards: ISO 14443A, ISO 15693, ISO 14443B
Visual Indicator: Red, green, or amber LED
Primary Function: Electronic access control credential reading
Application: Commercial electronic access control and credential authentication
OEM Part: Yes

$978.00
$684.60
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage MTMS15-485?
The MTMS15-485 is a Schlage multi-technology reader with magnetic stripe capability and RS-485 communication.
Is the MTMS15-485 a wall mount reader?
Yes. The Schlage MTMS15-485 is designed for single-gang installation and is classified as a wall-mounted reader.
What credentials does the MTMS15-485 read?
It reads magnetic stripe, 125 kHz proximity, 13.56 MHz smart credentials, and compatible NFC mobile credentials.
Is the MTMS15-485 an OEM Schlage reader?
Yes. The MTMS15-485 is a genuine Schlage reader model in the MTMS15 multi-technology magnetic stripe reader family.
Why choose a genuine Schlage MTMS15-485?
A genuine Schlage MTMS15-485 provides the specified multi-technology magnetic stripe reader configuration with single-gang mounting, magnetic stripe reading, and access control communication interfaces.
