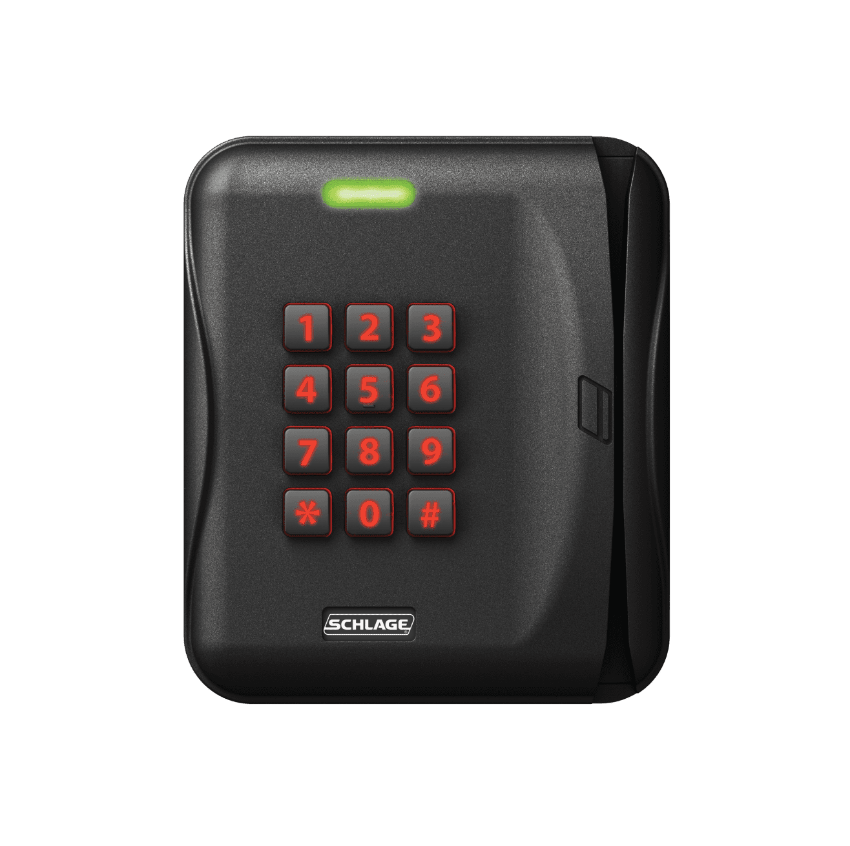

Schlage MTMSK15-485 Wall Mount Magnetic Stripe Reader with Keypad

Schlage MTMSK15-485 Wall Mount Magnetic Stripe Reader with Keypad

Schlage

SKU: MTMSK15-485

Schlage MTMSK15-485 Wall Mount Magnetic Stripe Reader with Keypad

Available (3 - 4 Weeks)

The Schlage MTMSK15-485 is a wall-mounted multi-technology reader with magnetic stripe and keypad functionality for commercial electronic access control applications.

Schlage MTMSK15-485 is a multi-technology reader with magnetic stripe and keypad designed for wall mounting over a single-gang junction box. It reads 125 kHz proximity credentials, 13.56 MHz smart credentials, and magnetic stripe cards while providing keypad functionality. The reader supports Schlage MIFARE Classic and MIFARE DESFire credentials, NFC-enabled Schlage mobile credentials, and compatible credentials from other manufacturers.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: MTMSK15-485
Product Type: Multi-Technology Reader with Magnetic Stripe and Keypad
Mounting Style: Single Gang
Magnetic Stripe: Track 2 default; Tracks 1 and 3 configurable
Supported Technologies:

  • NFC-enabled smart devices / NFC mobile credentials
  • 13.56 MHz smart
  • 125 kHz proximity

System Interface:

  • Open Supervised Device Protocol (OSDP)
  • RS-485 capability
  • Wiegand
  • Clock & Data

Power: 5–16 VDC
Dimensions: 5.17" H x 4.43" W x 1.15" D
Material: PBT Polymer
Standards: ISO 14443A, ISO 15693, ISO 14443B
Visual Indicator: Red, green, or amber LED
Primary Function: Electronic access control credential reading
Application: Commercial electronic access control and credential authentication
OEM Part: Yes

$1,322.00
$925.40
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage MTMSK15-485?
It is a wall-mounted multi-technology reader with magnetic stripe and keypad functionality.
Is the MTMSK15-485 designed for wall mounting?
Yes. The MTMSK15 series is a single-gang reader designed to mount on a wall over a single-gang junction box.
What credentials does the MTMSK15-485 support?
It supports magnetic stripe, 125 kHz proximity, 13.56 MHz smart credentials, and NFC-enabled Schlage mobile credentials.
Is the MTMSK15-485 an OEM Schlage reader?
Yes. The MTMSK15-485 is an official Schlage reader model.
Why Choose Genuine Schlage MTMSK15-485?
A genuine Schlage MTMSK15-485 provides the specified magnetic stripe, keypad, proximity, smart credential, NFC mobile credential, and RS-485 capabilities of the Schlage reader model.
