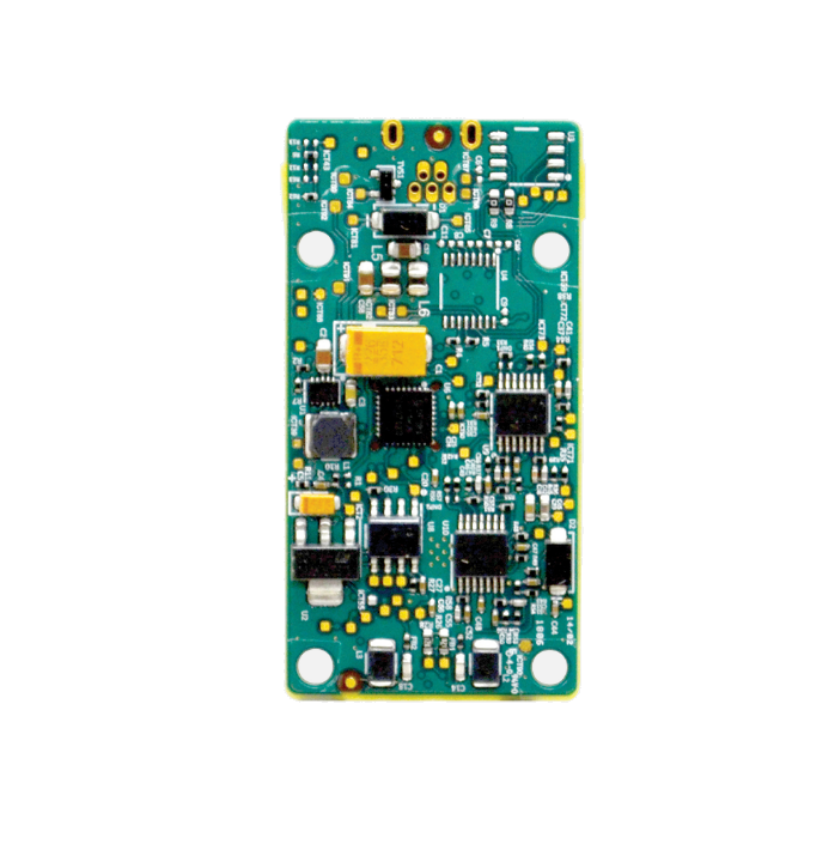

Schlage OEM200-TTL OEM200 Module

Schlage OEM200-TTL OEM200 Module

Schlage

SKU: OEM200-TTL

Schlage OEM200-TTL OEM200 Module

Available (3 - 4 Weeks)

Schlage OEM200-TTL is an OEM200 RFID module designed for embedding into third-party products to support RFID technology through Wiegand or UART-TTL communication.

Schlage OEM200-TTL is an OEM200 Module designed to be embedded into third-party products that require RFID technology. The module supports multiple 125 kHz and 13.56 MHz credential technologies.

We are your trusted source for commercial door hardware, electronic access control products, and OEM replacement parts.

Manufacturer: Schlage
Part Number: OEM200-TTL
Product Type: OEM200 Module
Main Board Dimensions: 1.11" × 2.165" × 0.39"
Input Voltage: 5–16 V
Average System Current: 50 mA
Maximum System Current: 180 mA
Primary Function: RFID credential reading module
Application: Embedded RFID technology for third-party products
OEM Part: Yes

Supported Credential Technologies

  • Schlage and XceedID proximity
  • GE/CASI ProxLite®
  • HID® Proximity
  • AWID® Proximity
  • LENEL® Proximity
  • Schlage MIFARE Classic
  • MIFARE DESFire EV1 with PACSA enabled
  • MIFARE Plus
  • Schlage NFC mobile credentials
  • PIV with FASC-N output options
  • PIV-1 with GUID output options
  • CSN for HID iCLASS®, ISO 15693, and ISO 14443
$241.00
$168.70
minus minus

Catalogs

Frequently Asked Questions

What is the Schlage OEM200-TTL?
The OEM200-TTL is an OEM200 RFID module designed to be embedded into third-party products.
What communication methods does the OEM200-TTL support?
It supports Wiegand and UART-TTL communication.
What RFID frequencies does the OEM200-TTL support?
The module supports both 125 kHz and 13.56 MHz technologies.
Does the OEM200-TTL include the 80 mm antenna?
No. The 80 mm multi-technology antenna is ANTENNA 80MTC.
Is the OEM200-TTL a Schlage OEM part?
Yes. It is a genuine Schlage OEM part.
