Device lengths:
• 3' Device, 2'4' to 3' (711mm to 914mm) Door size
• 4' Device, 2'10" to 4' (864mm to 1219mm) Door size
Device centerline from finished floor:
• 39 13⁄16" (1011mm)
• 39 11⁄16" (1008mm) with mullion
Center case: 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)
Mechanism case: 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

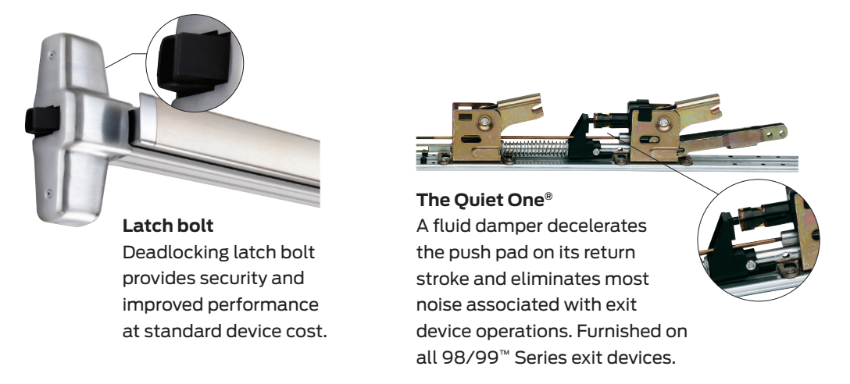

Latch Bolt: 3/4" (19mm) throw latch bolt
Strike: Device is furnished with standard 299 strike in dull black finish
Dogging: Hex key dogging Comes standard on 98/99 exit devices
Projection:
• Pushbar neutral  - 3 13/16" (97mm)
• Pushbar depressed - 3 1/16" (78mm)
Latch bolt Deadlocking: 3⁄4" (19mm) throw
Handing: Non handed

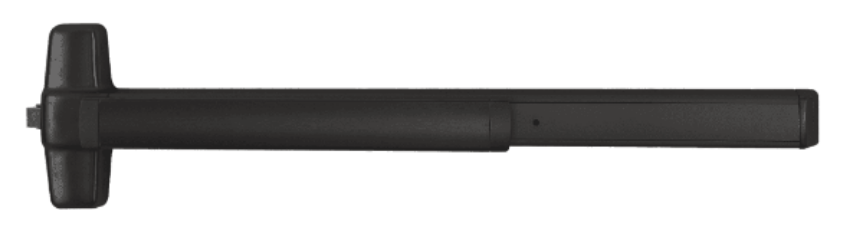

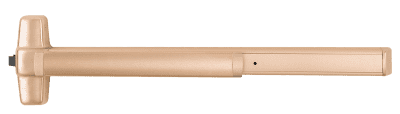

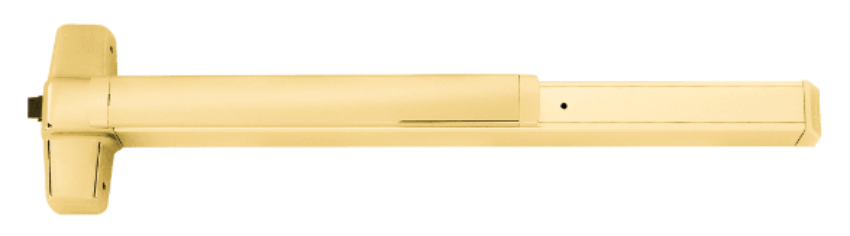

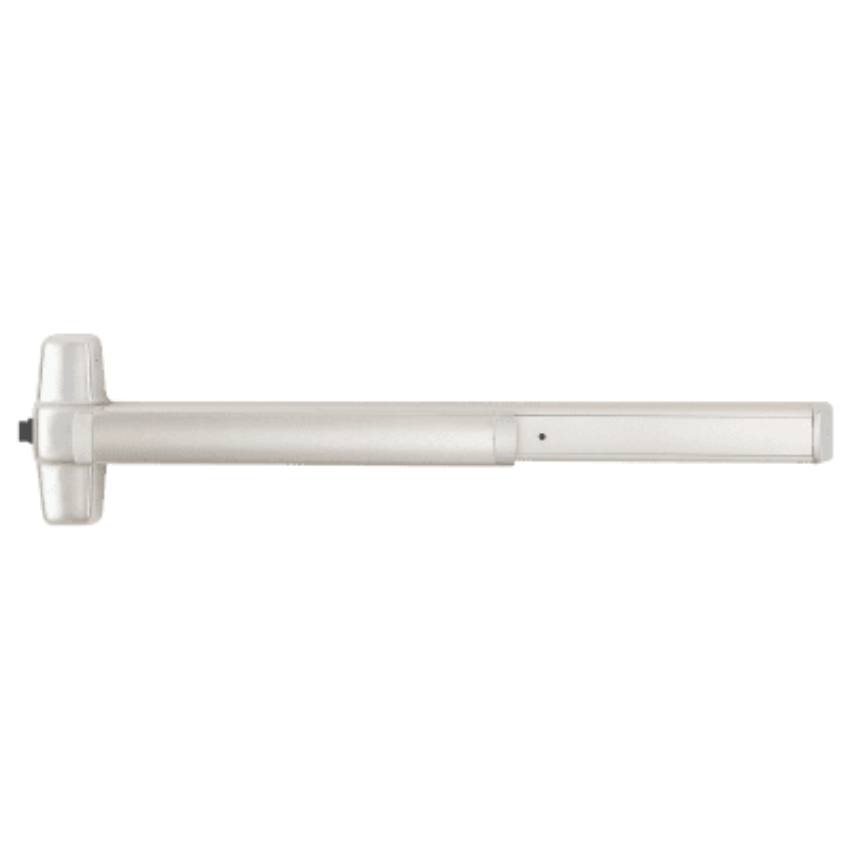

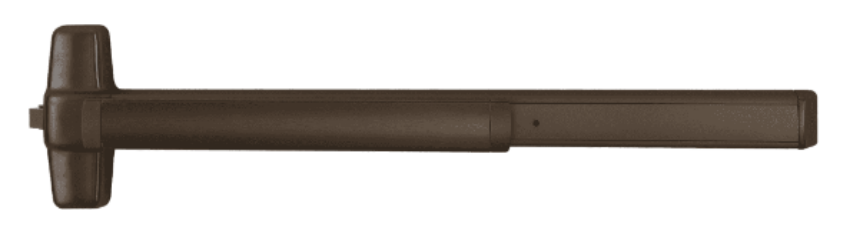

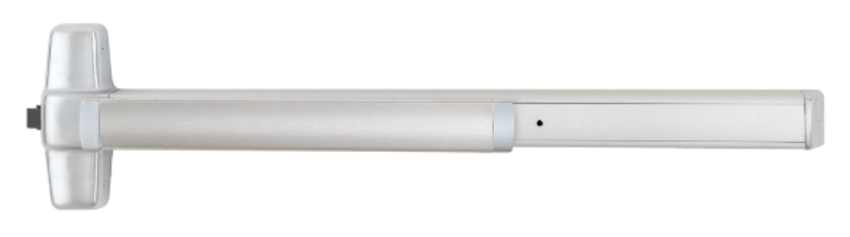

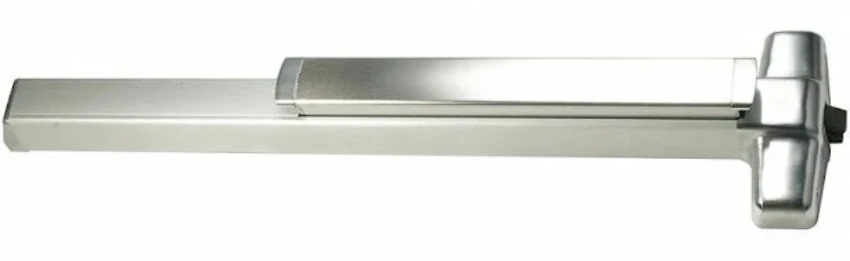

Finishes: 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only)
Fasteners and sex bolts (SNB): Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)
